Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 59

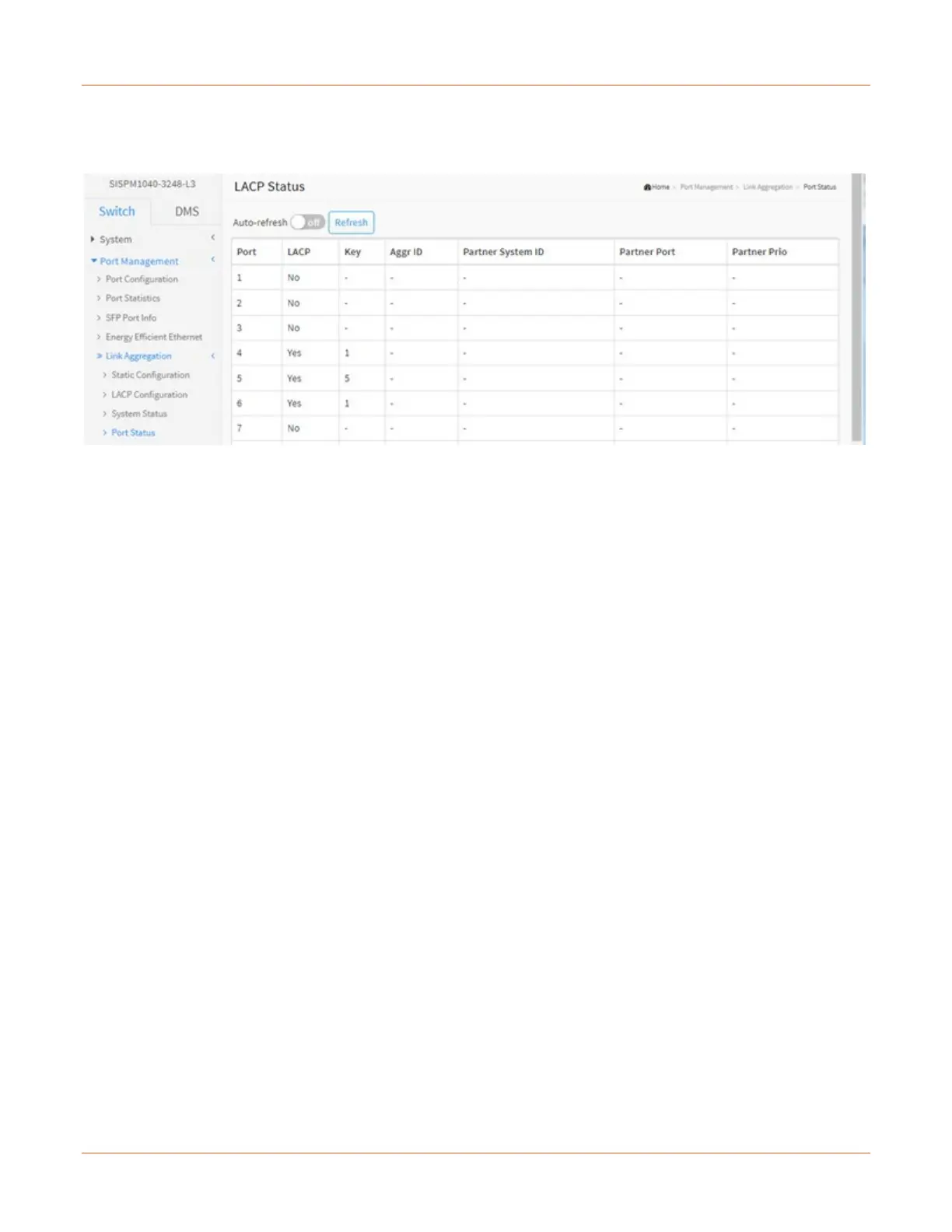

Port Management > Link Aggregation > Port Status
This page provides a status overview for LACP status for all ports.
Port: The switch port number.
LACP: 'Yes' means that LACP is enabled and the port link is up. 'No' means that LACP is not enabled or that the
port link is down. 'Backup' means that the port could not join the aggregation group but will join if other port
leaves. Meanwhile it's LACP status is disabled.
Key: The key assigned to this port. Only ports with the same key can aggregate together.
Aggr ID: The Aggregation ID assigned to this aggregation group. IDs 1 and 2 are GLAGs while IDs 3-14 are
LLAGs.
Partner System ID: The partner's System ID (MAC address).
Partner Port: The partner's port number connected to this port.
Partner Prio: The partner's port priority.
Buttons
Auto-refresh: Automatic refresh occurs every 3 seconds.
Refresh: Click to refresh the page immediately.
