QoS Control List
QCE Configuration
This page shows the QoS Control List (QCL), which is made up of QCEs. Each row describes a QCE that is
defined. The maximum number of QCEs is 256 per switch.
A QoS Control List is a list of QCEs. Every frame is compared against the QCEs in the list. The comparison starts
with the first entry in the list and continues until there is a match between the frame and the key parameters or the
end of the list is reached. If there is a match between the frame and the keys, the frame will be reclassified
according to the action parameters. A QCE is a combination of keys and actions. The keys can be configured to
match specific parts of a frame and the actions can be configured to override the default classified values of e.g.,
CoS.

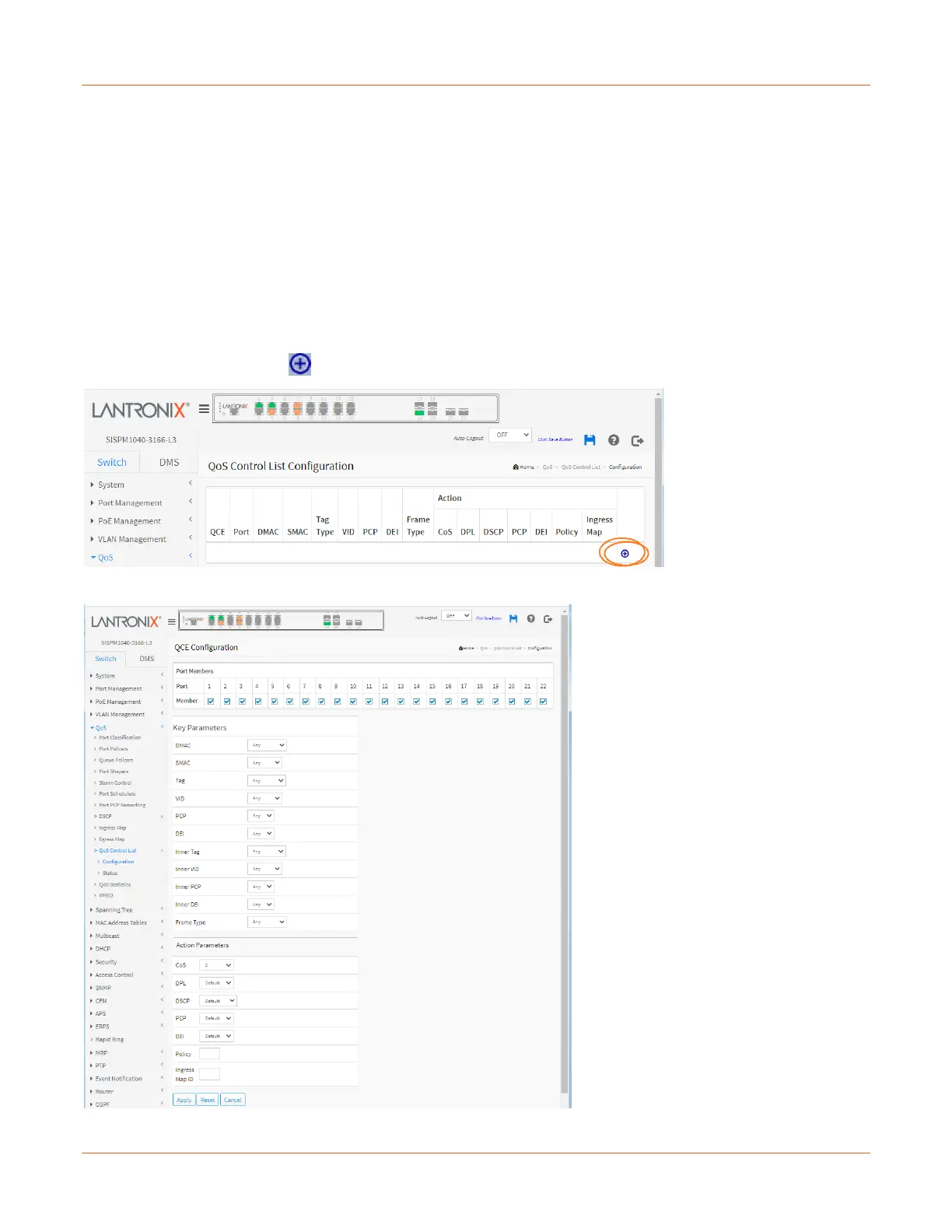

Click on the lowest plus sign ( ) to add a new QCE to the list.
↓ ↓ ↓ ↓
