Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 131

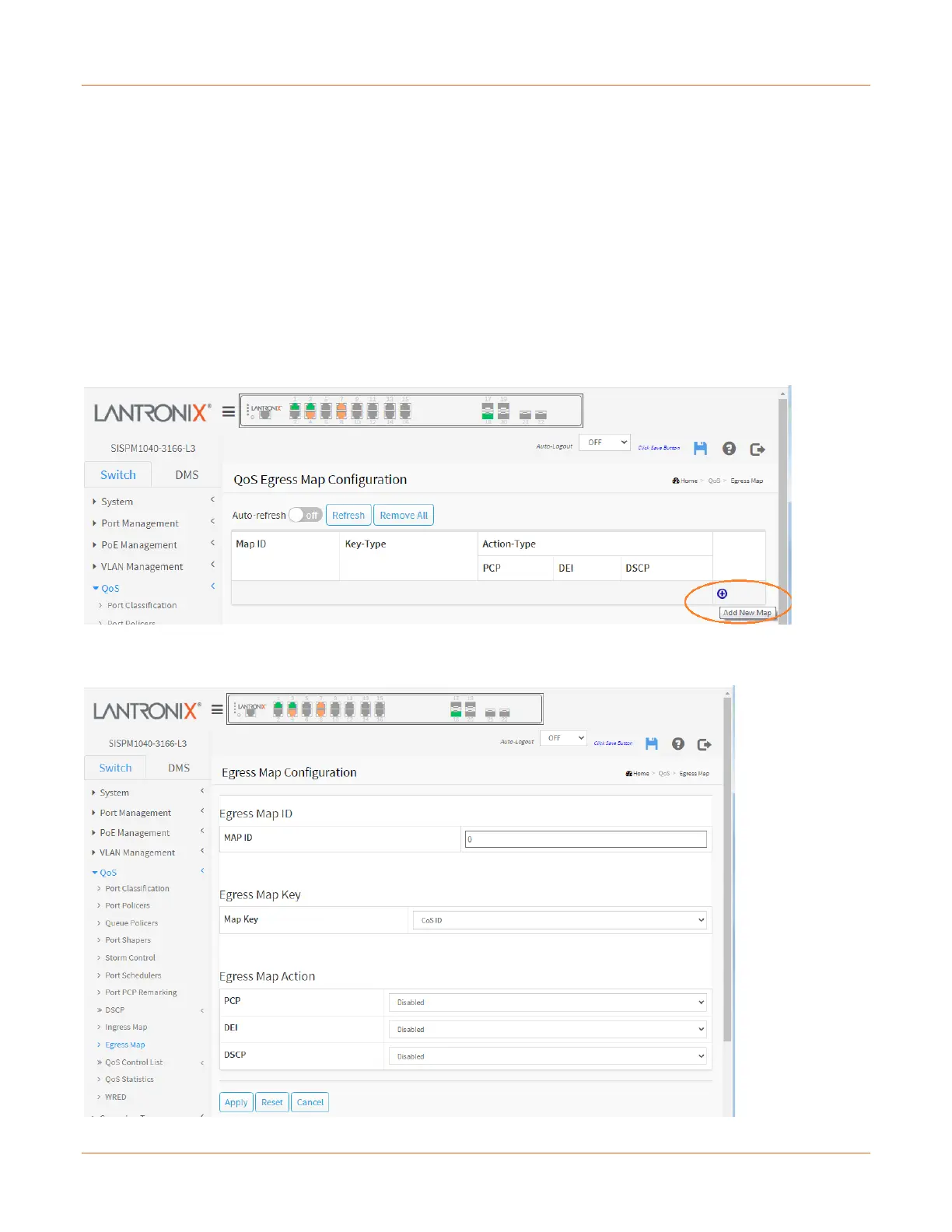

Egress Map
Navigate to QoS > Egress Map to display the QoS Egress Map Configuration page.
This page shows a table of QoS Egress Maps which is made up of individual Map entries. Each entry has a key
and an action. The key indicates which fields of the frame will be mapped to the fields specified by and according
to the action. Each Map can hold a number of map rules, or mappings between possible keys and actions. Which
of those rules will be applied depends on the selection of (Key-Type, Action-Type). Each row describes a user-
defined map. The maximum number of Egress Maps is 512. Each Egress Map uses a number of key-entries in an
internal key mapping table which have 960 key-entries available. The consumption of key-entries by Key Type are
listed as table widthin the Key-Type parameter description below. A new Egress Map can only be defined when
there are sufficient free key-entries.
Note: This is just an overview of the configured Maps. You can add new Maps or edit existing Maps using the
Add/Edit buttons. Click on the lowest plus sign (empty map entry) to add a new Ingress Map to the table.
↓↓↓↓
