OSPF > Status > Area Status

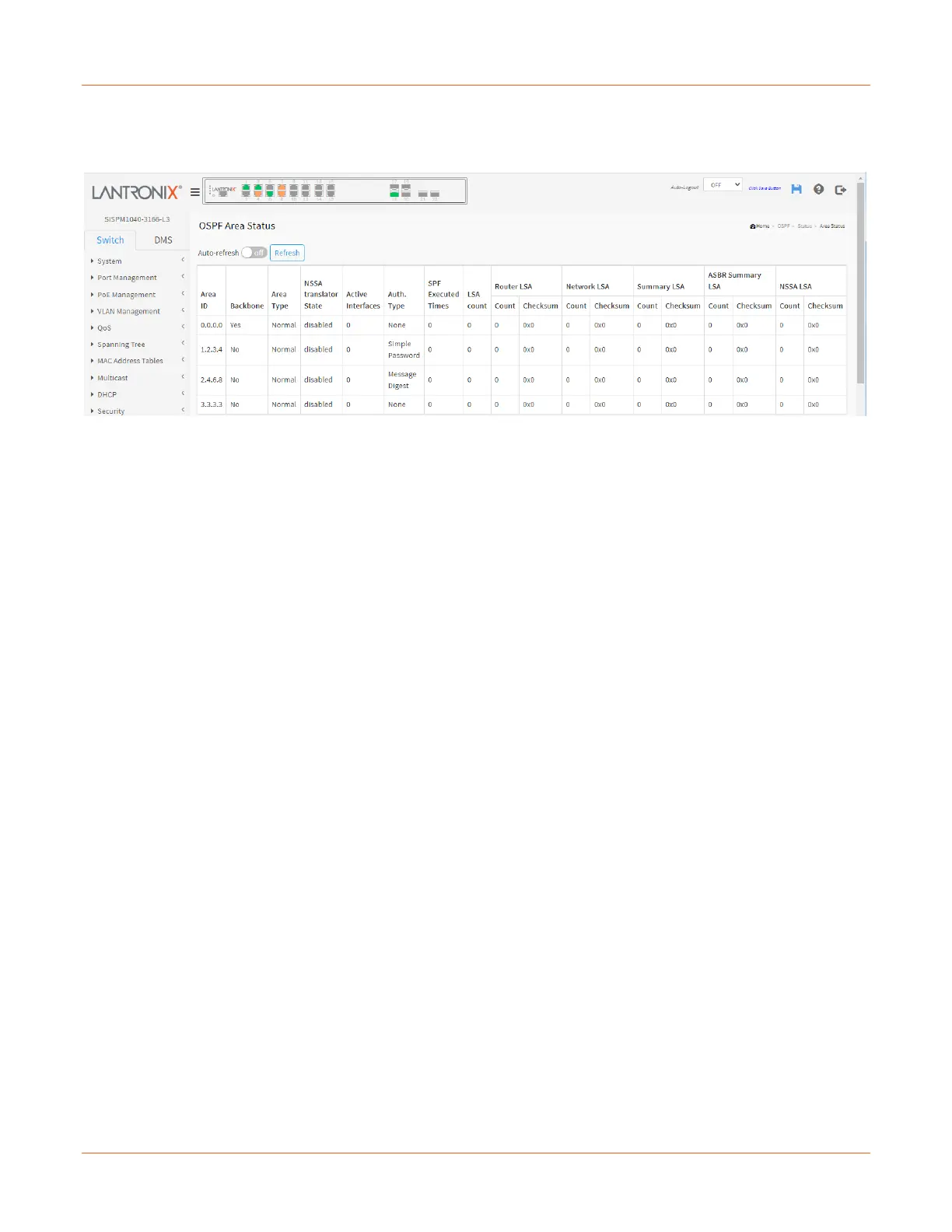

This page displays the OSPF network area status table which provides OSPF network area status information.
Area ID: The Area ID.
Backbone: Indicate if it's backbone area or not.
Area Type: The area type (e.g., Normal, Stub, NSSA).
NSSA translator State: Indicate the current state of the NSSA-ABR translator which the router uses to translate
Type-7 LSAs in the NSSA to Type-5 LSAs in backbone area.
Active Interfaces: Number of active interfaces attached in the area.
Auth. Type: The authentication type in the area (Simple Password, Message Digest or None).
SPF Executed Times: Number of times SPF algorithm has been executed for the particular area.
LSA Count: Number of the total LSAs for the particular area.
Router LSA Count: Number of the router-LSAs (Type-1) of a given type for the particular area.
Router LSA Checksum: The router-LSAs (Type-1) checksum.
Network LSA Count: Number of the network-LSAs (Type-2) of a given type for the particular area.
Network LSA Checksum: The network-LSAs (Type-2) checksum.
Summary LSA Count: Number of the summary-LSAs (Type-3) of a given type for the particular area.
Summary LSA Checksum: The summary-LSAs (Type-3) checksum.
ASBR Summary LSA Count: Number of the ASBR-summary-LSAs (Type-4) of a given type for the particular
area.
ASBR Summary LSA Checksum: The ASBR-summary-LSAs(Type-4) checksum.
NSSA LSA Count: Number of the NSSA LSAs of a given type for the particular area.
NSSA LSA Checksum: The NSSA LSAs checksum.
Buttons
Auto-refresh : Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page immediately.
