Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 302
Dfop: Dfop is "Failure of Protocol defect" and the presence of a defect is indicated by •: no defect, •: defect.
CM: Configuration Mismatch (received APS PDU on working interface within last 17.5 seconds).
PM: Provisioning Mismatch (far and near ends are not using the same mode; bidir only)
NR: No Response (far end hasn't agreed on 'Requested Signal' within 50 ms; bidir only)
TO: Time Out (near end hasn't received a valid APS PDU within last 17.5 seconds; bidir only)
SMAC: Source MAC address of last received APS PDU or all-zeros if no PDU has been received.
TxCnt: Number of APS PDU frames transmitted.
RxCnt, Valid: Number of valid APS PDU frames received on the protect port.
RxCnt, Invalid: Number of invalid APS PDU frames received on the protect port.

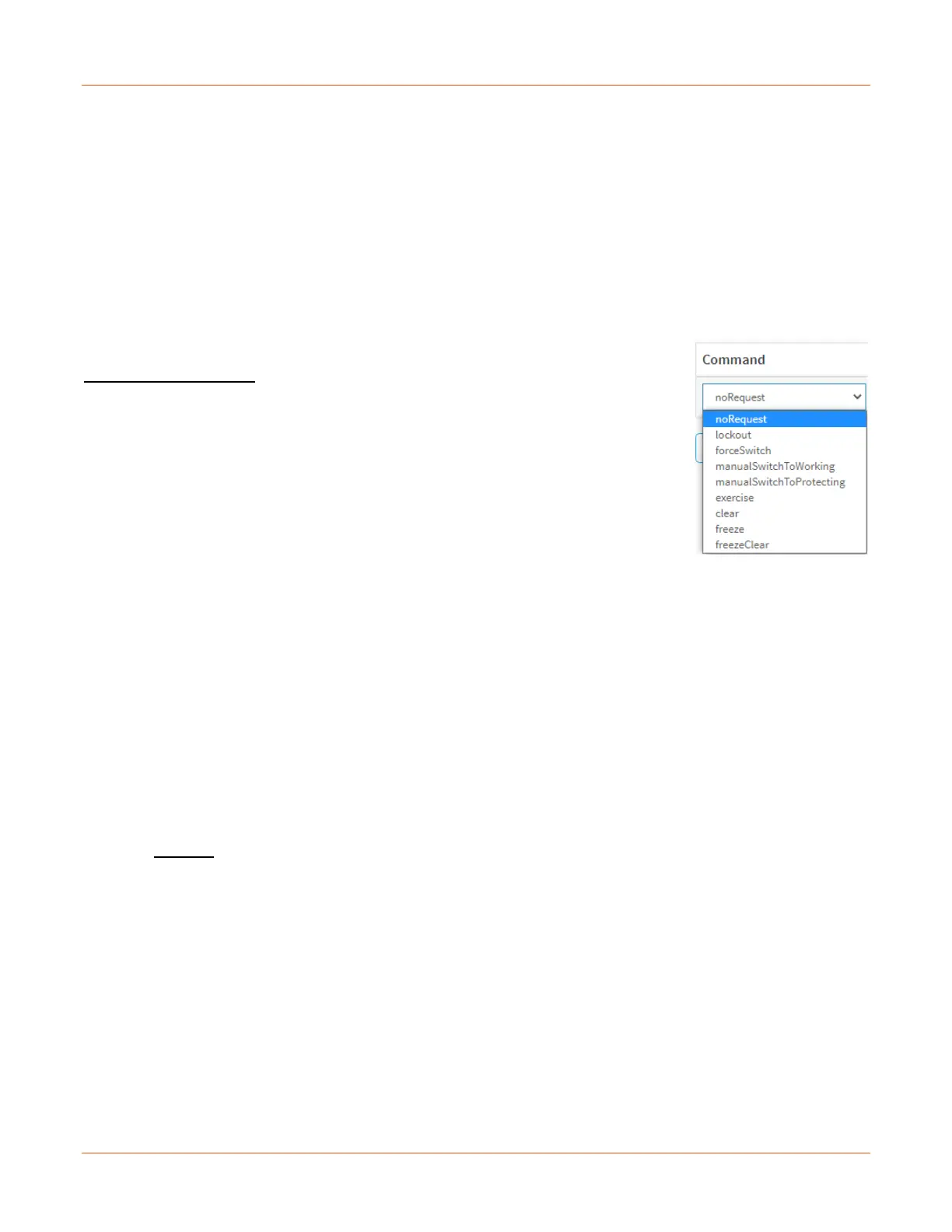

APS Command section: At the dropdown select an APS command:
Command: The selections are described below:
noRequest: There is no active local command on this instance. Issuing this
command has no effect.
clear: Clear a switchover, exercise request and a WTR condition.
forceswitch: Causes a switchover to protect if no lockout is in effect.
manualSwitchToProtecting: Causes a manual signal switchover from the
working path to the protection path whether or not the working path signal is
active.
manualSwitchToWorking: Causes a manual signal switchover from the protection path to the working
path if the protection path signal has not failed.
exercise: Exercise the APS instance. Use “clear” command to clear the request.
freeze: Freezes the state of the APS instance. While in this mode, additional near-end commands,
condition changes, and received APS information are ignored. Use the command "freezeClear" to get out
of this mode.
freezeClear: Use this command to get out of the freeze mode.
lockout: Lockout APS instance of protection. Use command "clear" to clear the request.
Buttons
Reset Counters: Click to reset counters for this APS instance.
Refresh: Click to refresh the page immediately.
Auto-refresh: Click to automatically update page information every 3 seconds. Note: checking the Auto-refresh
checkbox does not refresh the value of the "Command" section.
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Back: Click to go back to webpage from which this was invoked (e.g., the APS Configuration page).
Messages:
JSON RPC Error. (Exercise of the APS protocol is not possible in unidirectional mode)
JSON RPC Error. (Exit freeze mode to enter other local requests)
