Action: Indicates the forwarding action of the ACE.
Permit: Frames matching the ACE may be forwarded and learned.
Deny: Frames matching the ACE are dropped.
Filter: Frames matching the ACE are filtered.
Rate Limiter: Indicates the rate limiter number of the ACE. The allowed range is 1 to 16. When Disabled is
displayed, the rate limiter operation is disabled.
Port Redirect: Indicates the port redirect operation of the ACE. Frames matching the ACE are redirected to the
port number. The allowed values are Disabled or a specific port number. When Disabled is displayed, the port
redirect operation is disabled.
Mirror: Specify the mirror operation of this port. The allowed values are:
Enabled: Frames received on the port are mirrored.
Disabled: Frames received on the port are not mirrored. The default value is "Disabled".
CPU: Forward packet that matched the specific ACE to CPU.
CPU Once: Forward first packet that matched the specific ACE to CPU.
Counter: The counter indicates the number of times the ACE was hit by a frame.
Conflict: Indicates the hardware status of the specific ACE. The specific ACE is not applied to the hardware due
to hardware limitations.
Buttons

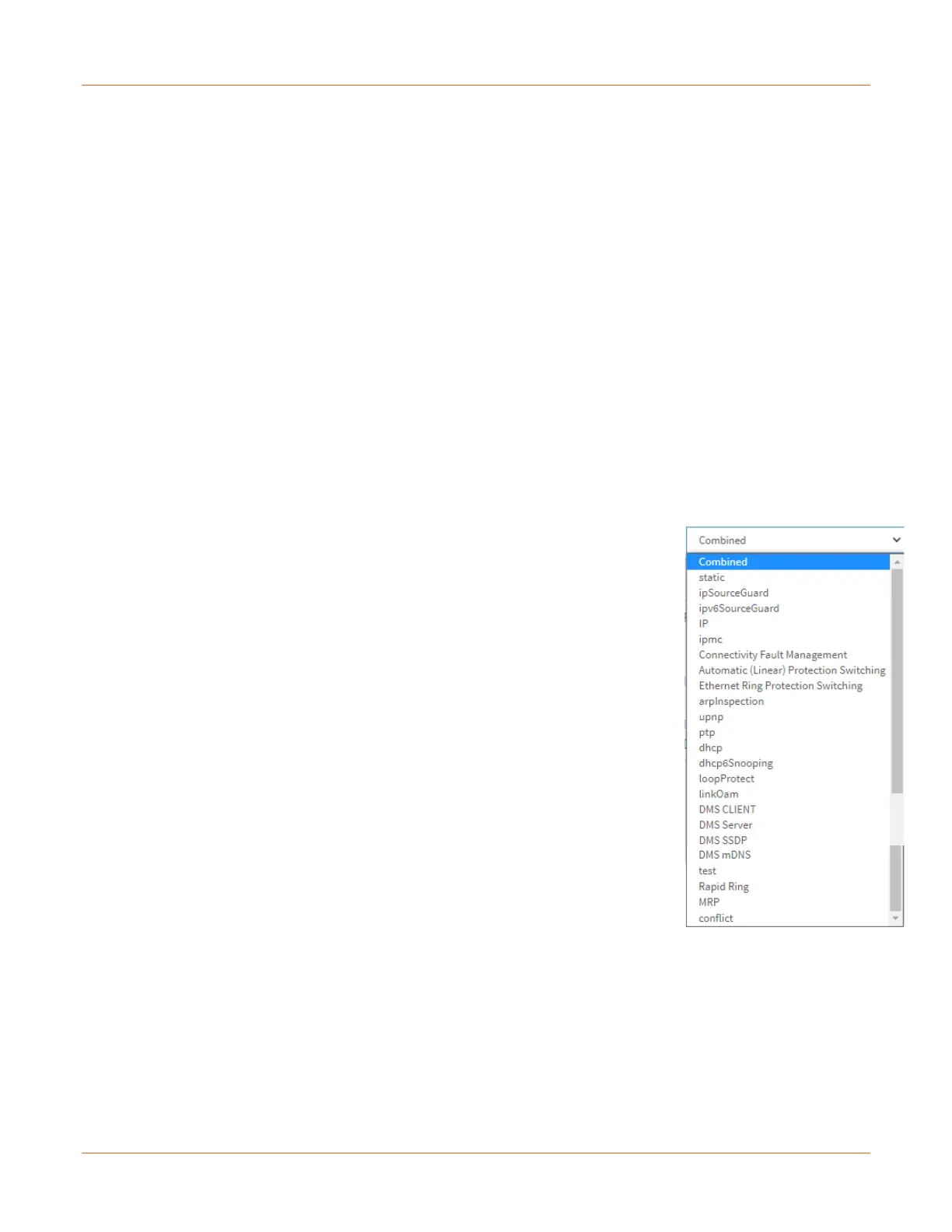

User select box: At the dropdown select which ACL user to display. The selections
are Combined, static, ipSourceGuard, ipv6SourceGuard, IP, ipmc, Connectivity Fault
Management, Automatic (Linear) Protection Switching, Ethernet Ring Protection
Switching, arpinspection, upnp, ptp, dhcp, dhcp6snooping, loopProtect, linkOam,
DMS CLIENT, DMS Server, DMS SSDP, DMS Onvif, DMS mDNS, test, Rapid Ring,
MRP, and conflict.
Auto-refresh: Check this box to refresh the page automatically every 3 seconds.
Refresh: Click to refresh the page.
