Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 321

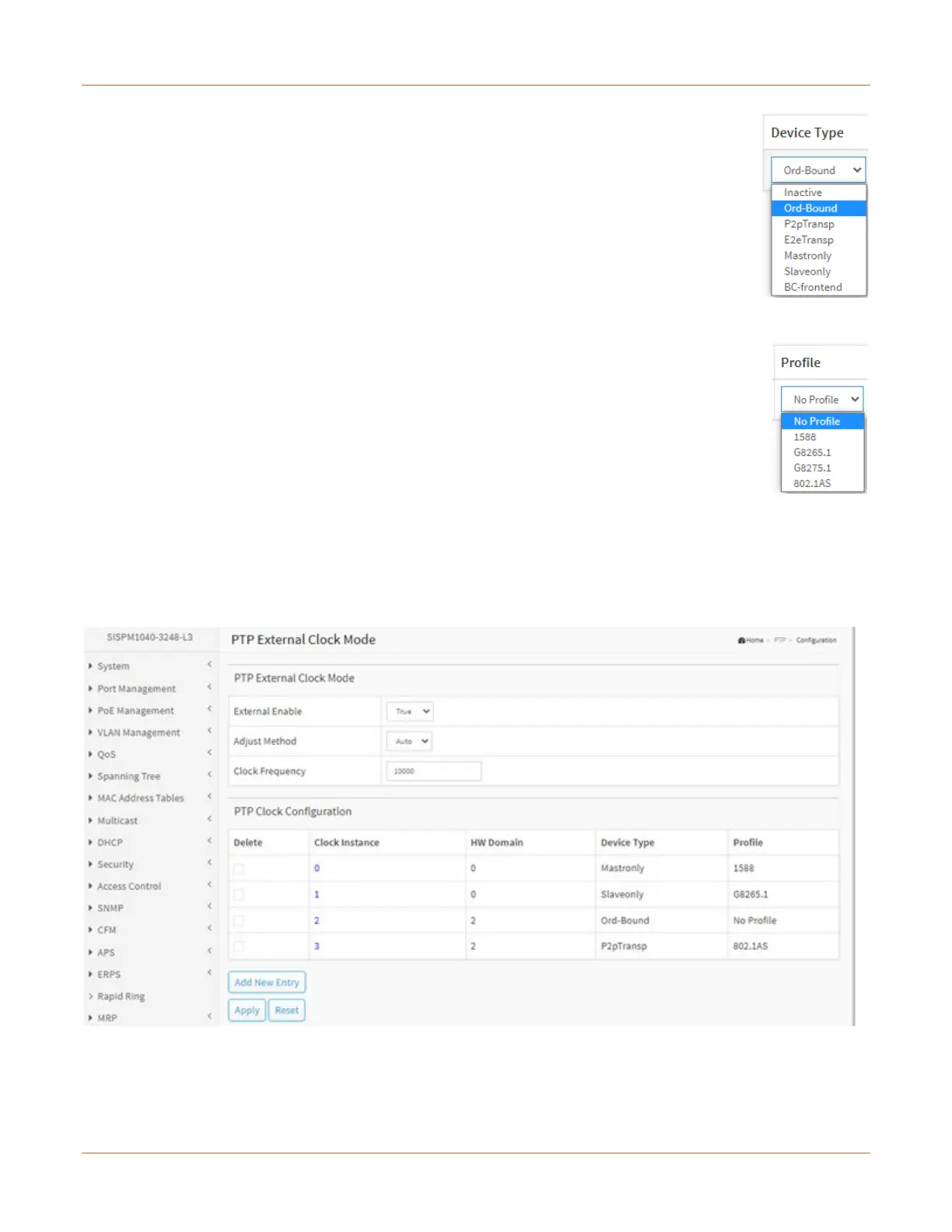

Device Type: Indicates the Type of the Clock Instance. The Device Types are:
Inactive: Clock Instance is not currently active.
Ord-Bound: This clock's Device Type is Ordinary-Boundary Clock (default).
P2p Transp: This clock's Device Type is Peer to Peer Transparent Clock.
E2e Transp: This clock's Device Type is End to End Transparent Clock.
Master Only: This clock's Device Type is Master Only.
Slave Only: c This lock's Device Type is Slave Only.
BC-frontend: This clock's Device Type is Boundary Clock front end.
Profile: Indicates the profile used by the clock. The Profile selections are:
No Profile: Do not use any Profile (default).
1588: Use the IEEE-1588 Profile.
G8265.1: Use the ITU-T G.8265.1 Profile.
G8275.1: Use the ITU-T G.8275.1 Profile.
802.1AS: Use the IEEE 802.1AS Profile. TSN requires switches that are 802.1AS
compliant to allow for priority packet scheduling.
Buttons
Add New Entry: Click to create a new clock instance.
Apply: Click to save the page immediately.
Reset: Click to reset the page immediately.
Example: Clock details with four PTP clock instances (0-3) configured:
