Length: The length (in meters) of the cable pair. The resolution is 3 meters. When Link Status is shown as
follows, the length has different definitions:
1G: The length is the minimum value of 4-pair.
10M/100M: The length is the minimum value of 2-pair.
Link Down: The length is the minimum value of non-zero of 4-pair.
Buttons:
Port select box: At the dropdown select the port to be diagnosed.
Start: Press to run the diagnostics.
Messages:
Cable Diagnostics is running...

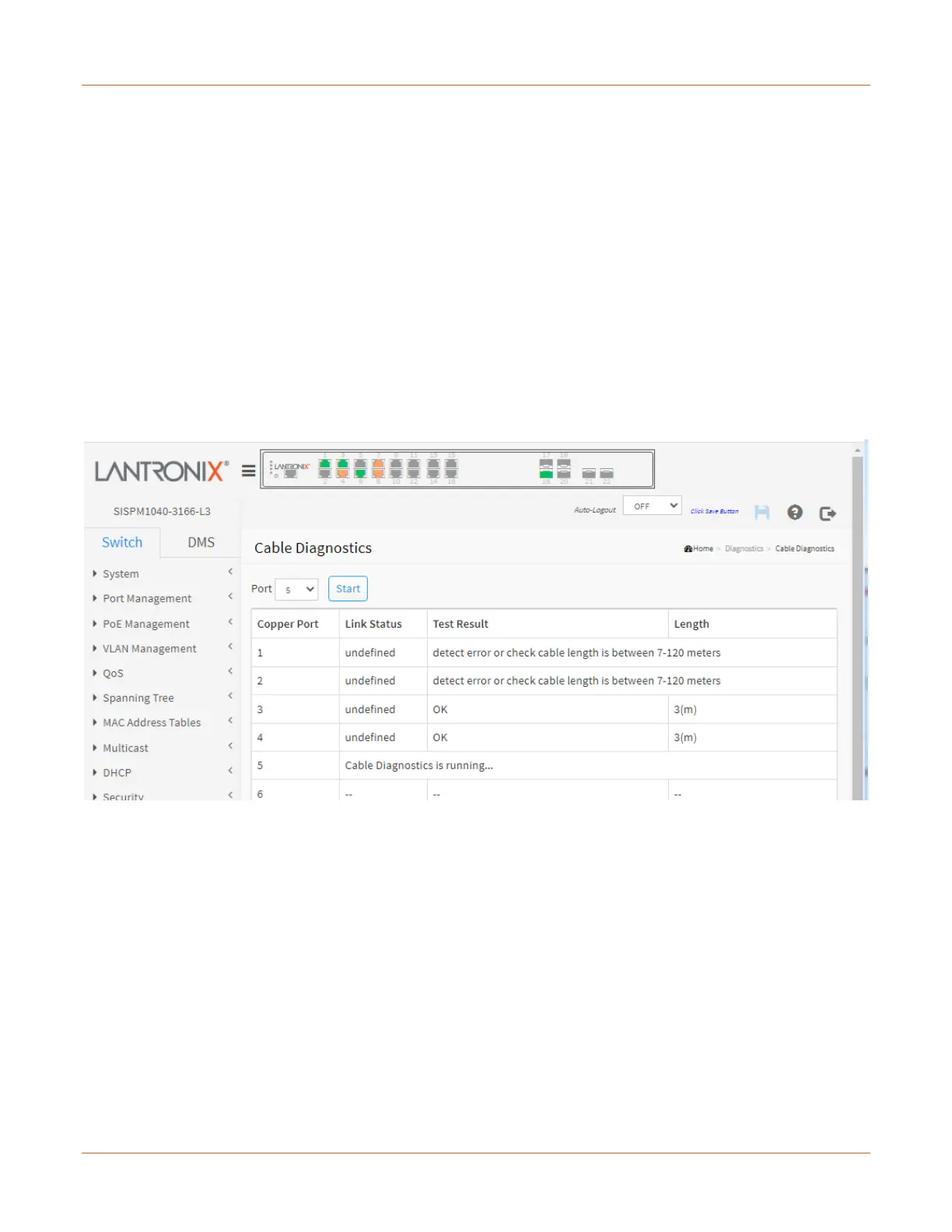

Example:
