Lantronix SISPM1040-xxxx-L3 Web User Guide
33856 Rev. A https://www.lantronix.com/ 56
Aggregation Group Configuration
Group ID: Column displays a row for the “Normal” group (with all Port Members selected by default) and a row for
each of Group IDs 1-16 (max). Group ID "Normal" indicates there is no aggregation. Only one group ID is valid
per port.
Port Members: Each switch port is listed for each group ID. Select a radio button to include a port in an
aggregation or clear the radio button to remove the port from the aggregation. By default, no ports belong to any
aggregation group. Only full duplex ports can join an aggregation and ports must be in the same speed in each
group.
Group Configuration

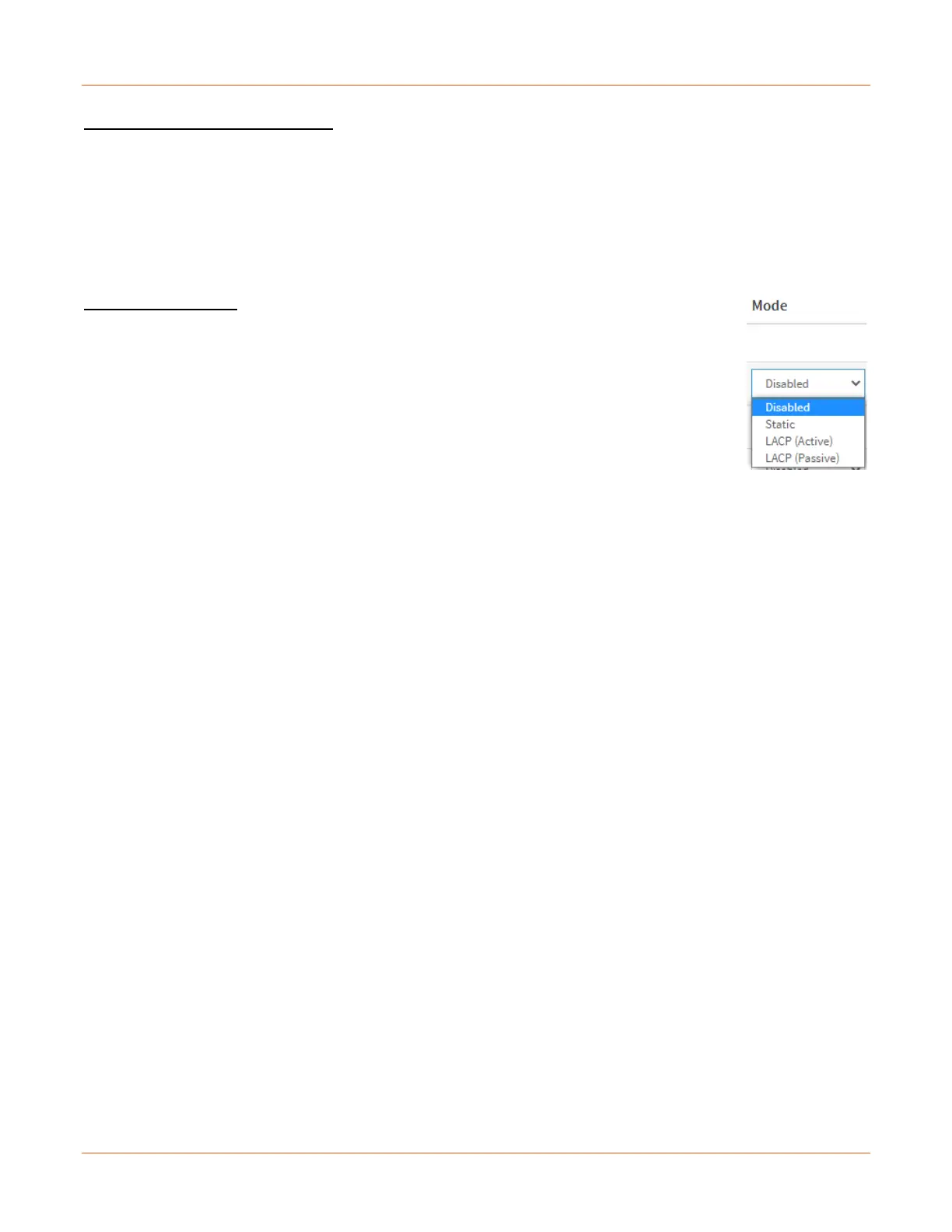

Mode: This parameter determines the mode for the aggregation group.
Disabled: The group is disabled.
Static: The group operates in static aggregation mode.
LACP (Active): The group operates in LACP active aggregation mode. See IEEE
801.AX-2014, section 6.4.1 for details. Active: Enables LACP unconditionally.
LACP (Passive): The group operates in LACP passive aggregation mode. See IEEE
801.AX-2014, section 6.4.1 for details. Passive: Enables LACP only when an LACP
device is detected.
Revertive: This parameter only applies to LACP-enabled groups. It determines if the group will perform automatic
link (re-)calculation when links with higher priority become available.
Revertive mode: When a higher priority port in active/standby configuration comes back up, it becomes
active again and the current active port (if it has lower priority) becomes standby.
Non-revertive mode: if a port comes back up, nothing changes and traffic is not disturbed.
Max Bundle: This parameter only applies to LACP-enabled groups. It determines the maximum number of active
bundled LACP ports allowed in an aggregation. When the number of members that have formed aggregation
reach this value, remaining ports are set to standby and do not forward any frames
Buttons
Apply: Click to save changes.
Reset: Click to undo any changes made locally and revert to previously saved values.
Messages:
Aggregation Error (set LACP config) Max bundle overflow
Aggregation Error (set group config) Port already in another group
