3.19.4 Cab Display Module (CDM) Warning and Alarms
The CDM displays warnings and sounds alarms to notify of abnormal windrower status at startup when the ignition
is turned ON, and at engine operating speeds above 500 rpm.
Engine Warning Lights

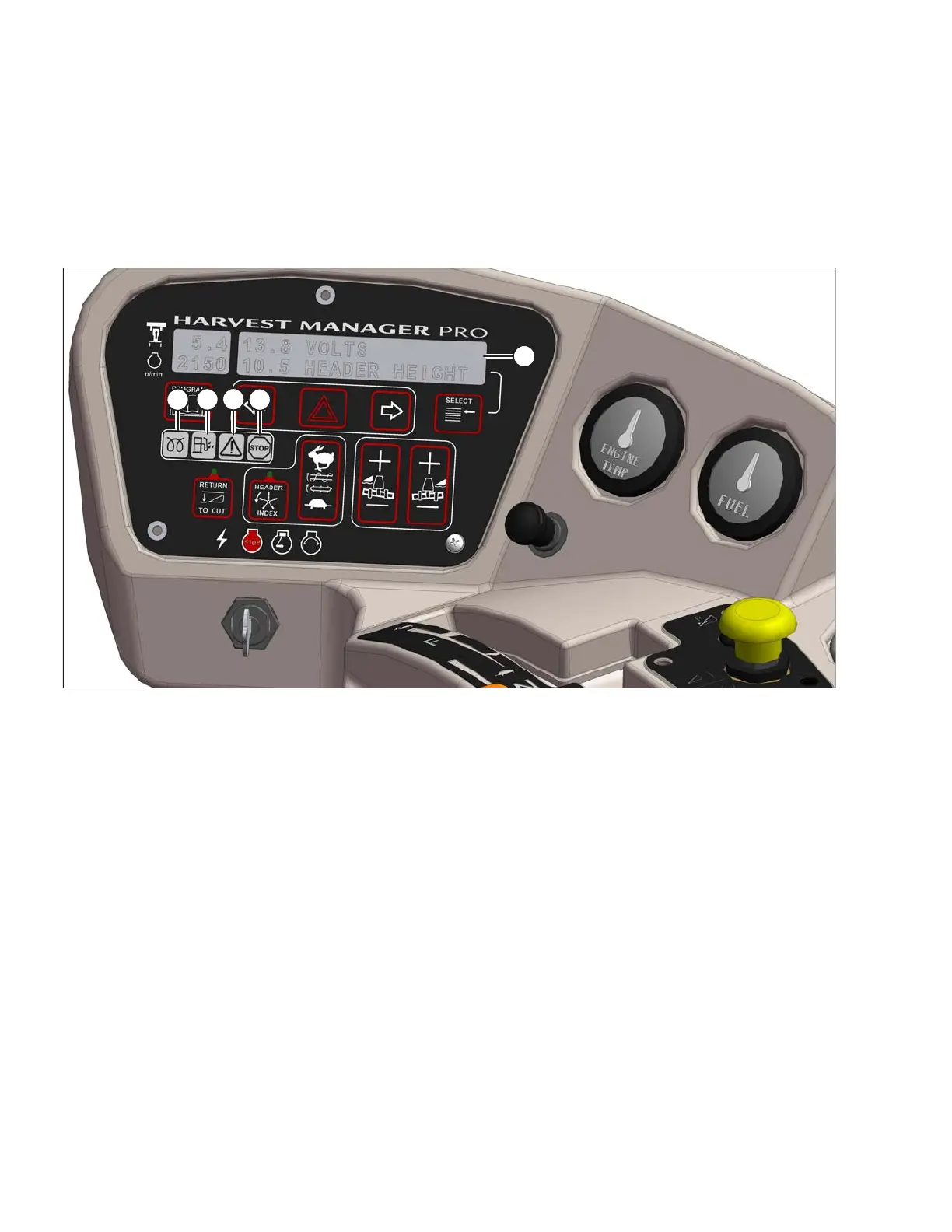

Figure 3.71: CDM Engine Warning Lights
1000652
A
B
C
D
E
A - Engine Preheat B - Water in Fuel C - Caution
D - Stop E - Display
• ENGINE PRE-HEAT: Illuminates yellow. Wait to start engine.
• WATER IN FUEL: Illuminates yellow. Service recommended.
• CAUTION: Illuminates yellow. Prompt attention is required. Refer to display code.
• STOP: Illuminates red. Stop engine immediately. Refer to display code.
• DISPLAY: Displays malfunction code. Refer to 8.4 Engine Error Codes, page 464 or your Dealer.
