214603 324 Revision A
1. Stop the engine and remove the key.
2. Open the hood. Refer to 5.2.3 Opening Hood (Highest Position), page 286.
3. Open the right cab-forward side maintenance platform. Refer to 5.3.1 Opening Platforms (Standard Position),
page 288.

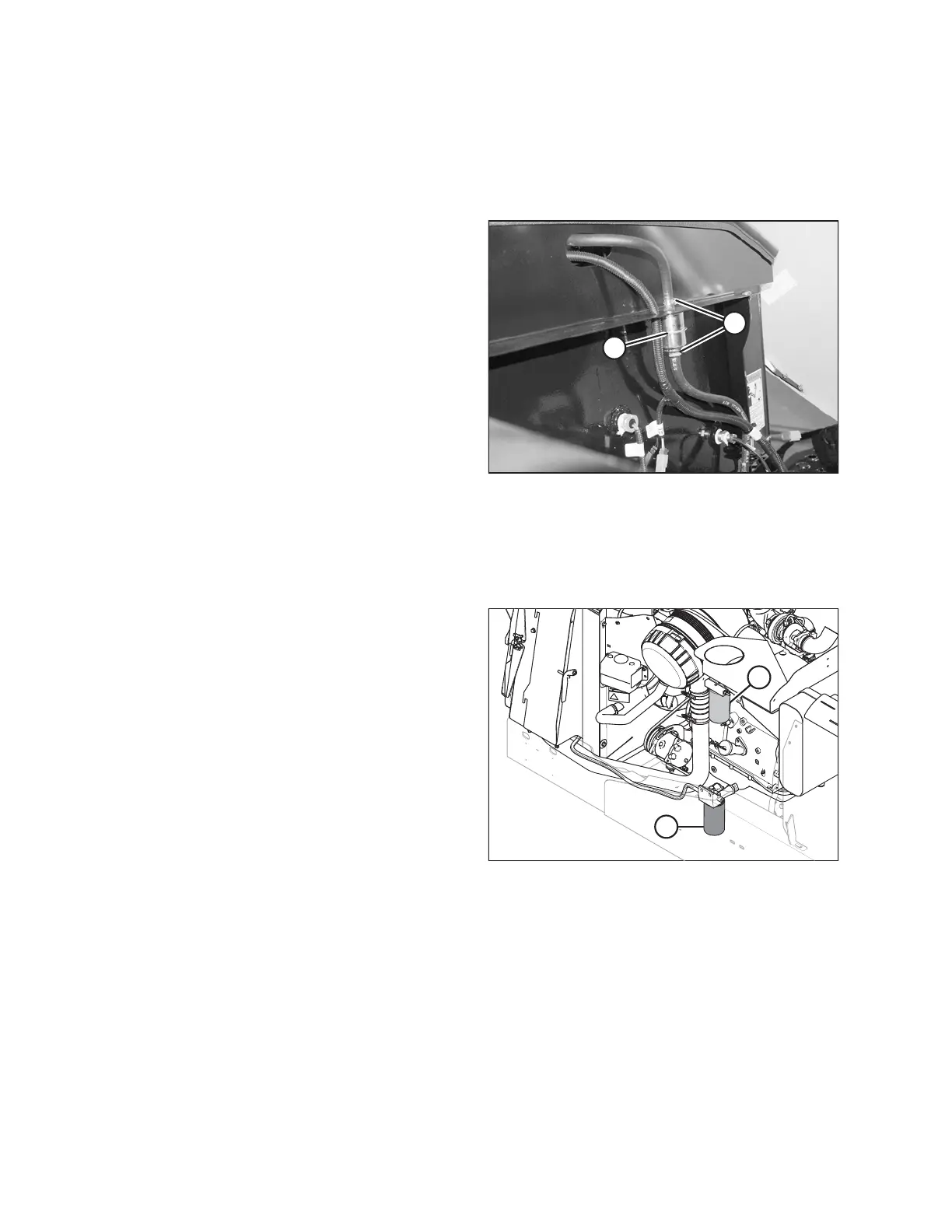

Figure 5.66: Fuel Tank Vent
4. Locate filter (A) on vent line against hydraulic oil
reservoir.
5. Release hose tension clamps (B) and slide away from
filter. Pull hoses off filter.
6. Position new filter through hole in frame and attach top
hose onto filter. The IN marking on the filter should
face down.
NOTE:
If filter has an arrow instead of an IN marking, arrow
should point up.
7. Attach lower hose to filter and secure both hoses with
tension clamps (B).
8. Close hood. Refer to 5.2.4 Closing Hood (Highest Position), page 287.
9. Close the maintenance platform. Refer to 5.3.2 Closing Platforms (Standard Position), page 289.
Maintaining Fuel Filters
Figure 5.67: Fuel System Filters
The windrower fuel system is equipped with primary (A) and
secondary (B) screw-on cartridge type filters. The primary
filter (A) is equipped with a separator that separates
sediment and water from the fuel.
Replace both filters every 500 hours of operation.
Refer to the following procedures:
• Removing Primary Fuel Filter, page 325
• Installing Primary Fuel Filter, page 326
• Removing Secondary Fuel Filter, page 326
• Installing Secondary Fuel Filter, page 327
MAINTENANCE AND SERVICING
