MacDon M205 - Replacing Field Light Bulb; Floodlights: Forward; Adjusting Forward Floodlights; Replacing Bulb in Cab-Forward Flood Light

214603 363 Revision A
1005987
A

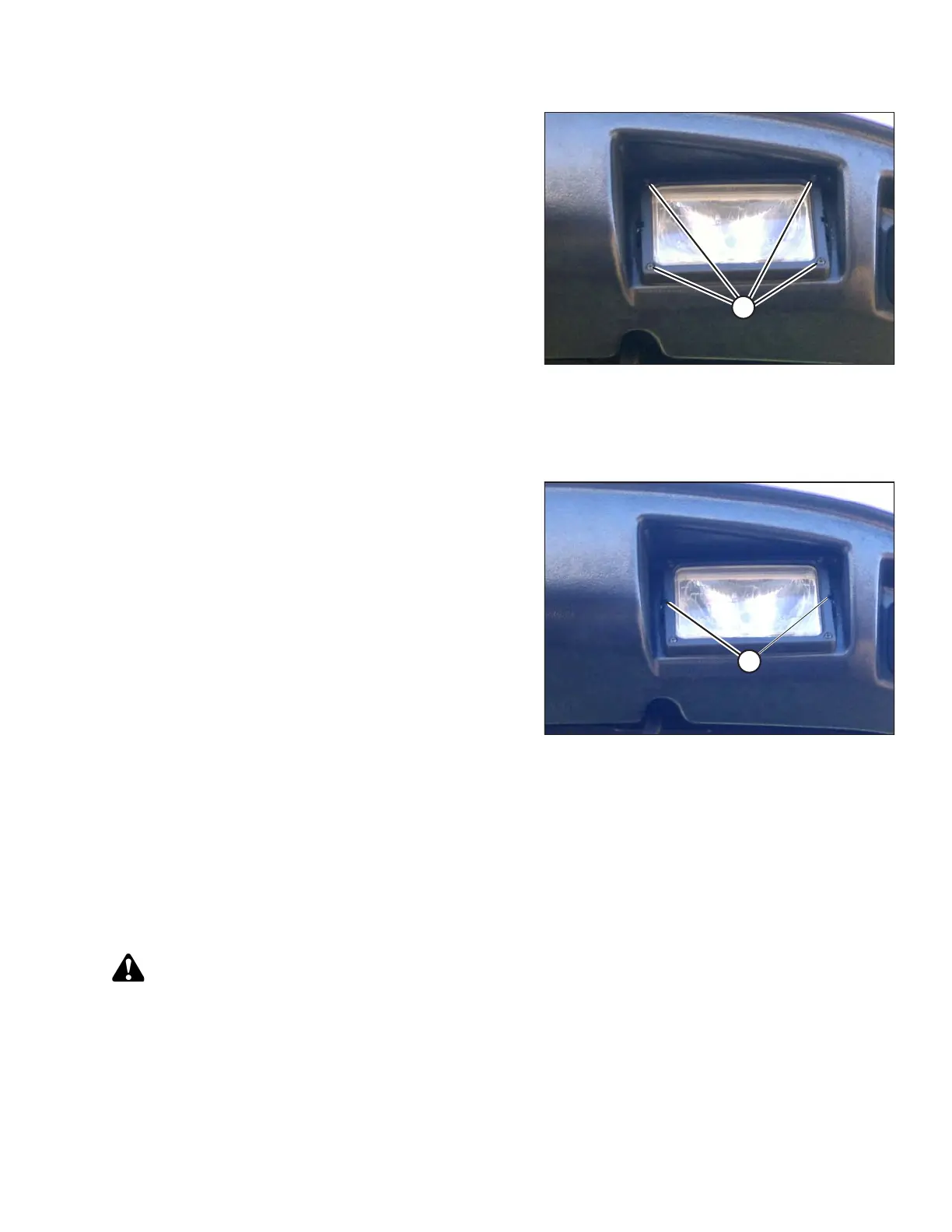

Figure 5.139: Field Lights
2. Adjust lights with screws (A).
Replacing Field Light Bulb
Replacement bulb: MD #110267 (H4 12V 60/55W)
1000844
A
Figure 5.140: Field Lights
1. Remove two screws (A), and remove light assembly.
2. Replace bulb as described in Replacing Headlight Bulb,
page 358.
5.9.5 Floodlights: Forward
Adjusting Forward Floodlights
The forward floodlights are NOT adjustable.
Replacing Bulb in Cab-Forward Flood Light
Replacement bulb: MD #109113 (H3 12V 55W)
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
Replace bulbs as follows:
1. Shut down engine and remove key. Turn lights OFF.
