3.18.4 Console Header Switches
The operator’s console contains switches for the following header functions:
Deck Shift / Float Preset Switch
1000626
A
B
C
D

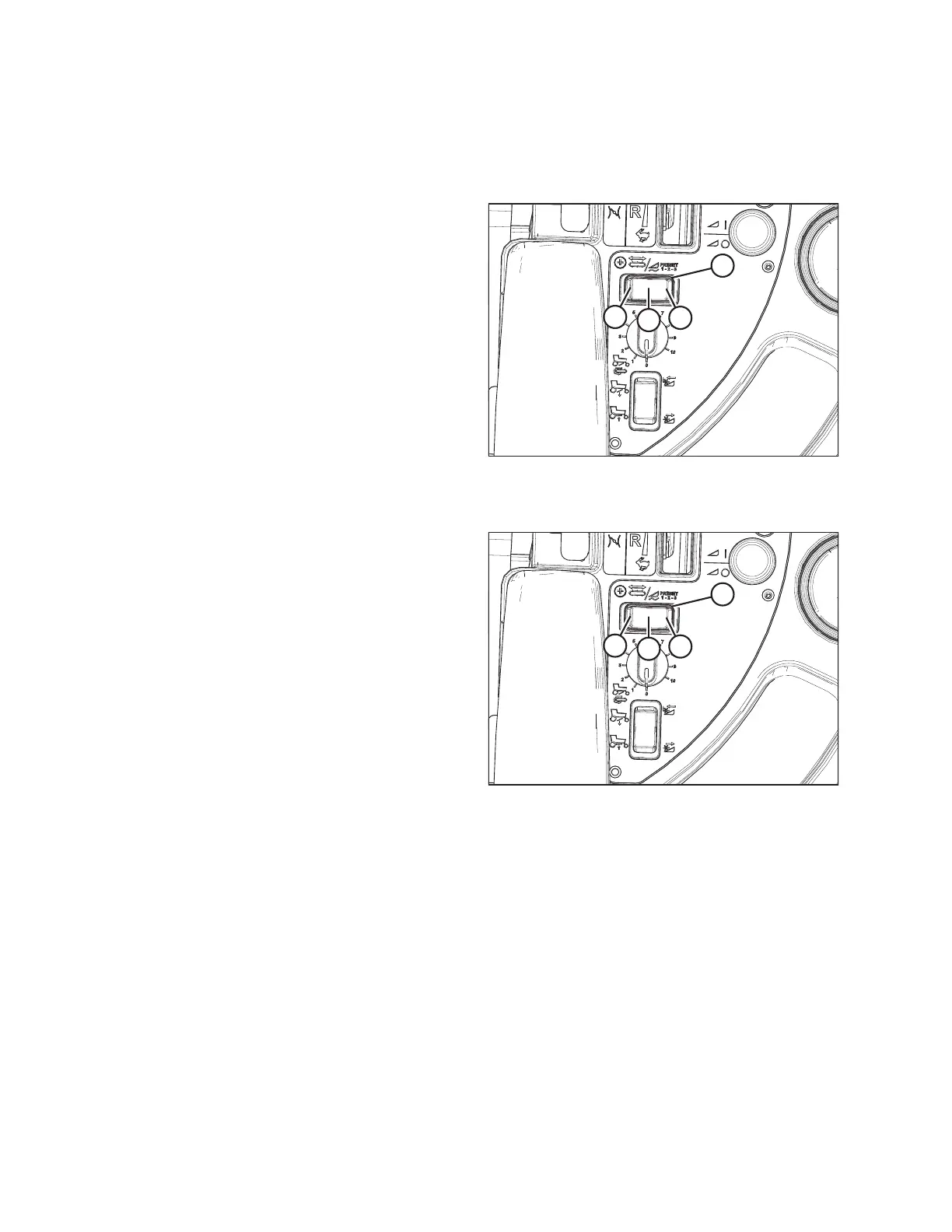

Figure 3.65: Header Switches
A - Deck Shift / Float Preset Switch B - Left-Side Delivery
C - Center Delivery D - Right-Side Delivery
Draper Header with Deck Shift Option
Controls deck shifting and float settings for double
windrowing options with a draper header.
1000626
A
B
C
D
Figure 3.66: Header Switches
A - Deck Shift / Float Preset Switch B - Float Preset 1
C - Float Preset 2 D - Float Preset 3
Draper Header with Fixed Decks / Auger Header /
Rotary Header
Selects preprogrammed header float settings. Refer to Float
Options, page 199 to learn how to preset the float.
NOTE:
Refer to the section in this manual that is specific to your
header for detailed switch operating modes.
OPERATOR’S STATION
