MacDon M205 - Activating the Reel Fore-Aft Control Lockout

214603 110 Revision A
1010008
HEADER FLOAT
ENABLED/LOCKED
C###
X###
D
C
B
A

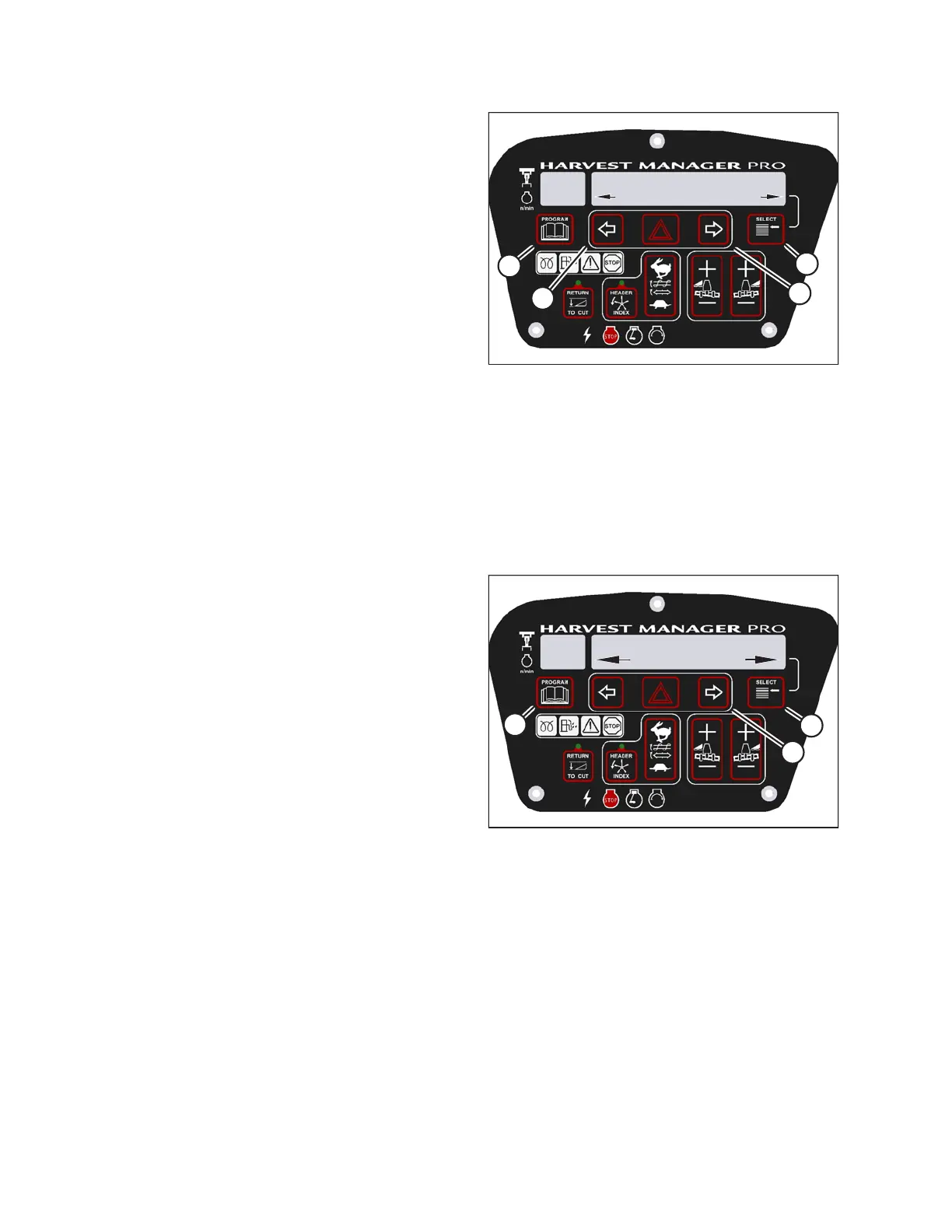

Figure 3.111: M205 Header Float Control Lock
6. Press SELECT (D) until HEADER FLOAT is displayed
on the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable HEADER FLOAT control
switch, or press right arrow (C) to lock HEADER FLOAT
control switch.
8. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
Activating the Reel Fore-Aft Control Lockout
NOTE:
• This procedure is for draper headers only.
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C
Figure 3.112: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
OPERATOR’S STATION
