MacDon M205 - Setting the Knife Overload Speed

214603 93 Revision A
Setting the Knife Overload Speed
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• The recommended knife overload speed is 75% of knife speed.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

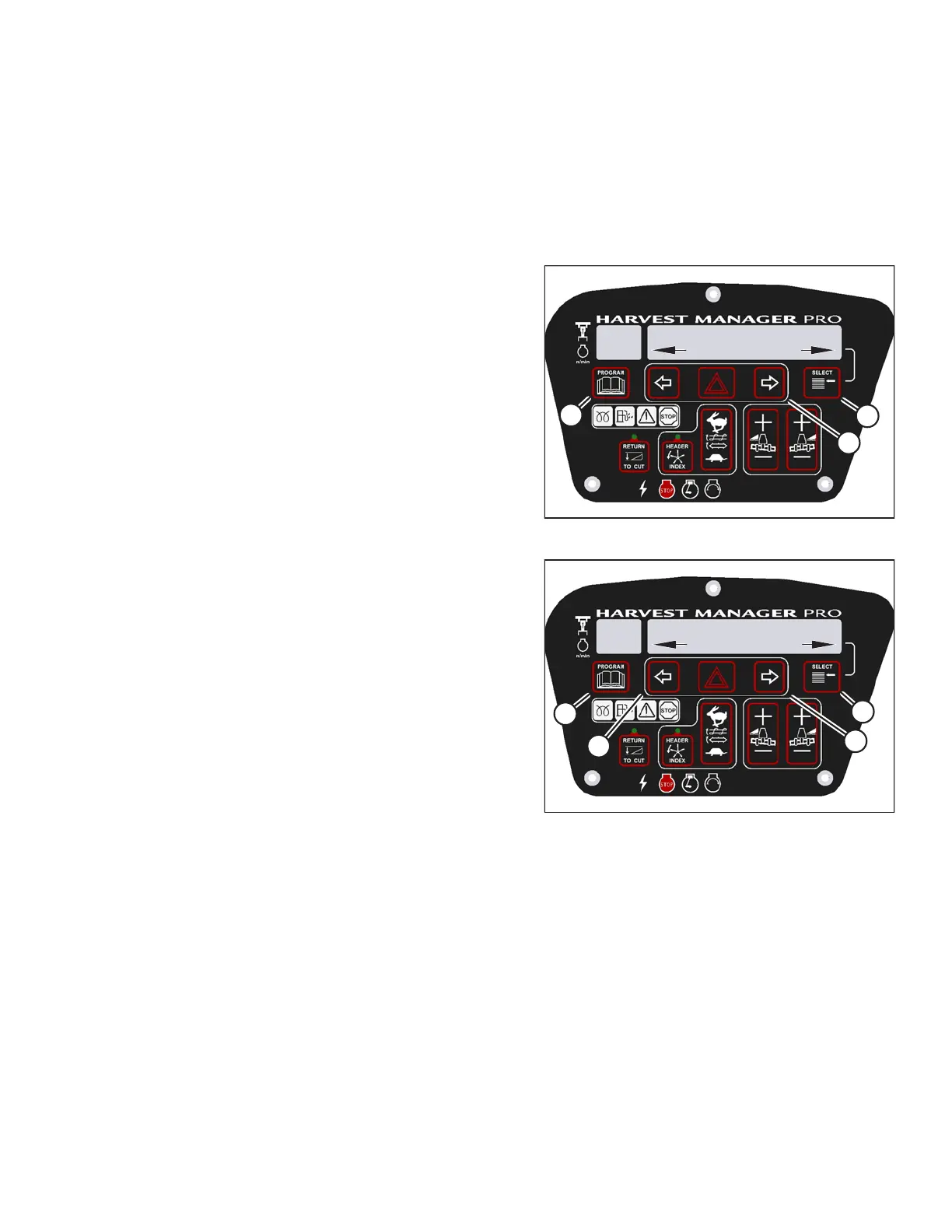

Figure 3.76: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed.
1009987
KNIFE OVERLOAD SPD?
-300 SPM
C###
X###
D
C
B
A
Figure 3.77: M205 Knife Overload Speed
4. Press SELECT (D) until KNIFE OVERLOAD SPD? is
displayed on the upper line.
• Current overload speed is displayed on the
lower line.
NOTE:
Default setting is -300 spm. Range is -500 to -100 spm.
5. Press left (B) or right (C) arrows to set knife overload
speed. Press SELECT (D).
6. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
