MacDon M205 - Calibrating the Header Float Sensors

214603 129 Revision A
Calibrating the Header Float Sensors
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• The Operator can use the left or right FLOAT buttons on the cab display module (CDM) to perform this
procedure.
1021948
A

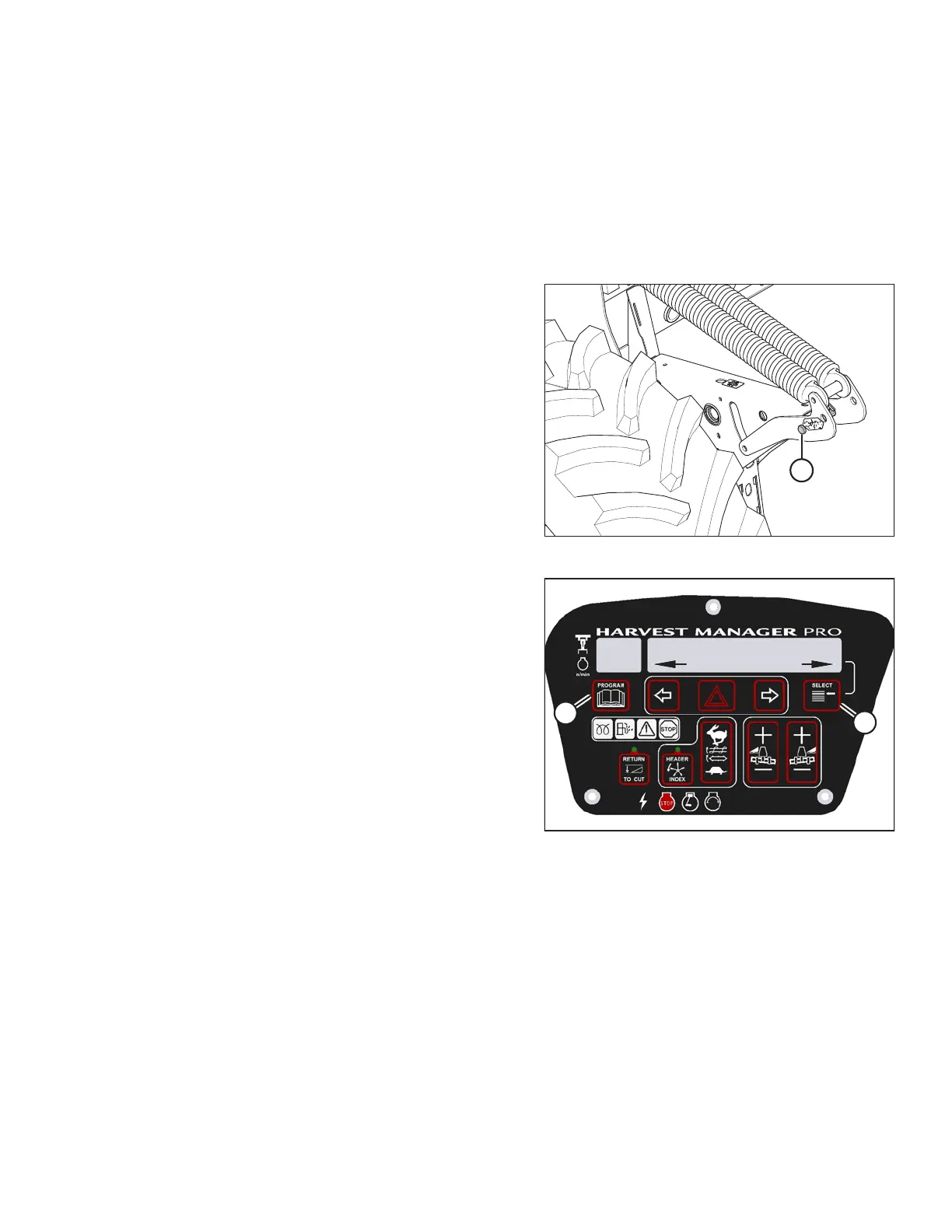

Figure 3.156: Float Pin – Right Side
IMPORTANT:
Ensure float pins (A) are installed in the working position.
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B
Figure 3.157: M205 CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
3. Press SELECT (B) until CALIBRATE SENSORS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
OPERATOR’S STATION
