214603 360 Revision A

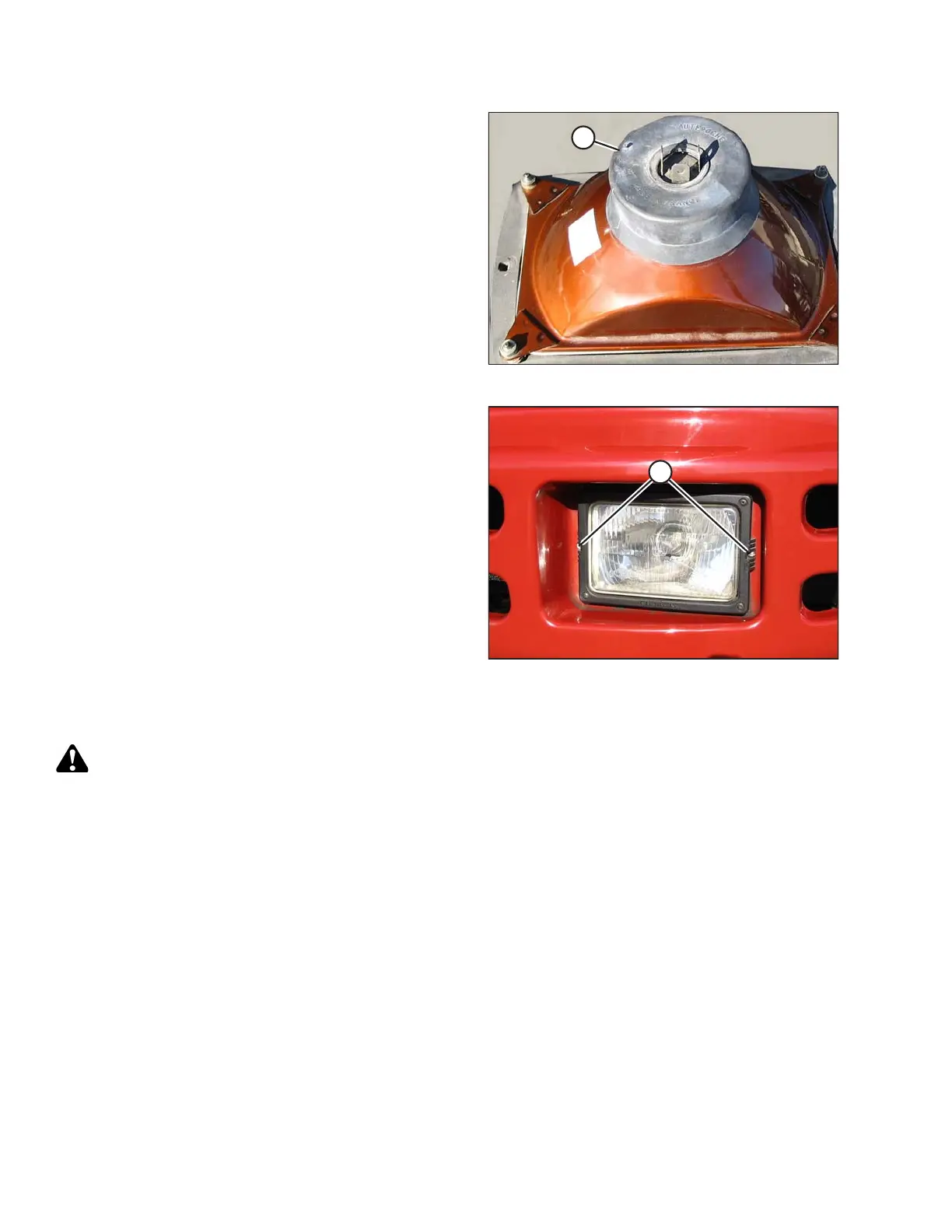

Figure 5.132: Headlight Assembly
7. Replace rubber insulator boot (A).
8. Push connector onto light bulb.
Figure 5.133: Headlight
9. Position headlight into light receptacle, ensuring top is
up, and secure with screws (A). To align the headlights,
refer to Aligning Headlights, page 360.
Aligning Headlights
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
NOTE:
Header should be attached and raised to maintain proper windrower stance.
1. Position windrower in engine-forward mode on level ground so that headlights are positioned 7.5 m (25 ft.) in
front of a vertical surface.
2. Shut down engine and remove key.
MAINTENANCE AND SERVICING
