MacDon M205 - Replacing a Console Gauge Light

214603 376 Revision A
1000896
A

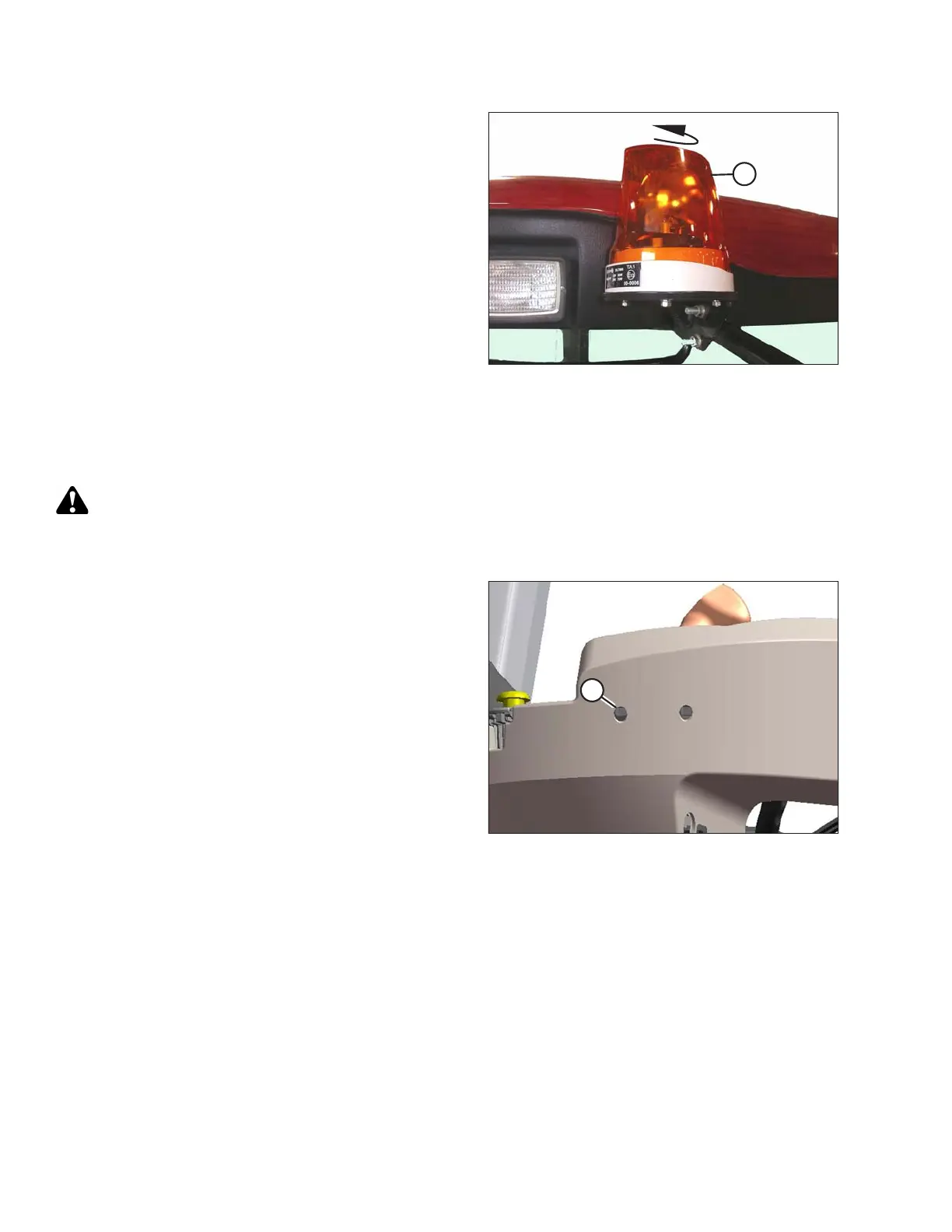

Figure 5.166: Warning Beacon
9. Turn the lens clockwise to lock it in place.
5.9.11 Replacing a Console Gauge Light
To replace a light inside one of the console gauges, follow these steps:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000803
A
Figure 5.167: Operator Console
1. Shut down engine and remove key. Turn lights OFF.
2. Remove the appropriate gauge access hole decal (A)
behind the operator’s console.
MAINTENANCE AND SERVICING
