MacDon M205 - Road Light: Cab-Forward

214603 52 Revision A
3.7.3 Road Light: Cab-Forward
1010282
A

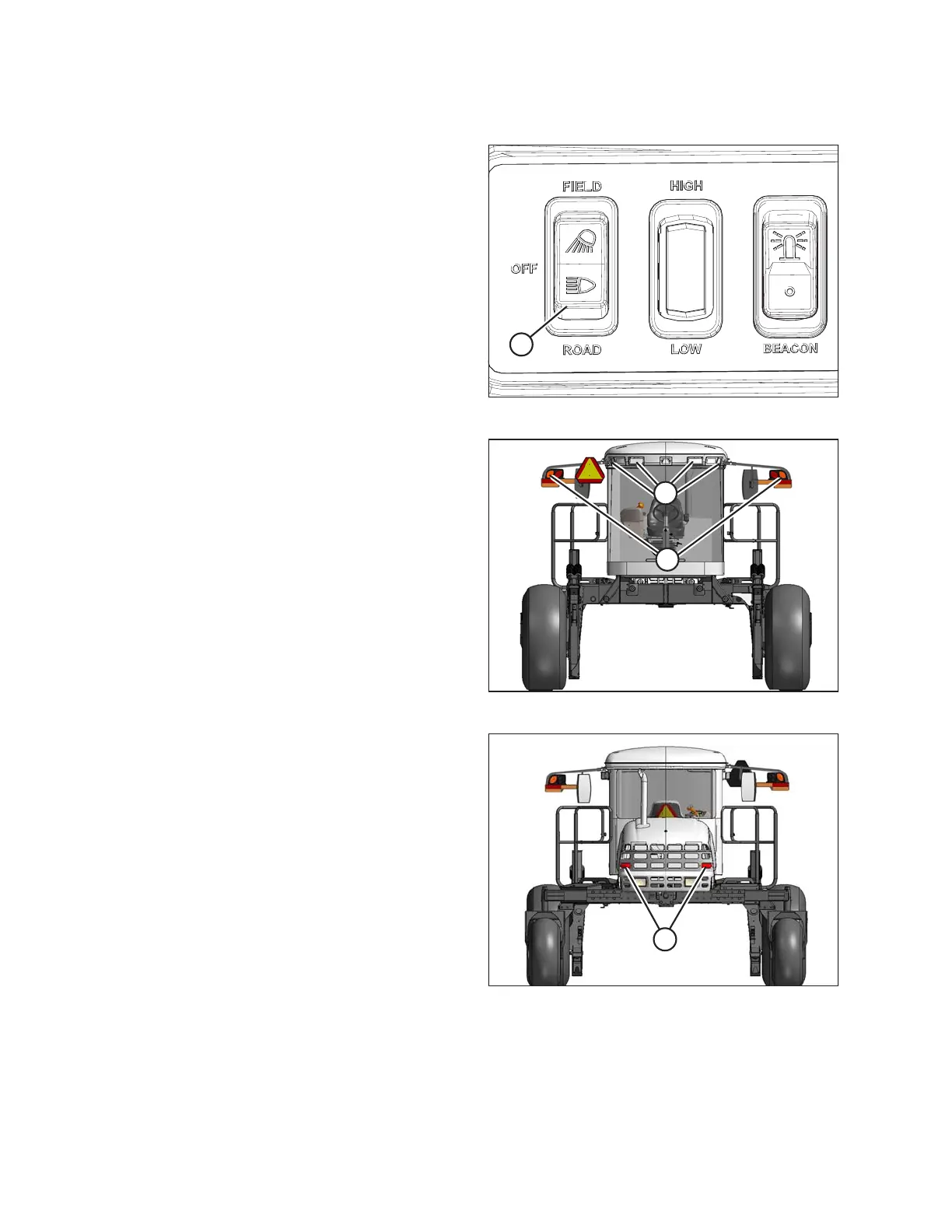

Figure 3.24: Road Light Switch
If equipped, the following lights are functional with
switch (A) in the ROAD position:
1000591
B
A
Figure 3.25: Cab-Forward: Front View
• Four lights (A) in cab roof
• Amber turn signals and hazard lights (B) on mirror
supports visible from both front and rear
1009843
C
Figure 3.26: Cab-Forward: Rear View
• Red lights (C) in hood (optional)
NOTE:
The hazard lights must be activated with the switch on the
cab display module (CDM) when driving on the road.
IMPORTANT:
Optional red tail lighting and marking kit must be installed so
that road travel in the cab-forward mode complies with
regulations. Refer to 7.1.4 Lighting and Marking for Cab-
Forward Road Travel, page 443 or see your MacDon
Dealer.
NOTE:
If the red tail lighting kit is not installed, travelling in cab-
forward mode and activating the turn indicator will trigger a
stop lamp error (E134 or E135).
IMPORTANT:
If red tail lighting kit is installed and stop lamp errors still
occur, contact your MacDon Dealer.
OPERATOR’S STATION
