Draining Fuel Tank
Draining the fuel tank is necessary to remove old or contaminated fuel.
WARNING
• To avoid personal injury or death from explosion or fire, do NOT smoke or allow flame or sparks near
fuel tank when refueling.
• NEVER refuel the windrower when the engine is hot or running.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.
2. Open the hood. Refer to 5.2.1 Opening Hood (Lower Position), page 284.

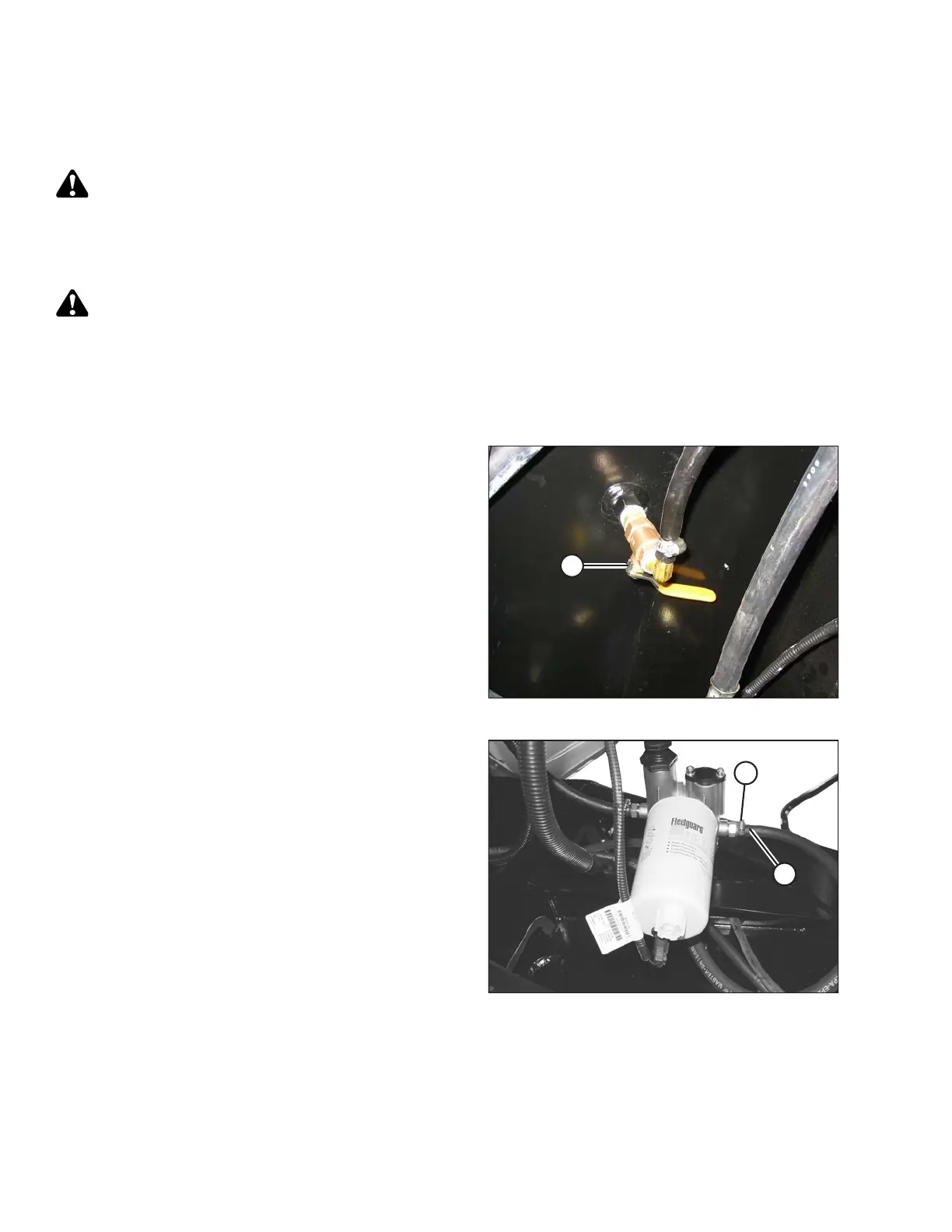

Figure 5.75: Fuel Shut-off Valve
3. Close fuel supply valve (A) located on the bottom of the
fuel tank.
Figure 5.76: Fuel System
4. Place a 20 liter (5 US gallon) drain pan under the fuel
supply hose (A) at the primary filter.
5. Loosen clamp (B) and pull fuel supply hose (A) off
fitting.
