214603 54 Revision A
3.7.6 Auto Road Light
The beacon and hazard lights are included in the auto road light feature. The beacon and hazard lights will turn on
when this feature is activated, and can only be turned off by engaging the header drive.
This feature will activate when:
• Windrower is in cab- or engine-forward mode
• Engine is running
• Header is disengaged
• Transmission is in either mid or high range
Moving the ground speed lever (GSL) out of neutral (brake off) will switch the white lights from field/work lights to
road lights, if the switch is in the field/road lights position.
3.7.7 HID Auxiliary Lighting (Optional)
Two optional high intensity discharge (HID) lights (MD #B5596) provide additional lighting during field operation.

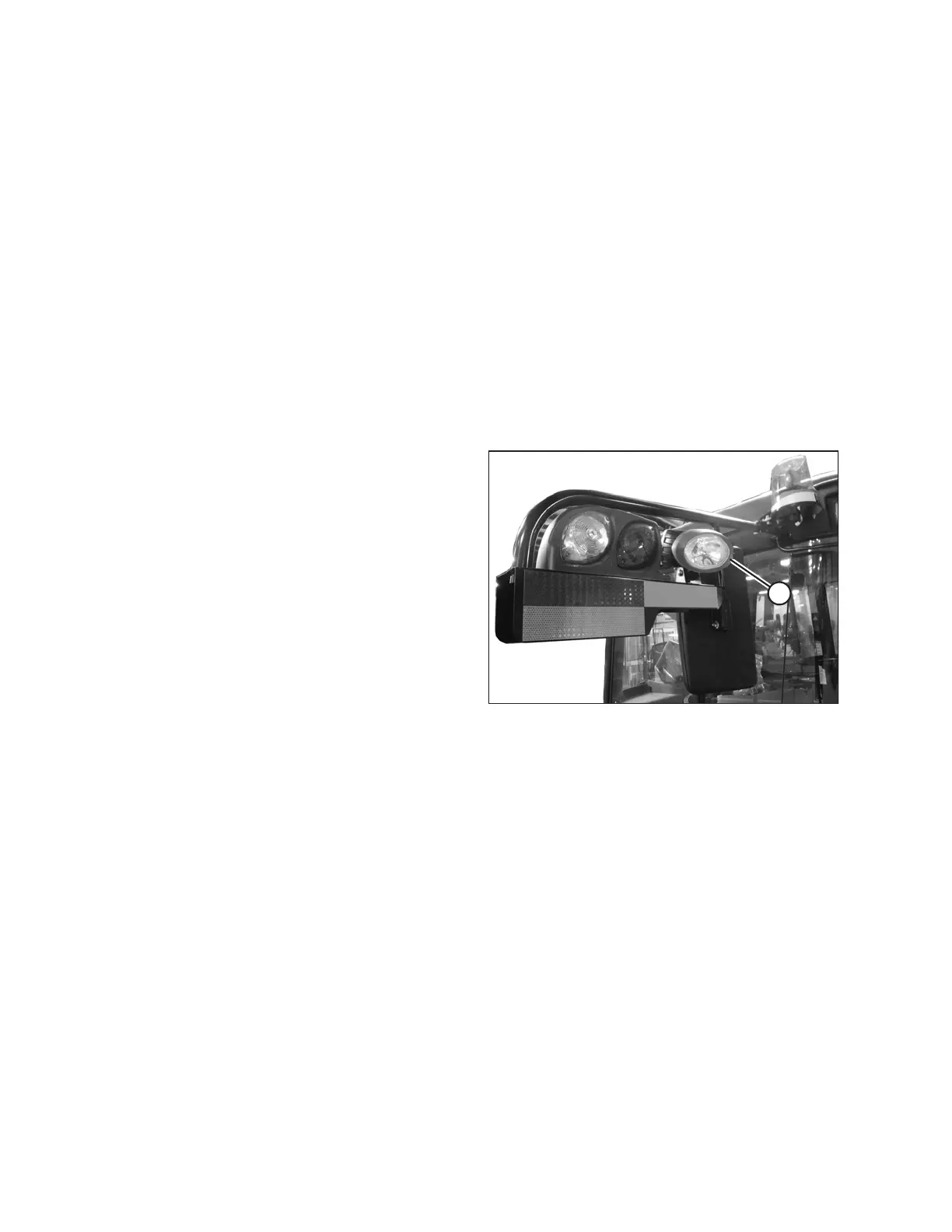

Figure 3.30: HID Auxiliary Lights (Optional)
If installed, HID auxiliary lighting is located on the mirror
supports (A) and operates in cab-forward mode only.
OPERATOR’S STATION
