MacDon M205 - Cab Display Module (CDM)

214603 76 Revision A
3.19 Cab Display Module (CDM)
3.19.1 Engine and Windrower Functions

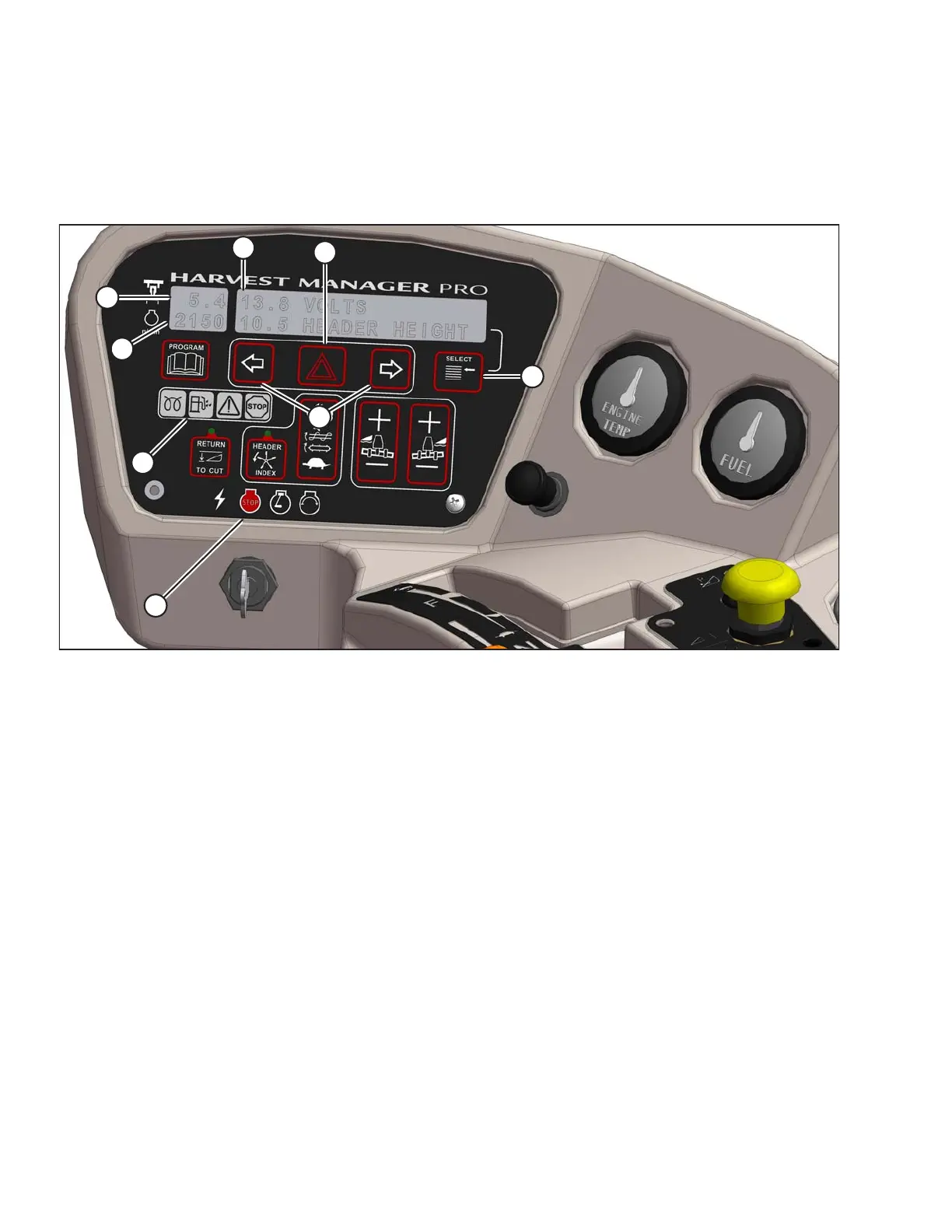

Figure 3.68: Cab Display Module (CDM) Engine and Windrower Functions
1000644
A
B
C
D
E
F
G
H
• (A) ENGINE RPM
• (B) GROUND SPEED – mph or km/h
• (C) DISPLAY – Engine/windrower functions
• (D) HAZARD WARNING LIGHTS SWITCH – Activates hazard warning lights, cancels turn signal
• (E) SELECT SWITCH – Allows Operator to select display item on lower line. Push to SELECT
• (F) TURN SIGNAL SWITCHES – Activates turn signals on windrower and header. Push-ON/Push-OFF
• (G) IGNITION SWITCH POSITIONS – Accessory / Stop / Run / Start
• (H) ENGINE WARNING LIGHTS – Engine Pre-Heat / Water In Fuel / CAUTION / Stop Engine
OPERATOR’S STATION
