MacDon M205 - Removing Drive Wheel

214603 404 Revision A
1016454
A
B

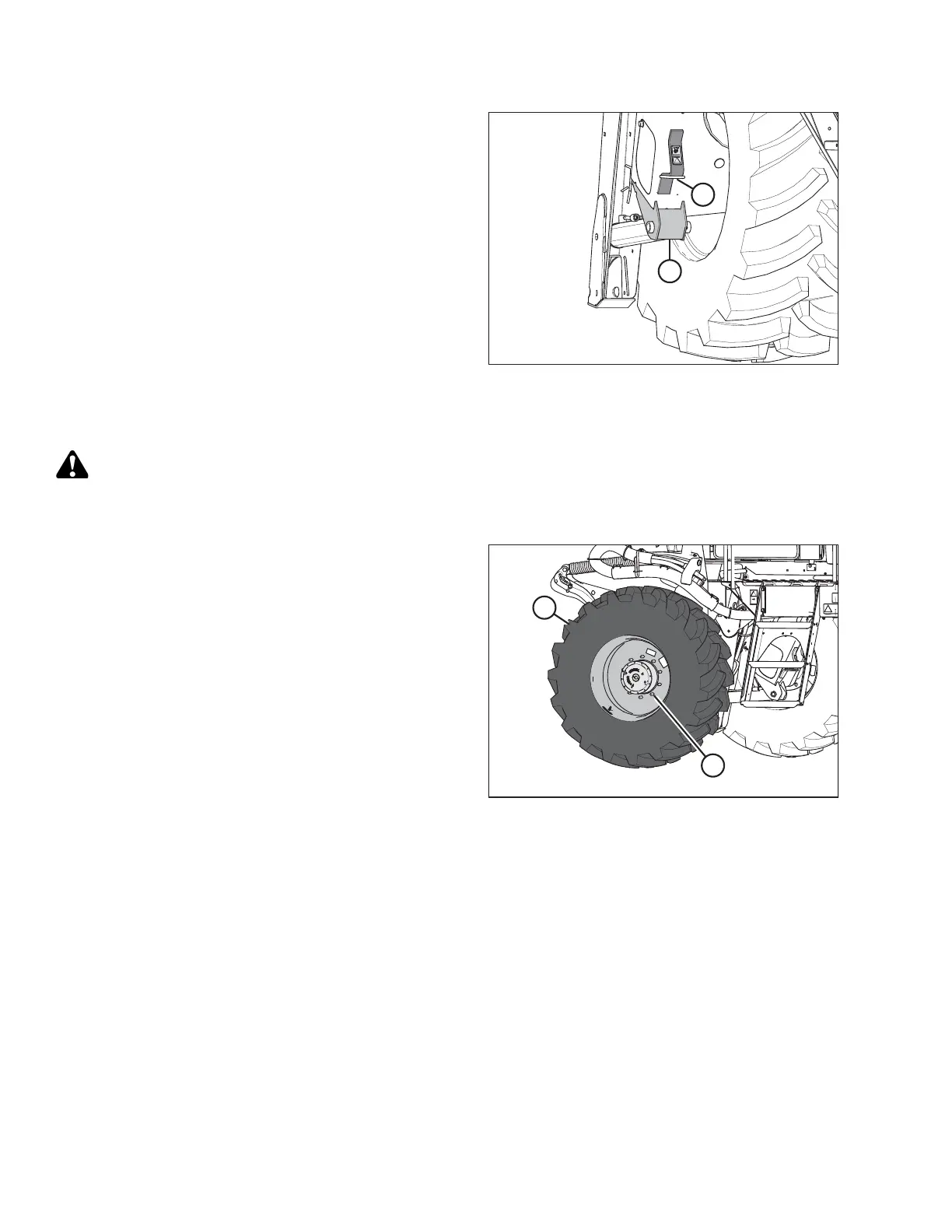

Figure 5.209: Drive Wheel Jack Point
4. Place a jack under leg jack point (A), and raise the drive
wheel until it is slightly off the ground. Place a jack
stand beneath lift cylinder mount (B).
NOTE:
Do NOT place jack stand under the cylinder. Use a
small metal plate on top of the jack stand.
5. Lower the windrower onto the jack stand.
Removing Drive Wheel
CAUTION
Use a suitable lifting device capable of supporting a minimum of 907 kg (2000 lb.) to lift the wheel
assembly away from the windrower.
1008818
A
B
Figure 5.210: Drive Wheel
1. Raise windrower drive wheel (A) off the ground. Refer
to Raising Drive Wheel, page 403.
2. Remove wheel nuts (B).
3. Use a suitable lifting device to remove drive wheel (A).
MAINTENANCE AND SERVICING
