MacDon M205 - Activating the Header Float Control Lockout

214603 109 Revision A
1010013
HEADER TILT
ENABLED/LOCKED
C###
X###
D
C
B
A

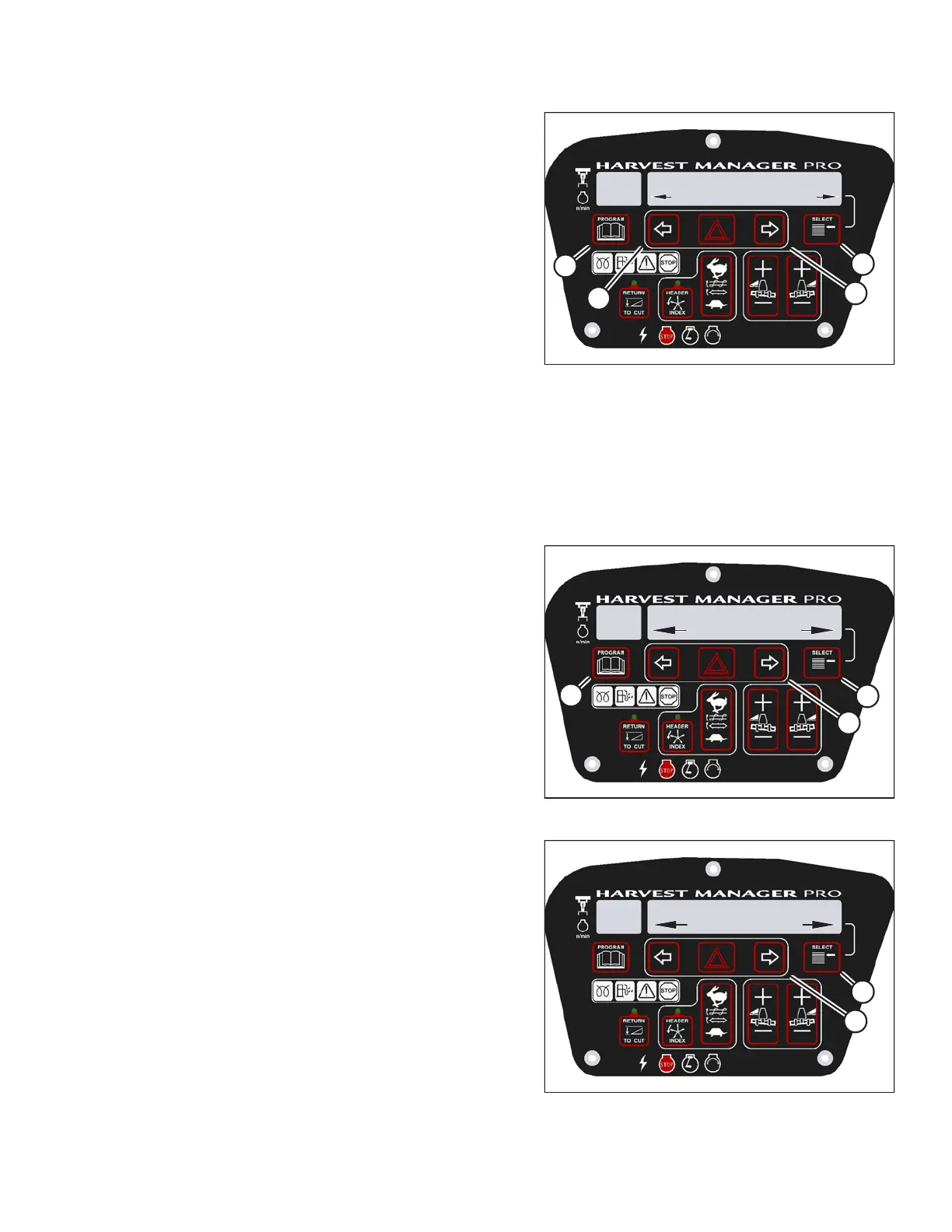

Figure 3.108: M205 Header Tilt Control Lock
6. Press SELECT (D) until HEADER TILT is displayed on
the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable HEADER TILT control
switch.
Press right arrow (C) to lock HEADER TILT control
switch.
8. Press PROGRAM (A) to exit programming mode, or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
Activating the Header Float Control Lockout
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header.
For more information, refer to 4.5 Attaching and Detaching Headers, page 217.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C
Figure 3.109: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1010005
NO/YES
SET CONTROL LOCKS?
C###
X###
B
A
Figure 3.110: M205 Control Locks
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
OPERATOR’S STATION
