MacDon M205 - Windrower Controls

214603 68 Revision A
3.17 Windrower Controls
1000615
B
A
C
D
E

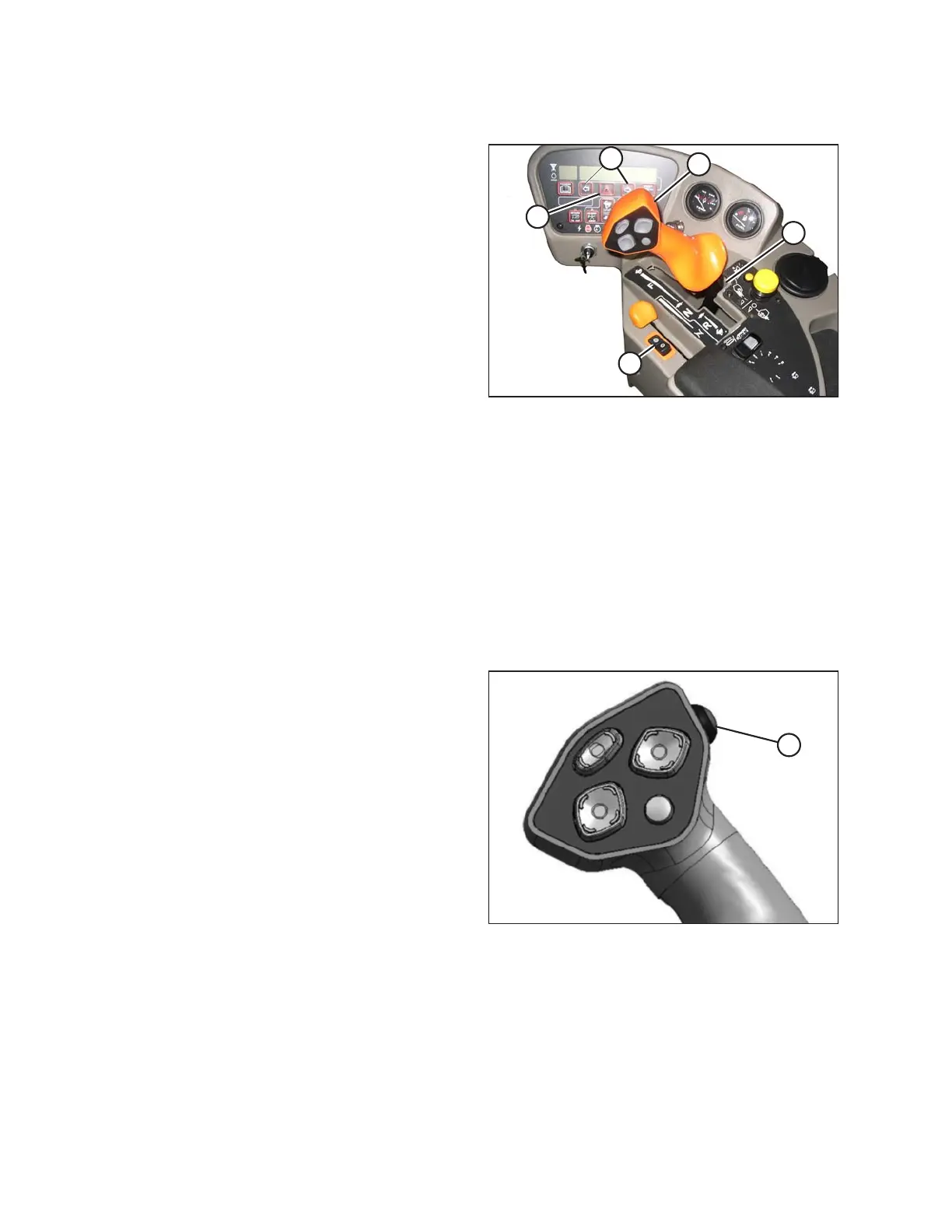

Figure 3.53: Console Controls
Console Controls:
A – TURN SIGNALS activate turn signals on windrower and
header
• Push-ON/Push-OFF
B – GROUND SPEED LEVER (GSL) controls speed and
direction of movement
• F: Forward
• N: NEUTRAL
• N-DETENT: Engages neutral interlock, and applies park
brake when steering locked in center
• R: Reverse
C – HAZARD WARNING LIGHTS activate signals on
windrower and header
• Push-ON/Push-OFF
D – GROUND SPEED RANGE SWITCH shifts transmission
speed range
• High range: 0–37 km/h (23 mph) ENGINE-FORWARD ONLY
• Mid range: 0–25.7 km/h (16 mph) CAB-FORWARD ONLY
• Low range: 0–17.7 km/h (11 mph)
E – N-Detent
1009722
A
Figure 3.54: GSL
Autosteer Control:
A – AUTOSTEER ENGAGEMENT SWITCH
engages/disengages the automated steering system
(if compatible system is installed)
• ENGAGE: Click to engage
• DISENGAGE: Turn steering wheel or click to disengage
