MacDon M205 - Adjusting the Cab Display Contrast

214603 124 Revision A
Adjusting the Cab Display Contrast
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B

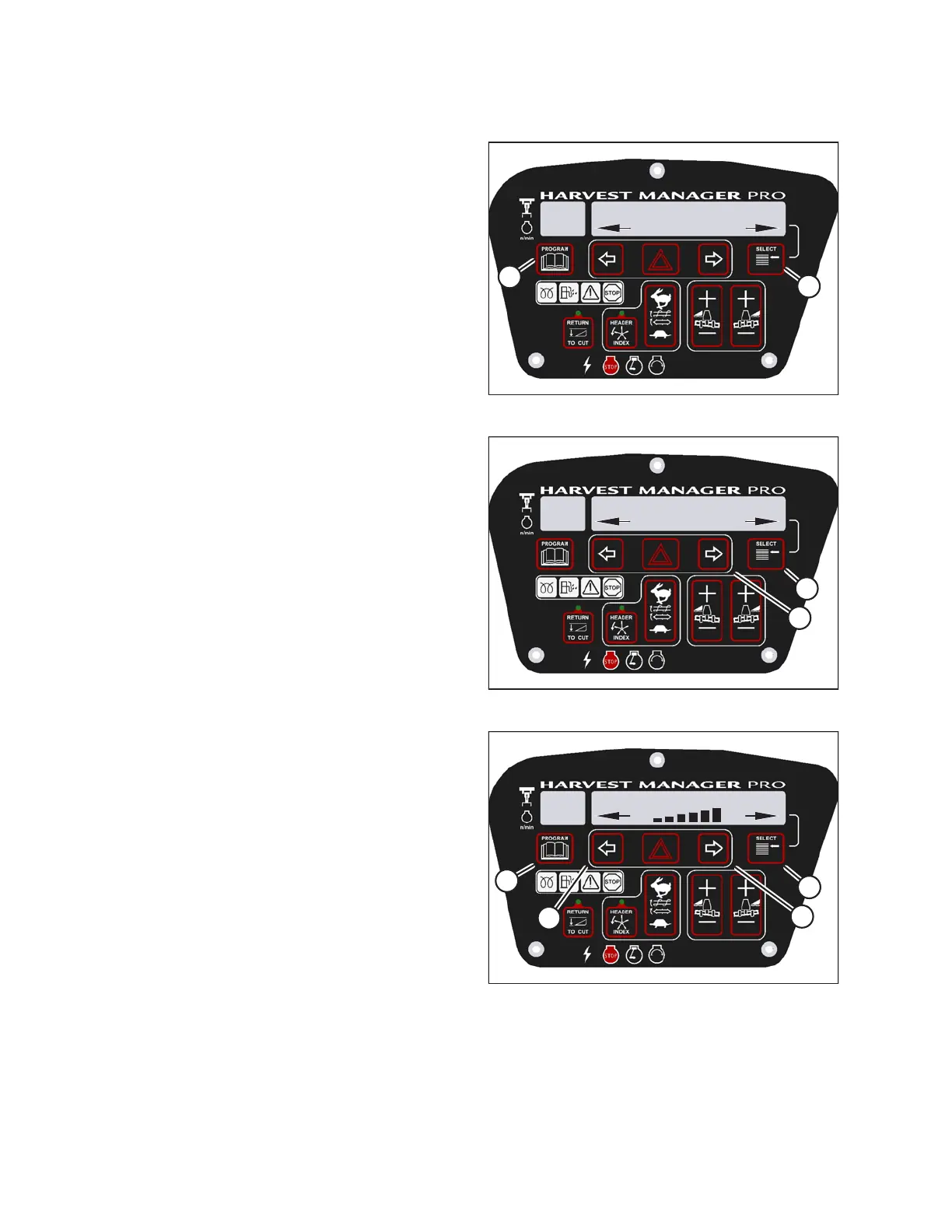

Figure 3.145: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
1009975
C###
CAB DISPLAY SETUP?
NO/YES
X###
B
A
Figure 3.146: M205 Cab Display Setup
3. Press SELECT (B) until CAB DISPLAY SETUP? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
• DISPLAY LANGUAGE? is displayed on the
upper line.
1009980
DISPLAY CONTRAST
C###
X###
D
C
A
B
Figure 3.147: M205 Display Contrast
5. Press SELECT (D) until DISPLAY CONTRAST is
displayed on the upper line.
• Default setting is displayed on the lower line.
6. Press left (B) or right (C) arrows to adjust display
contrast.
7. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next CAB DISPLAY
SETUP? action.
