MacDon M205 - Adjusting Rear Floodlights; Floodlights: Rear; Replacing Bulb in Rear Flood Light

214603 369 Revision A
5.9.7 Floodlights: Rear
Adjusting Rear Floodlights
The rear floodlights are best adjusted with the machine in the field (or equivalent) to suit Operator preference.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000889
A
B

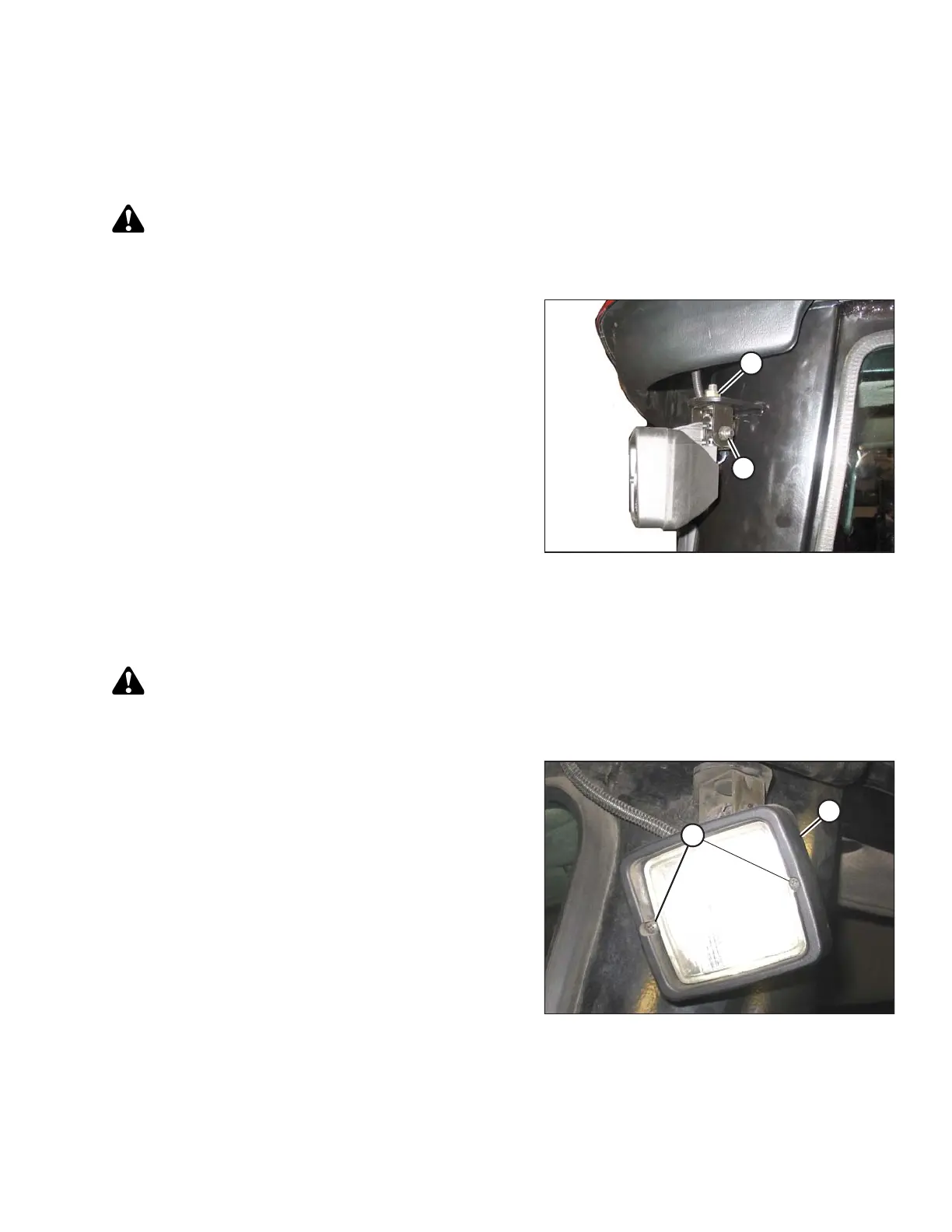

Figure 5.152: Rear Flood Light
1. Shut down engine and remove key. Turn lights ON.
2. Loosen bolts (A) and (B).
3. Position light to desired position.
4. Tighten bolts (A) and (B).
Replacing Bulb in Rear Flood Light
Replacement bulb: MD #109113 (H3 12V 55W)
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1000831
A
B
Figure 5.153: Rear Flood Light
1. Shut down engine and remove key. Turn lights OFF.
2. Remove two screws (A) and remove light bezel (B).
3. Remove light from receptacle.
IMPORTANT:
Do NOT touch the glass of the halogen bulb as the oils
or other chemicals from your skin will cause the bulb to
fail prematurely.
MAINTENANCE AND SERVICING
