Calibrating the Header Tilt Sensor
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. Refer to 4.5 Attaching and Detaching Headers, page
217.
• The engine MUST be running to perform this procedure.
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B

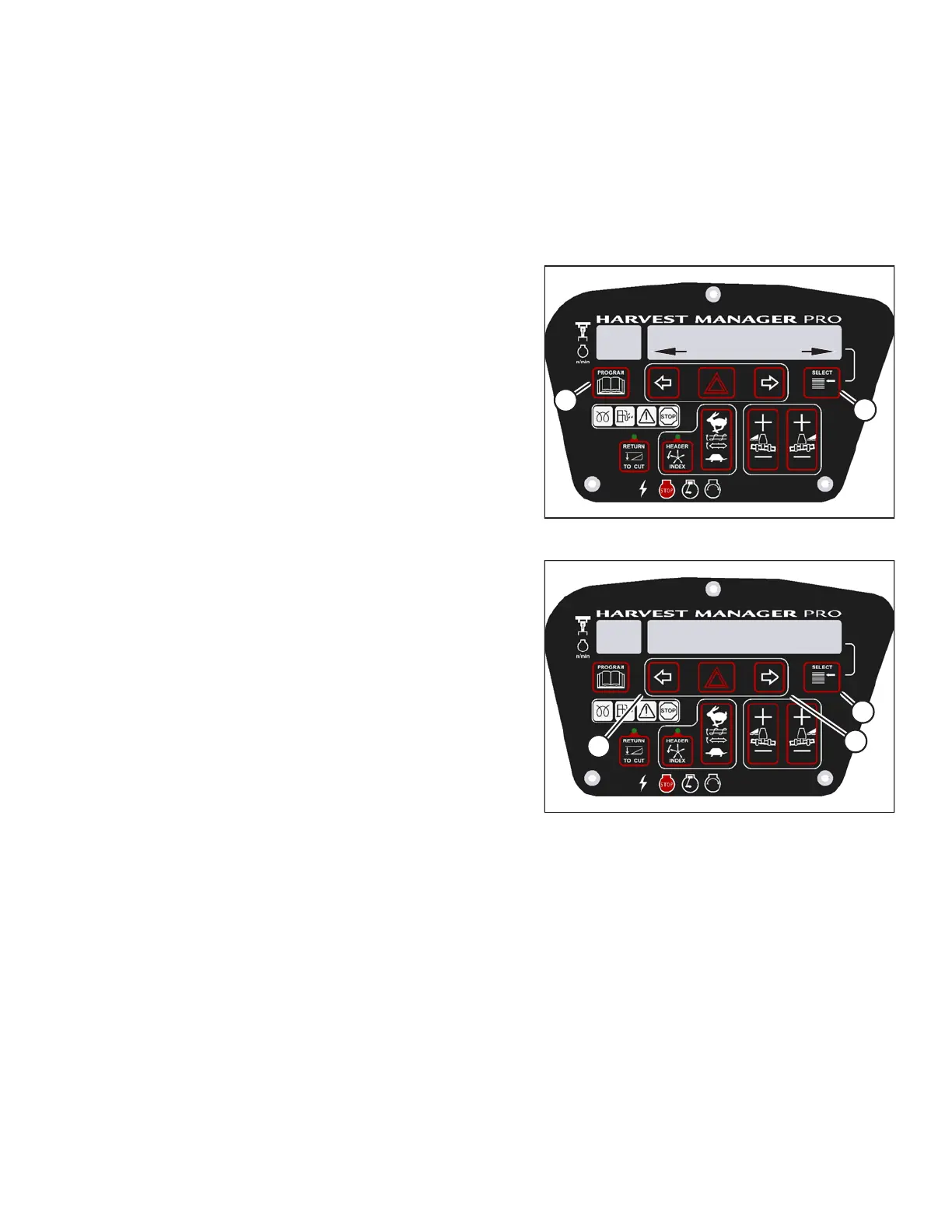

Figure 3.152: M205 CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
3. Press SELECT (B) until CALIBRATE SENSORS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
1009982
HDR TILT SENSOR CAL
EXTEND TILT TO START
C###
X###
C
B
A
Figure 3.153: M205 Header Tilt
4. Press right arrow (B) to select YES. Press SELECT (C).
• TO CALIBRATE SELECT is displayed in upper line.
5. Press left (A) or right (B) arrow until HEADER TILT is
displayed on the lower line. Press SELECT (C).
• HDR TILT SENSOR CAL is displayed on the
upper line.
• EXTEND TILT TO START is displayed on the
lower line.
