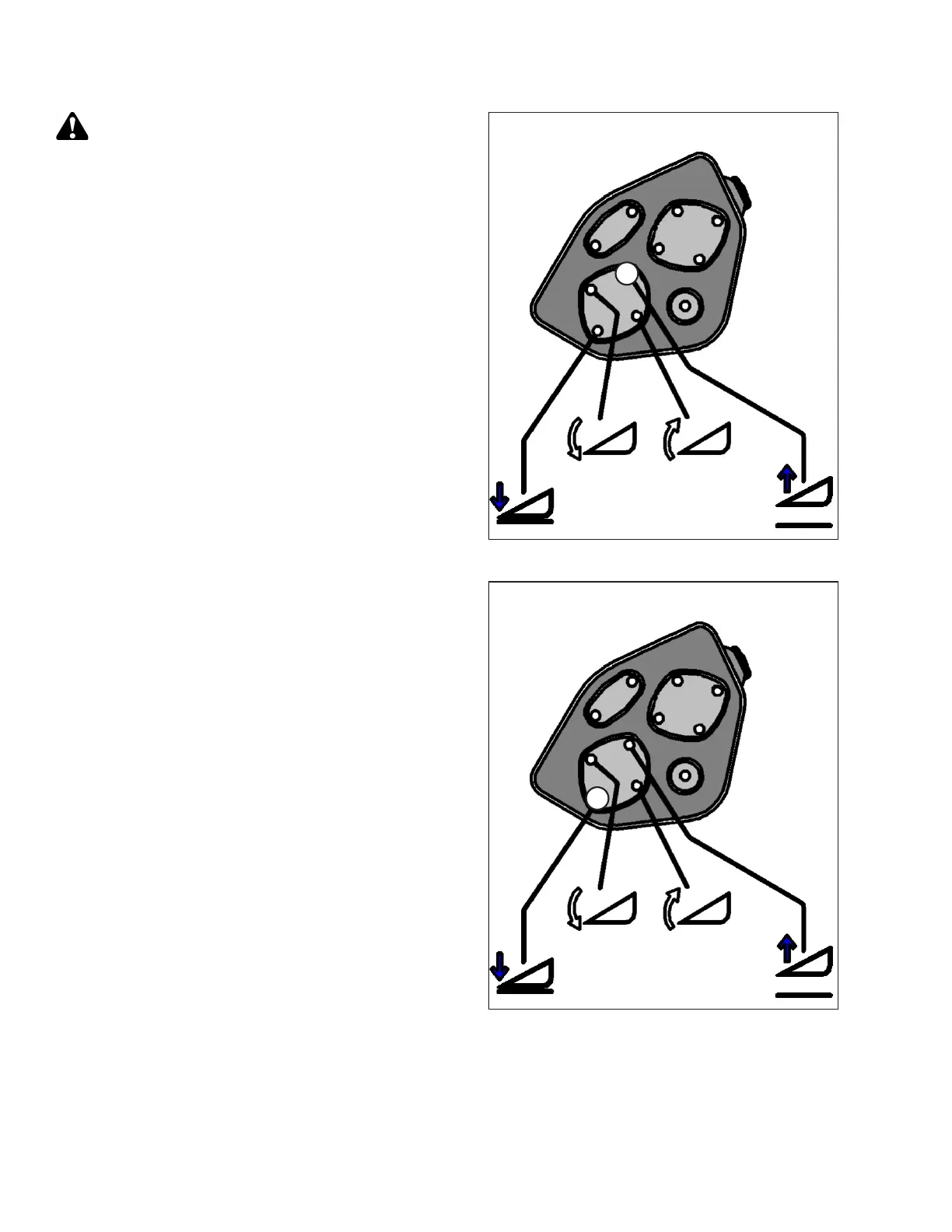

Figure 3.150: Header Height Controls on GSL
CAUTION
Check to be sure all bystanders have cleared the area.
6. Press and hold the HEADER UP button (A) on the
ground speed lever (GSL).
• CALIBRATING HEIGHT is displayed on the
upper line.
• RAISE HEADER HOLD is displayed on the
lower line.
NOTE:
The word HOLD will flash during calibration. RAISE
HEADER DONE will display on the lower line once
calibration is complete.
7. Release the HEADER UP button (A).
• HEIGHT SENSOR CAL is displayed on the
upper line.
• PRESS LOWER HEADER is displayed on the
lower line.
1023540
A
Figure 3.151: Header Height Controls on GSL
8. Press and hold HEADER DOWN button (A) on
the GSL.
NOTE:
The word HOLD will flash during calibration. HT
SENSOR COMPLETE will display on the lower line
once calibration is complete.
9. Release HEADER DOWN button (A).
• TO CALIBRATE SELECT is displayed on the
upper line.
• HEADER HEIGHT is displayed on the lower line.
10. Press right arrow to select next header sensor
calibration or STOP & EXIT. Press SELECT.
Refer to Calibrating the Header Tilt Sensor, page 127 or
Calibrating the Header Float Sensors, page 129.
11. Press PROGRAM to exit programming mode.
