MacDon M205 - Checking and Adjusting Steering Chain Tension

214603 301 Revision A
Checking and Adjusting Steering Chain Tension
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Check steering for binding or excessive play which may be the result of the steering chain being too tight or too
loose. If the steering chain does NOT require adjustment, skip the following steps.
2. If the chain tension requires adjustment, swivel the operator’s station to position steering column close to
the door.
1000255
A
B
C

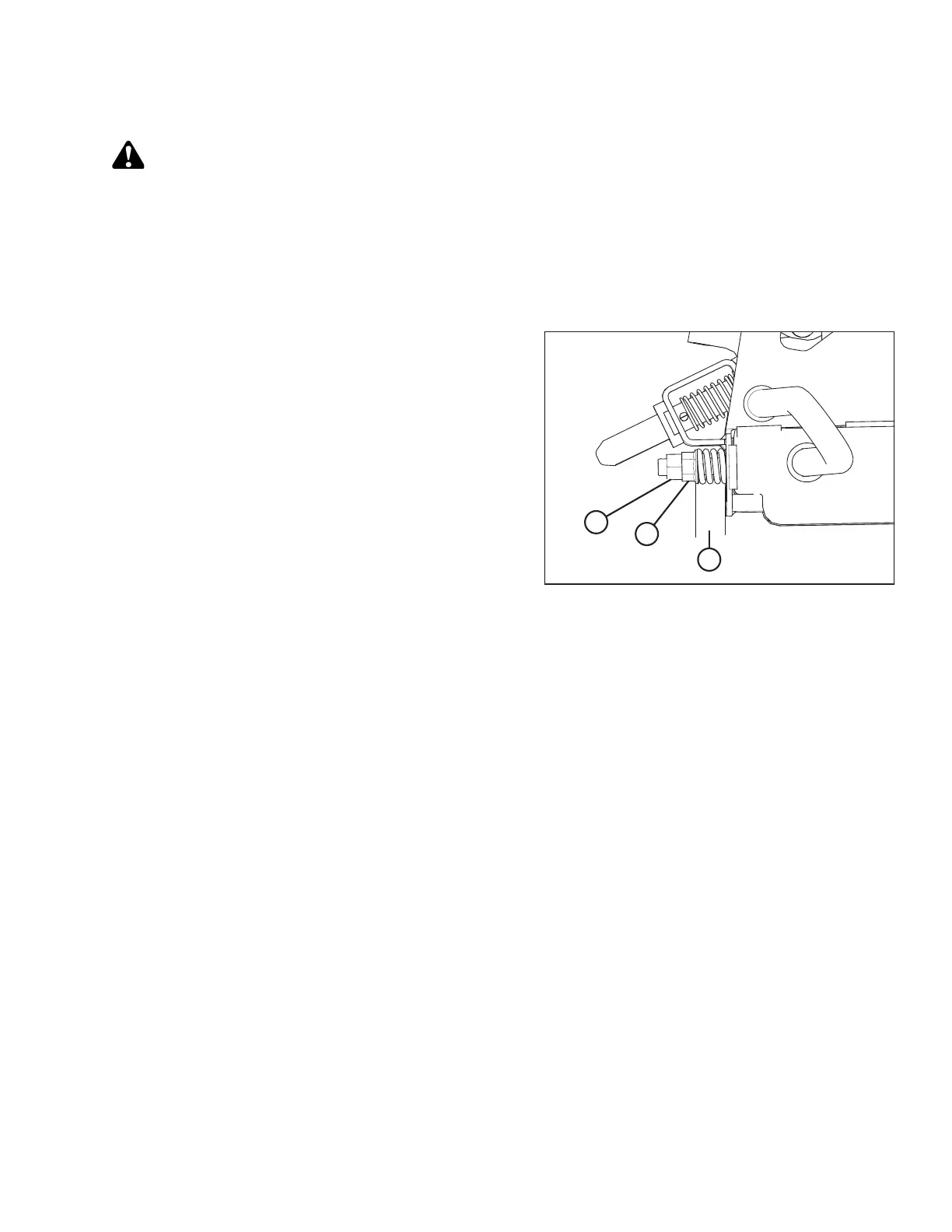

Figure 5.26: Steering Tension Adjuster
3. At the base of the steering column, check
dimension (C) at spring. It should be 16 mm (5/8 in.).
4. Adjust dimension as follows:
a. Loosen nut (A) and turn nut (B) to achieve 16 mm
(5/8 in.) dimension (C).
b. Tighten nut (A) against nut (B) to secure position.
c. Check that steering chain is taut and steering shaft
is free to rotate.
MAINTENANCE AND SERVICING
