MacDon M205 - Opening Platforms (Major Service Position)

214603 290 Revision A
1000412
A
B

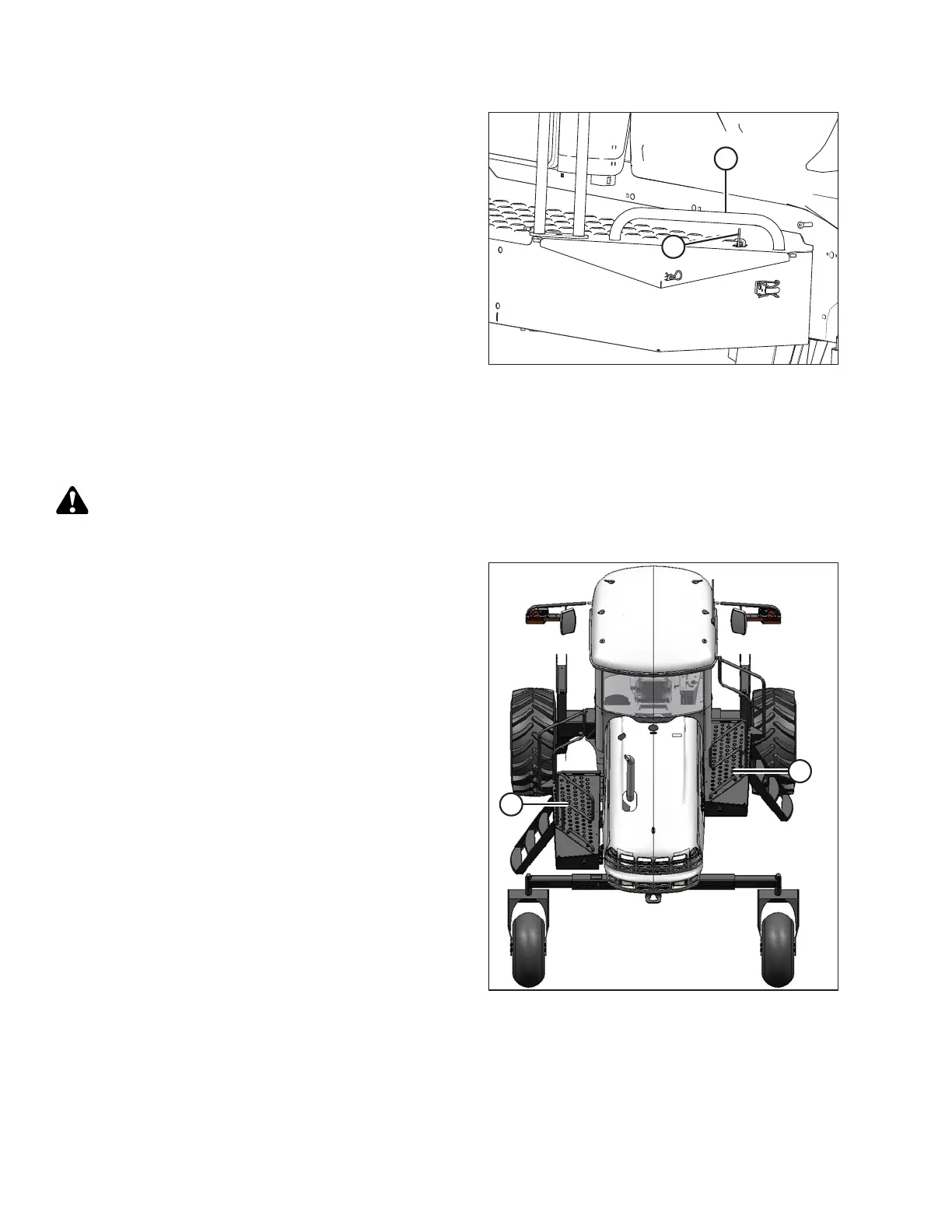

Figure 5.8: Platform Latch
1. If platform is latched in the open position, push latch (A)
to unlock it.
2. Grasp handle (B) on platform and push forward until it
stops and latch (A) engages.
NOTE:
Ensure the platform is latched properly before using.
5.3.3 Opening Platforms (Major Service Position)
To improve access to the hydraulics plumbing or battery, the platforms can be swung away from the windrower.
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
1006274
A
B
Figure 5.9: Platforms
This procedure describes how to open the cab-forward left
platform (A). The same procedure is used for the right
platform (B).
1. Open the hood. Refer to 5.2.1 Opening Hood (Lower Position), page 284.
IMPORTANT:
Failure to open hood will result in damage to the hood when the platform is moved.
MAINTENANCE AND SERVICING
