214603 118 Revision A
1010011
REEL SPEED
ENABLED/LOCKED
C###
X###
D
C
B
A

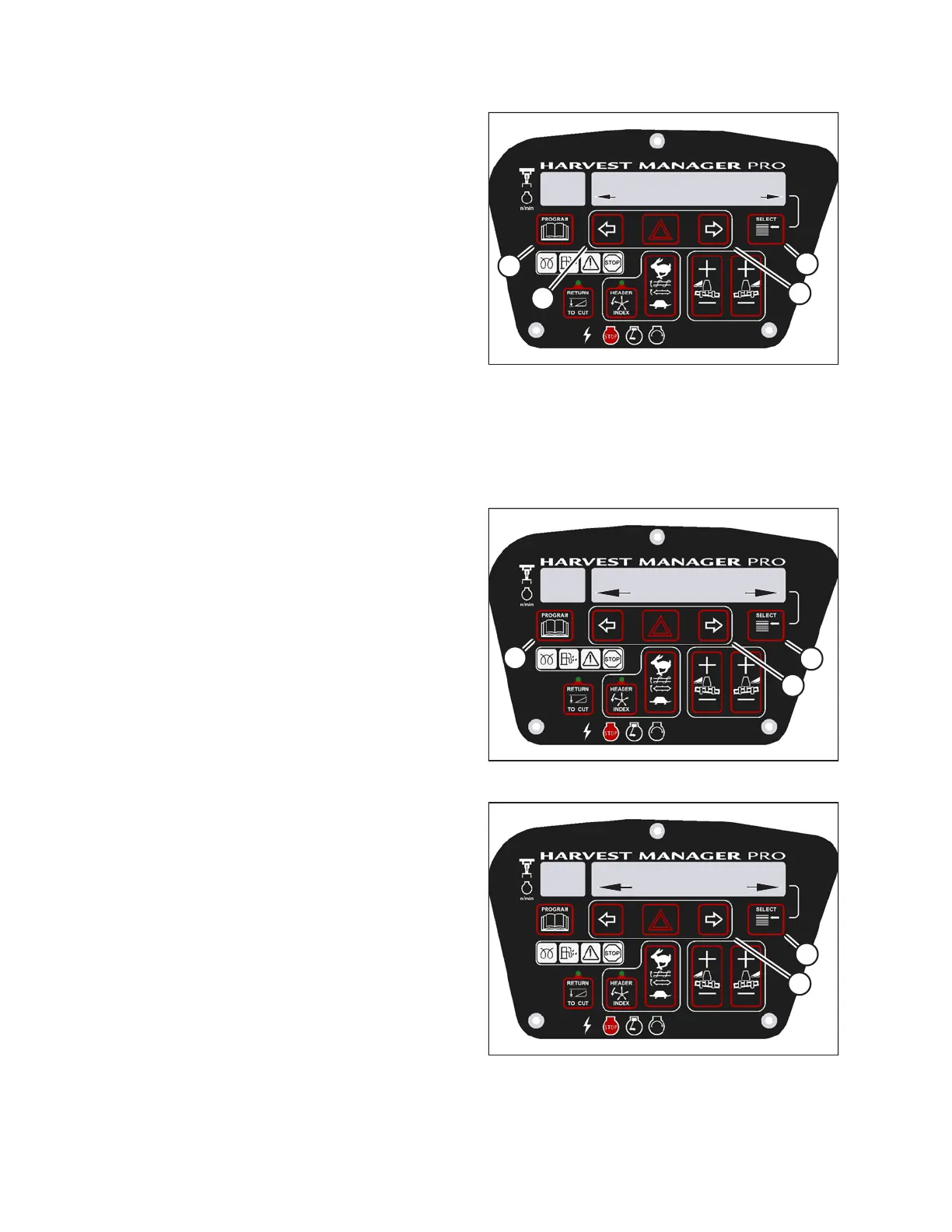

Figure 3.129: M205 Reel Speed Control Lock
6. Press SELECT (D) until REEL SPEED is displayed on
the upper line.
• ENABLED/LOCKED is displayed on the lower line.
7. Press left arrow (B) to enable REEL SPEED control
switch.
Press right arrow (C) to lock REEL SPEED control
switch.
8. Press PROGRAM (A) to exit programming mode, or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
3.19.9 Displaying Activated Cab Display Lockouts
Displaying the activated control locks allows you to quickly determine which controls are locked on the cab display
module (CDM).
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C
Figure 3.130: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1010017
VIEW CONTROL LOCKS
NO/YES
C###
X###
B
A
Figure 3.131: M205 Control Locks
4. Press SELECT (B) until VIEW CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right arrow (A) to select YES. Press SELECT (B).
HEADER TILT is displayed on the upper line.
• The control switch status is displayed on the lower
line. The hours displayed indicate when a switch
was enabled or locked.
