Servicing Drive Wheel
To service a drive wheel, refer to the following procedures:
• Raising Drive Wheel, page 403
• Removing Drive Wheel, page 404
• Installing Drive Wheel, page 405
• Lowering Drive Wheel, page 406
Raising Drive Wheel
This procedure can be used on both drive wheels.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
CAUTION
Header MUST be removed and NO weight box installed. Use a hydraulic jack with minimum lifting capacity
of 2268 kg (5000 lb.) to provide adequate support for the machine.
1. Remove the header.
2. Park windrower on level ground and block all wheels.

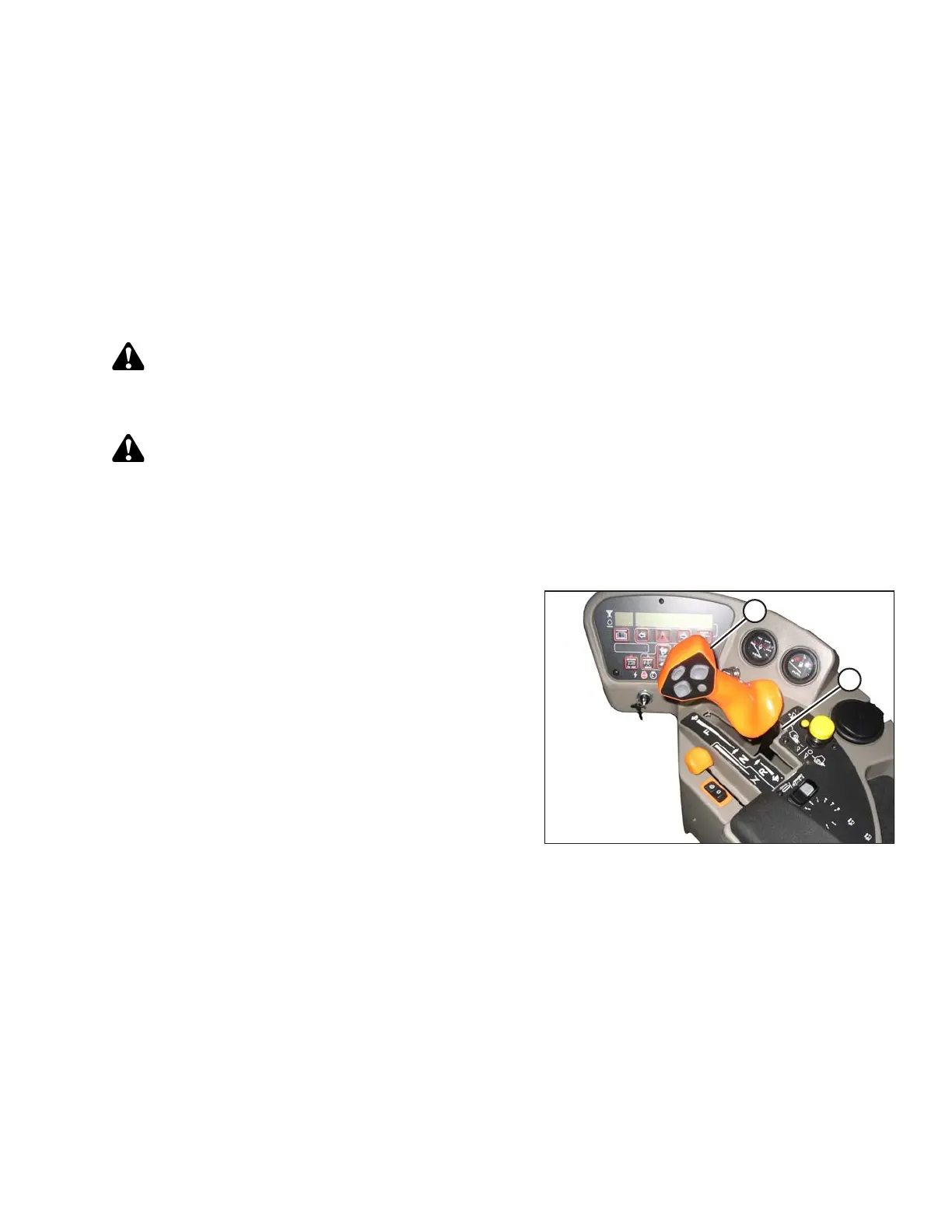

Figure 5.208: Ground Speed Lever
3. Place ground speed lever (GSL) (A) in N-DETENT (B),
shut down engine, and remove key.
MAINTENANCE AND SERVICING
