MacDon M205 - Installing Formed Caster Wheel; Removing Formed Caster Wheel

214603 412 Revision A
Removing Formed Caster Wheel
CAUTION
Wheel assemblies are heavy. Support wheel assembly before removing axle bolts.
1. Raise caster wheel. Refer to Raising Caster Wheel (Formed and Forked), page 408.
1021081
A
B

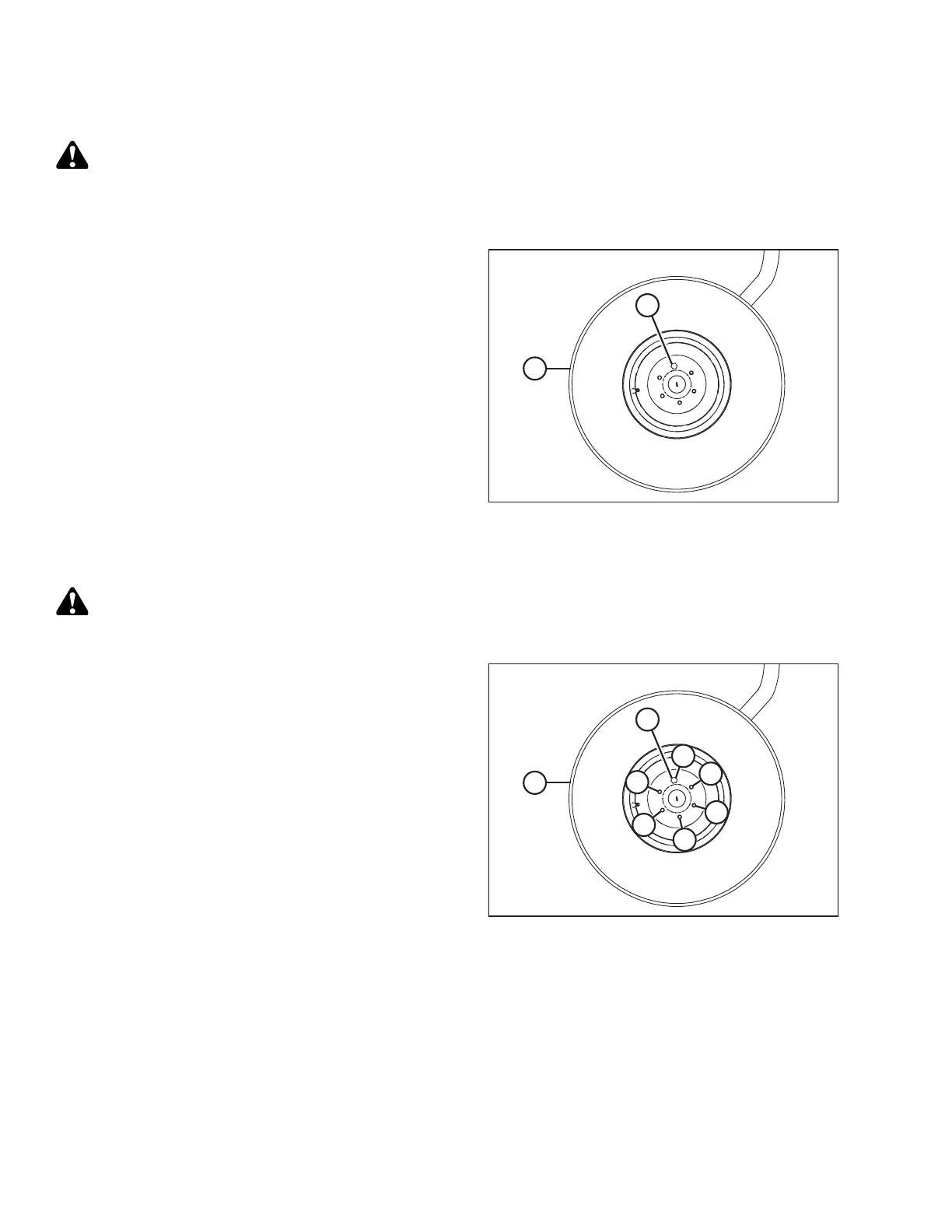

Figure 5.224: Formed Caster Wheel
2. Remove the six bolts (A) that secure wheel (B) to
the hub.
3. Remove wheel (B).
Installing Formed Caster Wheel
CAUTION
Wheel assemblies are heavy. Support wheel assembly before removing axle bolts.
1000548
A
B
1
2
3
4
5
6
Figure 5.225: Formed Caster Wheel
1. Position wheel assembly (B) on hub, and install six
wheel bolts (A).
2. Refer to the tightening sequence at right and torque
bolts (A) to 163 Nm (120 lbf·ft).
3. Lower caster wheel. Refer to Lowering Caster Wheel
(Formed and Forked), page 410.
MAINTENANCE AND SERVICING
