214603 181 Revision A

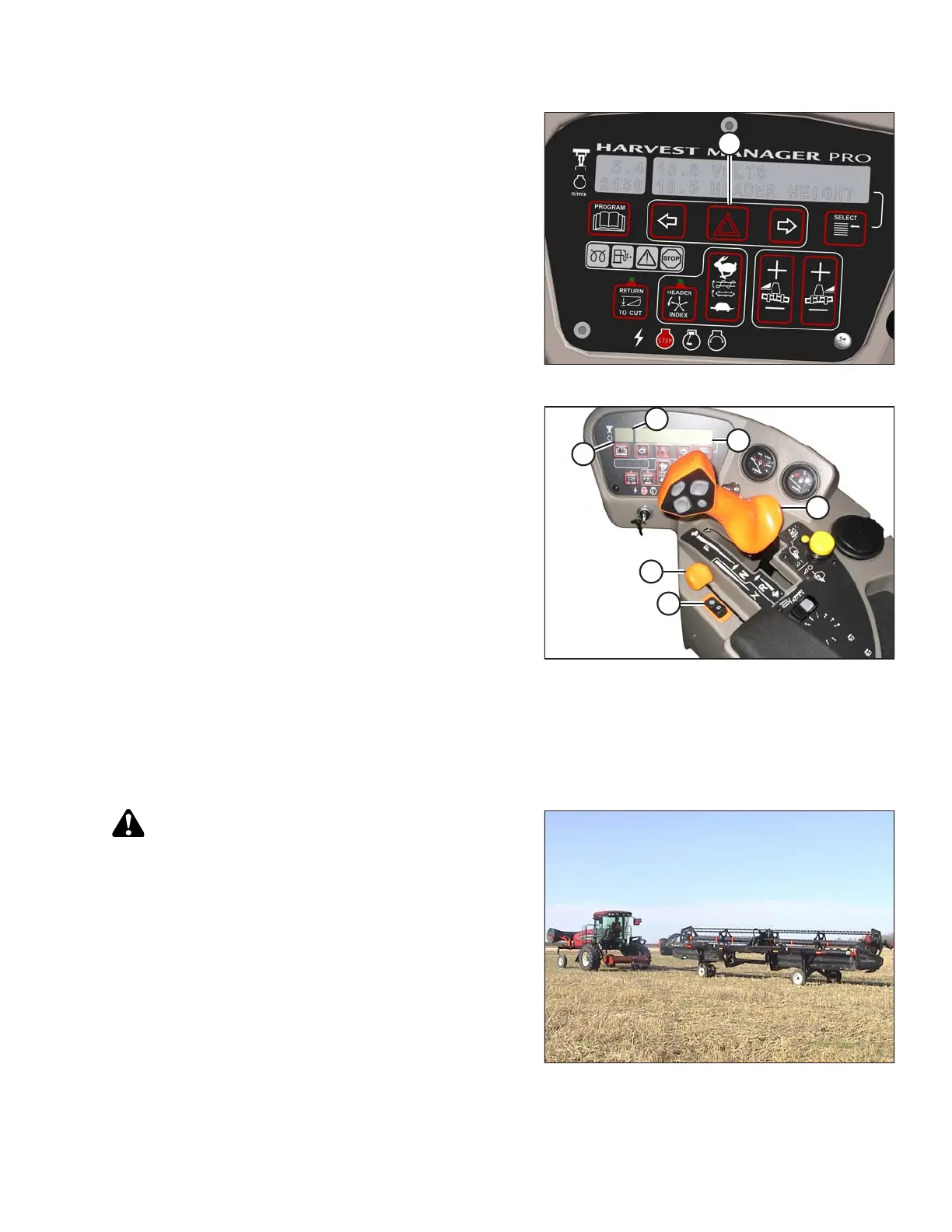

Figure 4.34: CDM
8. Press switch (A) on cab display module (CDM) to
activate hazard lights.
IMPORTANT:
Switch ON the beacon and hazard lights when travelling
on the road with the transmission in low range.
Figure 4.35: Operator Console
9. Set GROUND SPEED RANGE switch (A) for ROAD
speed. CDM will display ROAD GEAR at location (F) if
windrower is in engine-forward mode.
NOTE:
Windrower can be moving, but speed must be less than
8 km/h (5 mph) for road gear to engage.
10. Slowly push throttle (B) to full forward (operating
speed). CDM should display 2320–2350 rpm (C).
11. Slowly move the ground speed lever (GSL) (E) forward
to desired speed which will be displayed at location (F).
12. If towing a header, refer to Towing Header with
Windrower, page 181.
Towing Header with Windrower
The windrower can be used to tow a MacDon draper header that has the slow speed transport option installed.
Ensure the optional weight box or an approved header transporter is installed on the windrower to transfer weight to
the lift arms.
Figure 4.36: Towing a Header
WARNING
• A windrower without a header or weight box must
NOT be used to tow headers due to reduced traction
and possible loss of control.
• For towed equipment without brakes, do NOT exceed
32 km/h (20 mph).
OPERATION
