Setting the Reel Only Speed

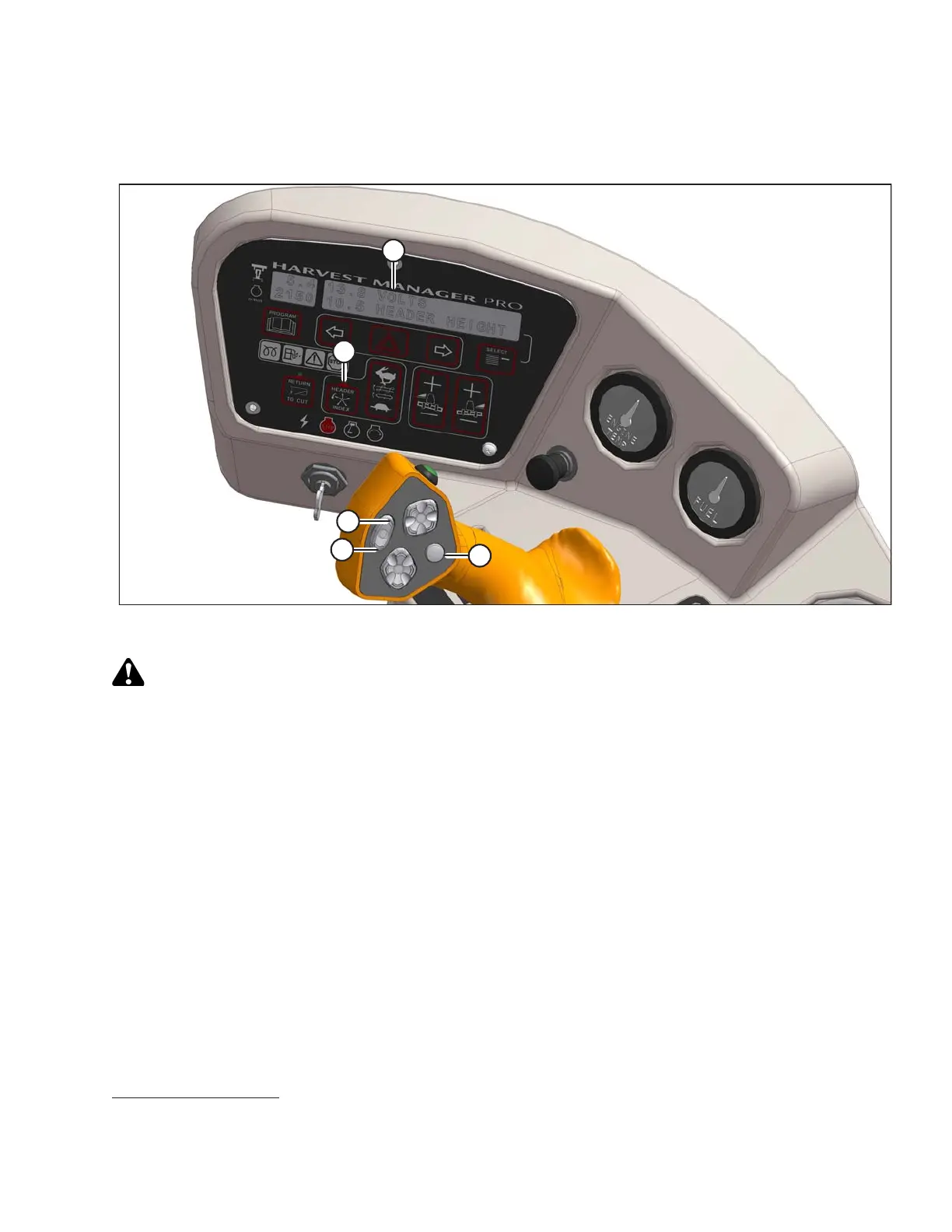

Figure 4.224: Operator Console
A - Display B - Header Index C - Reel Fast
D - Reel Slow E - Display Selector
CAUTION
Check to be sure all bystanders have cleared the area.
Set the speed of the reel independently of ground speed as follows while operating the windrower:
NOTE:
This procedure is similar to changing the draper speed using the draper speed control switch while in motion. Refer
to Setting Draper Speed Independent of Ground Speed, page 270. These changes become the new set points.
1. Set HEADER INDEX (B) to OFF.
2. Press REEL FAST (C) or REEL SLOW (D) on the ground speed lever (GSL) until display (A) shows ##.
## REEL MPH with desired reel speed.
The displayed value (##.##) = reel speed (rpm or mph or km/h
20
)
OPERATION
20. Depending on cab display module (CDM) programming.
