4.3.5 Engine Operation
Starting the Engine
Carefully review the following topic before attempting to start the engine. It contains important information about
Operator safety and the engine ignition system.
DANGER
• Avoid possible injury or death from a runaway machine.
• This machine has safety devices which allow the engine to start only when the ground speed lever is in
N-DETENT, the steering wheel is locked in the NEUTRAL position, and the header drive switch is in the
OFF position. Under no circumstances are these devices to be deliberately rewired or misadjusted so
that the engine can be started with controls out of NEUTRAL.
• Do NOT start engine by shorting across starter or starter relay terminals. Machine will start with drive
engaged and move if normal starting circuitry is bypassed.
• Start engine only from operator’s seat with controls in NEUTRAL. NEVER start engine while standing
on ground. Never try to start engine with someone under or near machine.
• Before starting engine, be sure there is plenty of ventilation to avoid asphyxiation.
WARNING
If starter engages with steering wheel unlocked, ground speed lever out of NEUTRAL, or header clutch
engaged, DO NOT START ENGINE. Contact your Dealer.
IMPORTANT:
Do NOT tow machine to start the engine. Damage to hydrostatic drives will result.

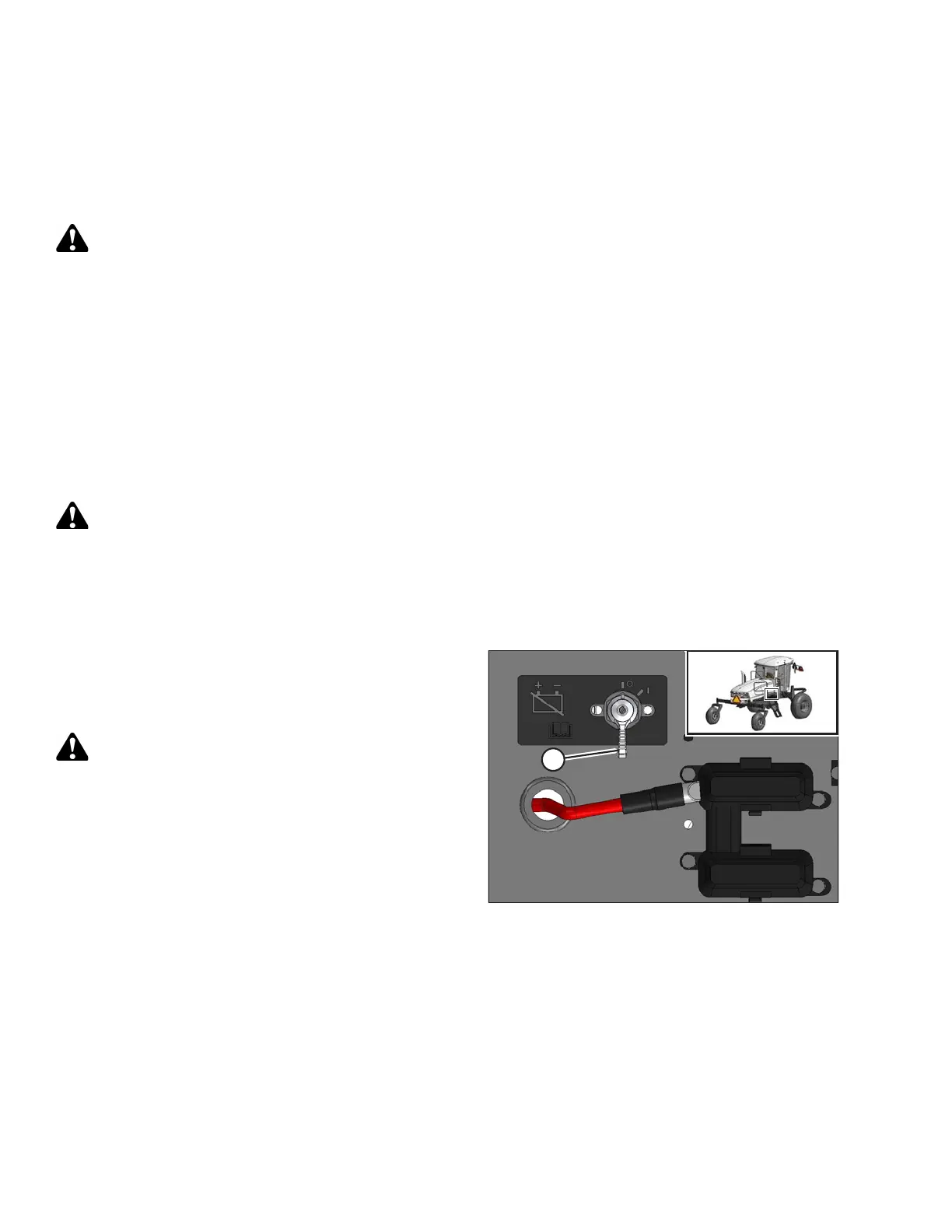

Figure 4.7: Battery Disconnect Switch
1. The battery main disconnect switch (A) is located on the
right frame rail, behind the maintenance platform, and
can be accessed by moving the platform. Ensure switch
is in the POWER ON position.
WARNING
Before starting engine, fasten your seat belt and ensure
trainer’s seat belt is used if seat is occupied. Seat belts
improve safety if used and maintained properly.
OPERATION
