5.3.4 Closing Platforms (Major Service Position)
CAUTION
Do NOT stand on an unlocked platform. It is unstable and may cause you to fall.
NOTE:
This procedure is applicable to both platforms. Left side is shown.
1000067
A
B

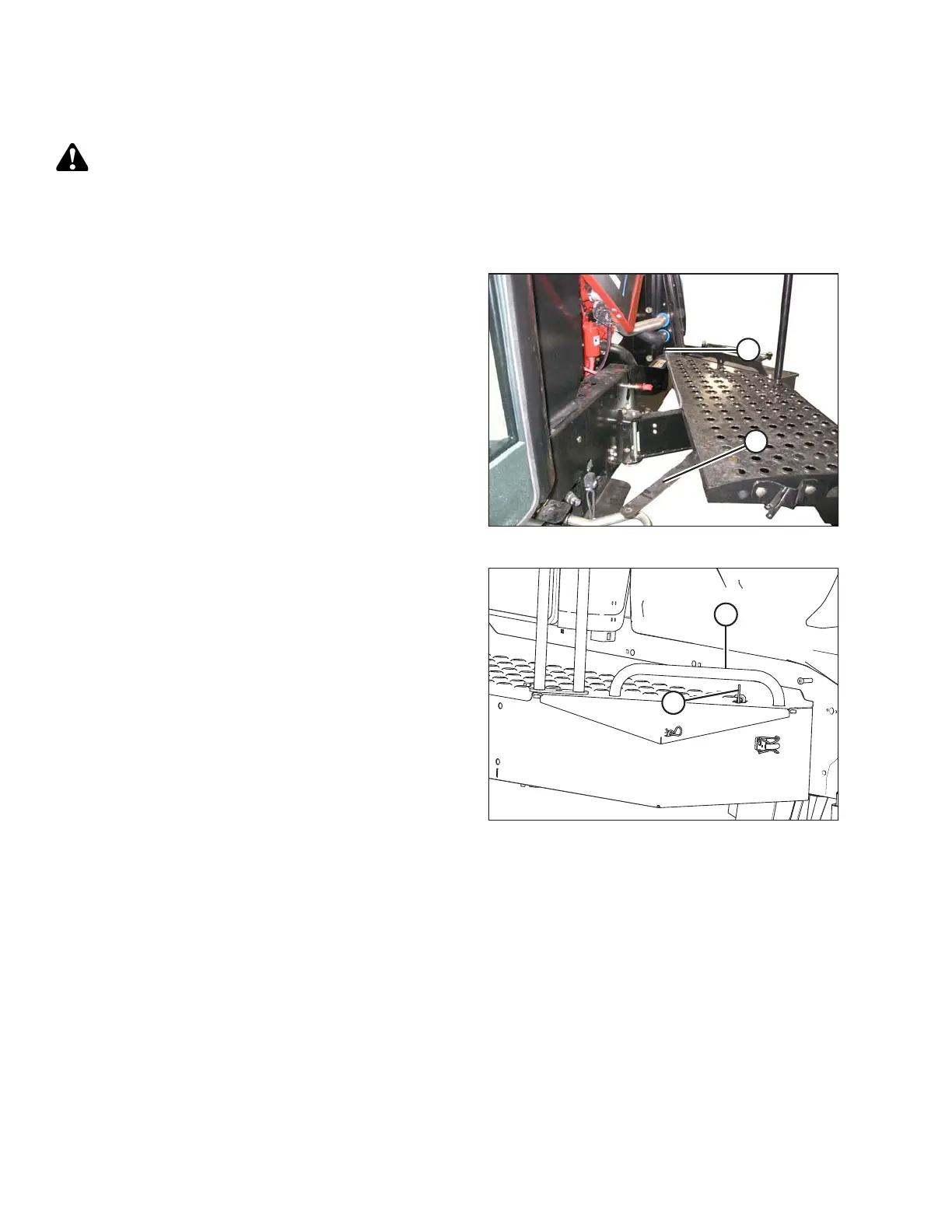

Figure 5.12: Platform
1. Swing link (A) all the way forward.
2. Push the front (cab-forward) end of platform towards
the frame while moving the platform forward
(cab-forward).
3. Position link (A) on bracket and install bolt and nut.
Tighten enough so that link can still swivel on bracket.
1000412
A
B
Figure 5.13: Platform Latch
4. Move platform (B) forward (cab-forward) until it stops
and latch (A) engages.
5. Close the hood. Refer to 5.2.2 Closing Hood (Lower
Position), page 285.
