Setting the Header Index Mode
Header Index feature is not applicable to rotary headers.
For more information on the Header Index feature, refer to 4.6.4 Reel Speed, page 264 and 4.6.5 Draper Speed,
page 268.
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and Detaching
Headers, page 217.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

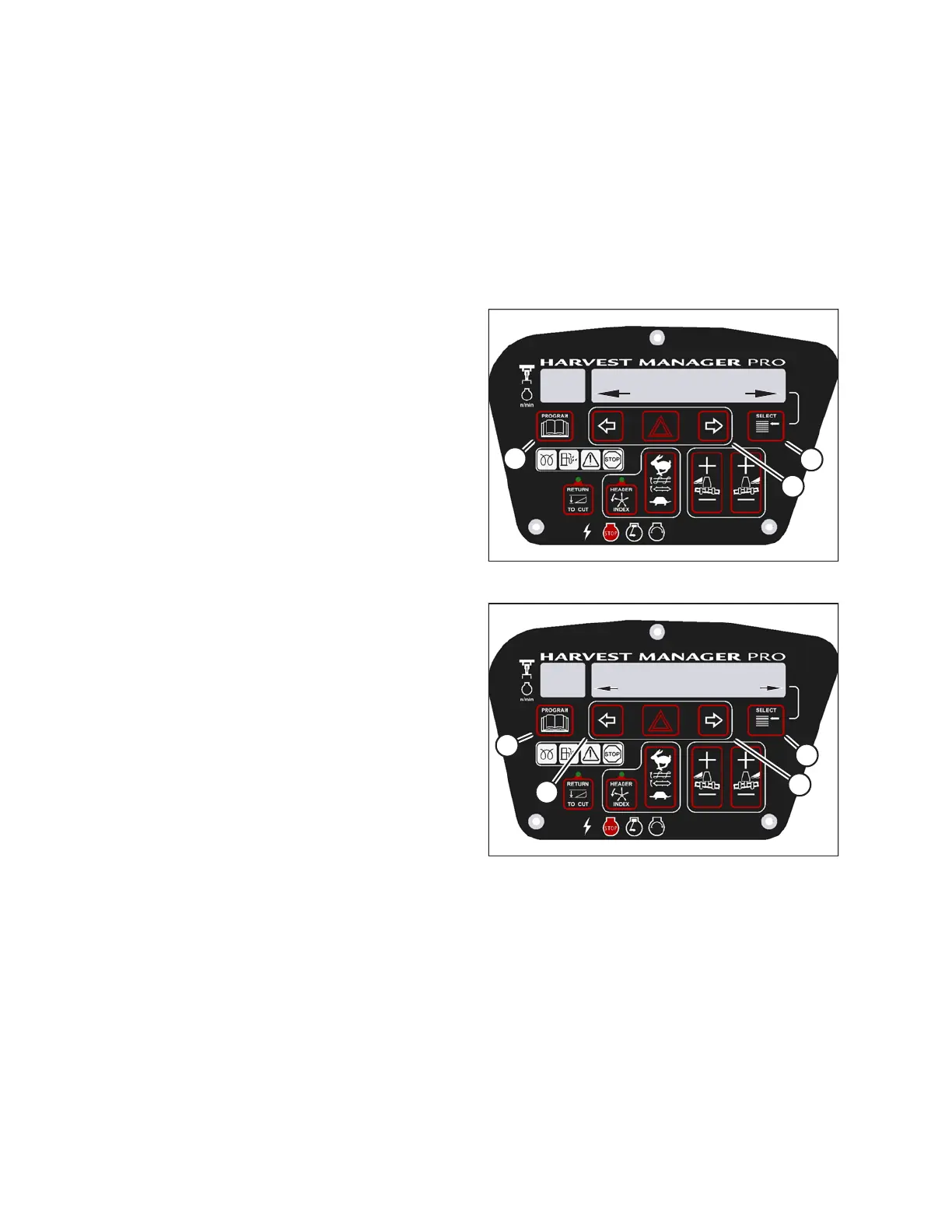

Figure 3.82: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1009992
HEADER INDEX MODE?
REEL & CONVEYOR
C###
X###
D
C
B
A
Figure 3.83: M205 Header Index Mode
4. Press SELECT (D) until HEADER INDEX MODE? is
displayed on the upper line.
• REEL & CONVEYOR or REEL ONLY is displayed
on the lower line.
5. Press left (B) or right (C) arrows to set HEADER INDEX
mode. Press SELECT (D).
6. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
