MacDon M205 - Testing the Reel Drive Circuit Activate Function Using the Cab Display Module (CDM)

214603 147 Revision A
1010036
DRAPER DRV SPD XXXX
D 0 P 0
- +
C###
X###
D
D
B
A
C
E

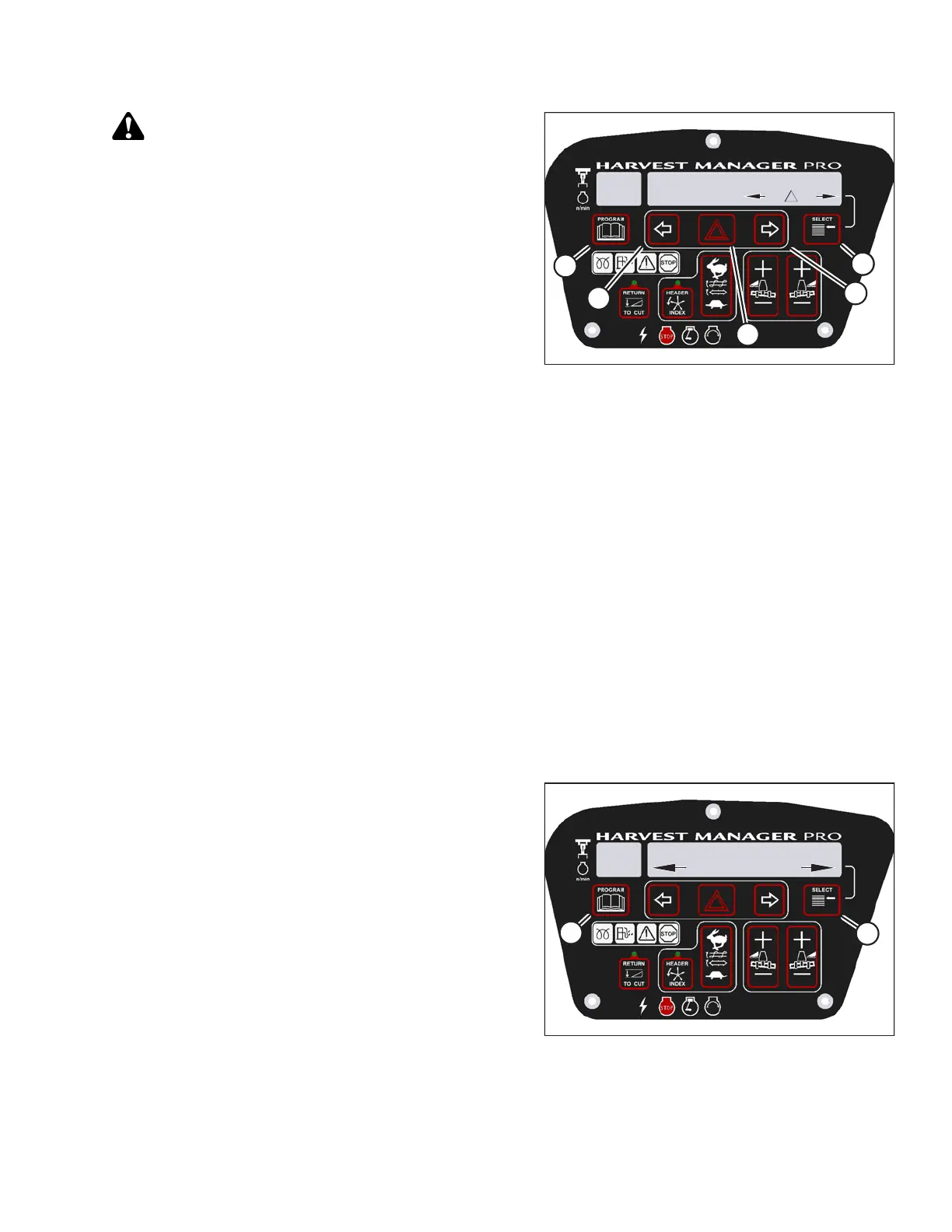

Figure 3.199: M205 Draper Drive
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (B) until DRAPER DRV SPD XXXX is
displayed on the upper line.
IMPORTANT:
Do NOT overspeed the drapers.
8. Press and hold HAZARD (C) button.
• Press left arrow (B) to decrease draper speed.
• Press right arrow (D) to increase draper speed.
IMPORTANT:
Verify the draper drive is functioning properly.
9. Release the HAZARD (C) button. The drapers will stop.
10. Press PROGRAM (A) to exit programming mode or
press SELECT (E) to proceed to next ACTIVATE
FUNCTION.
Testing the Reel Drive Circuit Activate Function Using the Cab Display Module (CDM)
IMPORTANT:
Do not overspeed a drive. Overspeeding can lead to vibration, belt failures, or other overspeeding related
problems.
NOTE:
• The header MUST be attached to windrower to follow this procedure. For more information, refer to 4.5
Attaching and Detaching Headers, page 217.
• This procedure does not apply to rotary disc headers.
• The engine MUST be running to perform this procedure.
1. Start the engine.
1022066
C###
X###
WINDROWER SETUP?
NO/YES
A
B
Figure 3.200: M205 CDM Programming Buttons
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
OPERATOR’S STATION
