214603 298 Revision A
Adjusting Ground Speed Lever (GSL) Fore-Aft Movement
The GSL should remain as positioned by the Operator yet be movable without excessive force. The spring is set at
the factory to 32 mm (1-1/4 in.).
Adjust as follows:

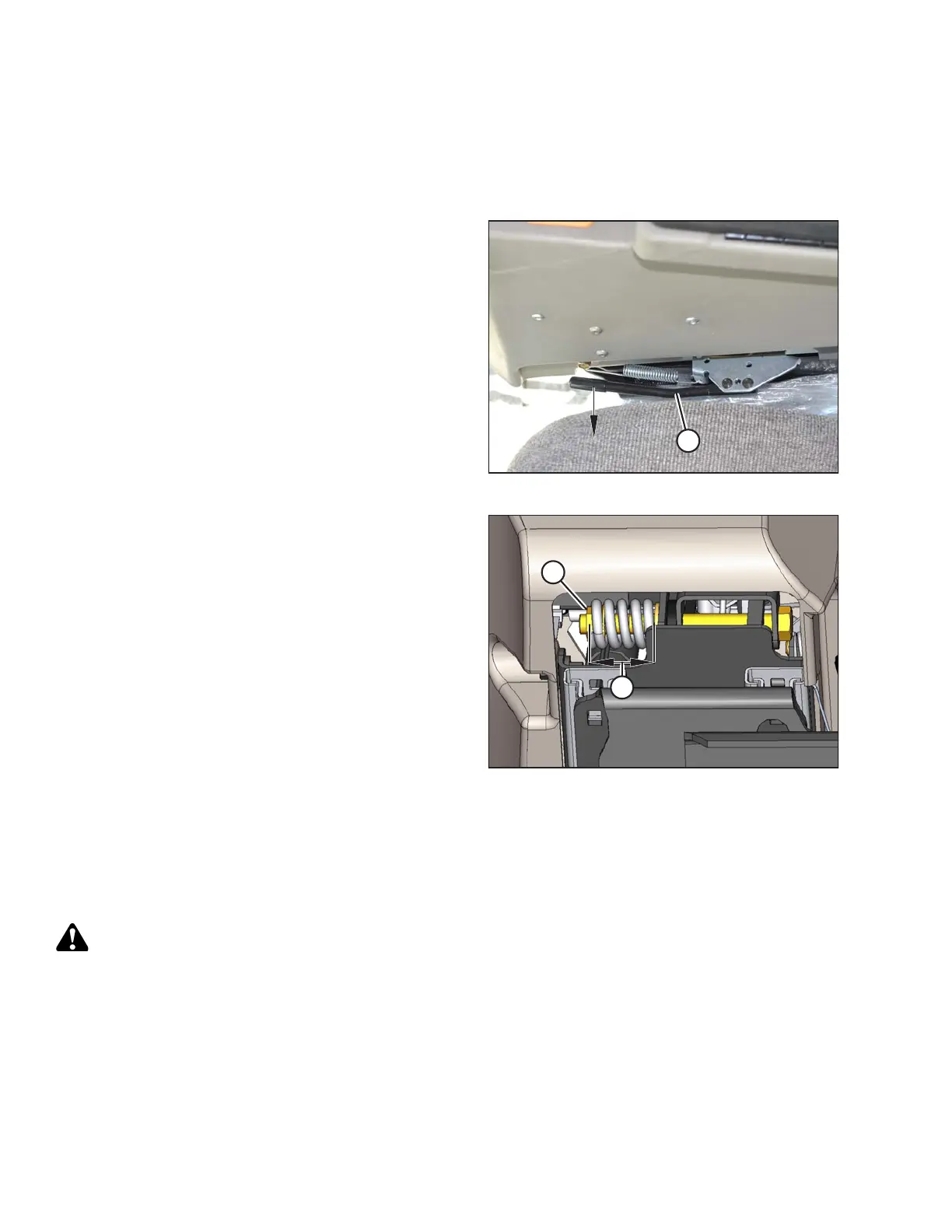

Figure 5.19: Seat Adjustment Handle
1. Pull handle (A) toward the operator’s seat and move the
console fully forward to ease accessibility from the
underside of the console.
Figure 5.20: GSL Adjustment Spring
2. Set spring dimension (B) to 32 mm (1-1/4 in.).
3. To increase the pivot resistance, turn the nut (A)
clockwise to compress the spring.
4. To decrease the resistance, turn the nut (A)
counterclockwise to release the spring tension.
5.5.4 Steering Adjustments
Checking Steering Link Pivots
The following checks should be performed every year:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
MAINTENANCE AND SERVICING
