MacDon M205 - Testing the Draper Drive Circuit Activate Function Using the Cab Display Module (CDM)

214603 145 Revision A
1010024
ACTIVATE FUNCTIONS?
NO/YES
C###
X###
B
A

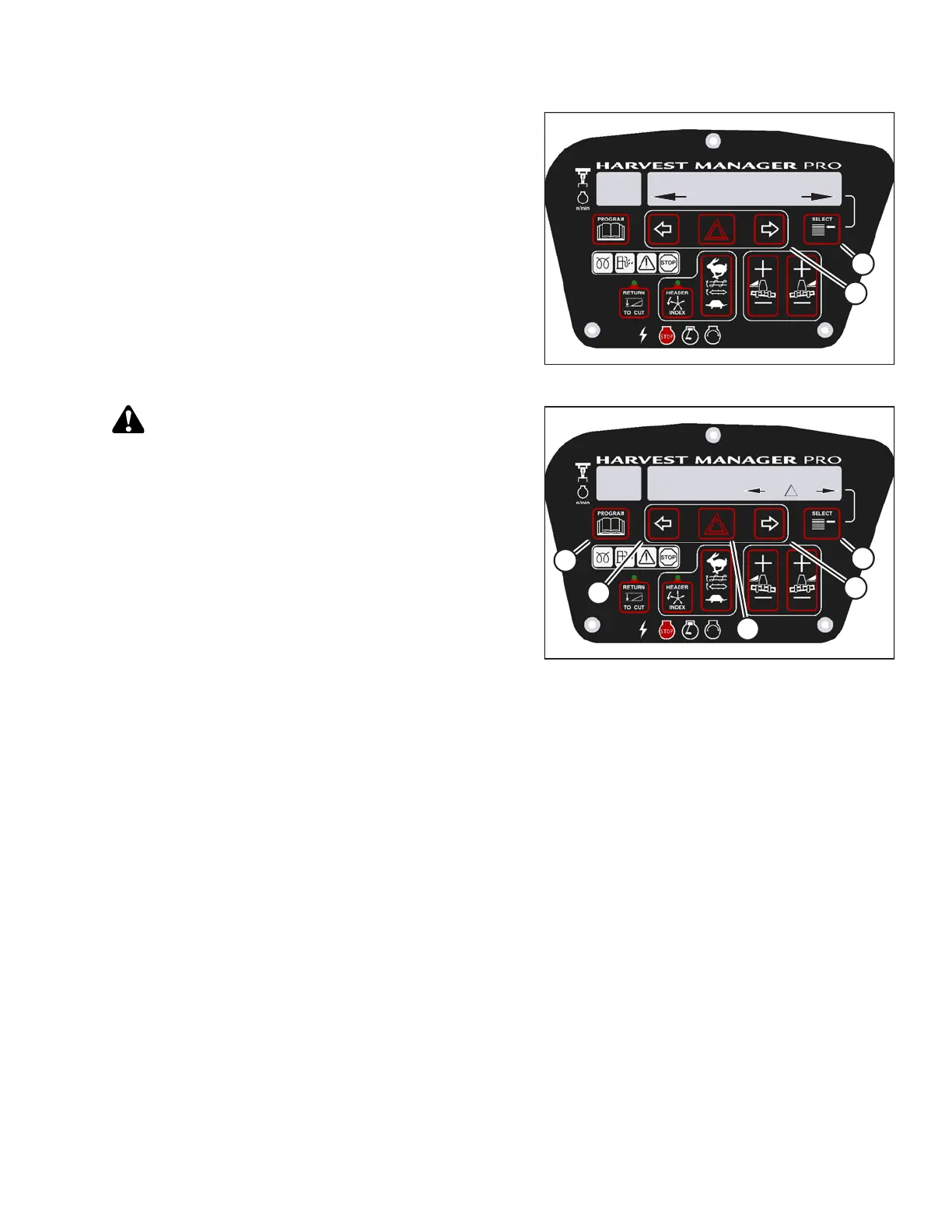

Figure 3.194: M205 Functions
5. Press SELECT (B) until ACTIVATE FUNCTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right arrow (A) to select YES. Press SELECT (B).
• ACTIVATE HEADER HT is displayed on the
upper line.
1010035
KNIFE DRV SPD XXXX
D 0 P 0
- +
C###
X###
D
D
B
A
C
E
Figure 3.195: M205 Knife Drive
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (E) until KNIFE DRIVE SPD XXXX is
displayed on the upper line.
IMPORTANT:
Do NOT overspeed the knife drive.
8. Press and hold HAZARD (C) button.
• Press left arrow (B) to decrease knife speed.
• Press right arrow (D) to increase knife speed.
IMPORTANT:
Verify the knife drive is functioning properly.
9. Release the HAZARD (C) button. The knife will stop.
10. Press PROGRAM (A) to exit programming mode or
press SELECT (E) to proceed to next ACTIVATE
FUNCTION.
Testing the Draper Drive Circuit Activate Function Using the Cab Display Module (CDM)
IMPORTANT:
Do not overspeed a drive. Overspeeding can lead to vibration, belt failures, or other overspeeding related
problems.
NOTE:
• A draper header MUST be attached to windrower to follow this procedure. For more information, refer to 4.5
Attaching and Detaching Headers, page 217.
• The engine MUST be running to perform this procedure.
OPERATOR’S STATION
