3.19.14 Troubleshooting Header Problems
You can test individual parts of the header as part of a troubleshooting routine.
Testing the Header Up/Down Activate Function Using the Cab Display Module (CDM)
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
• The engine MUST be running to perform this procedure.
1007188
C###
X###
WINDROWER SETUP?
NO/YES
A
B

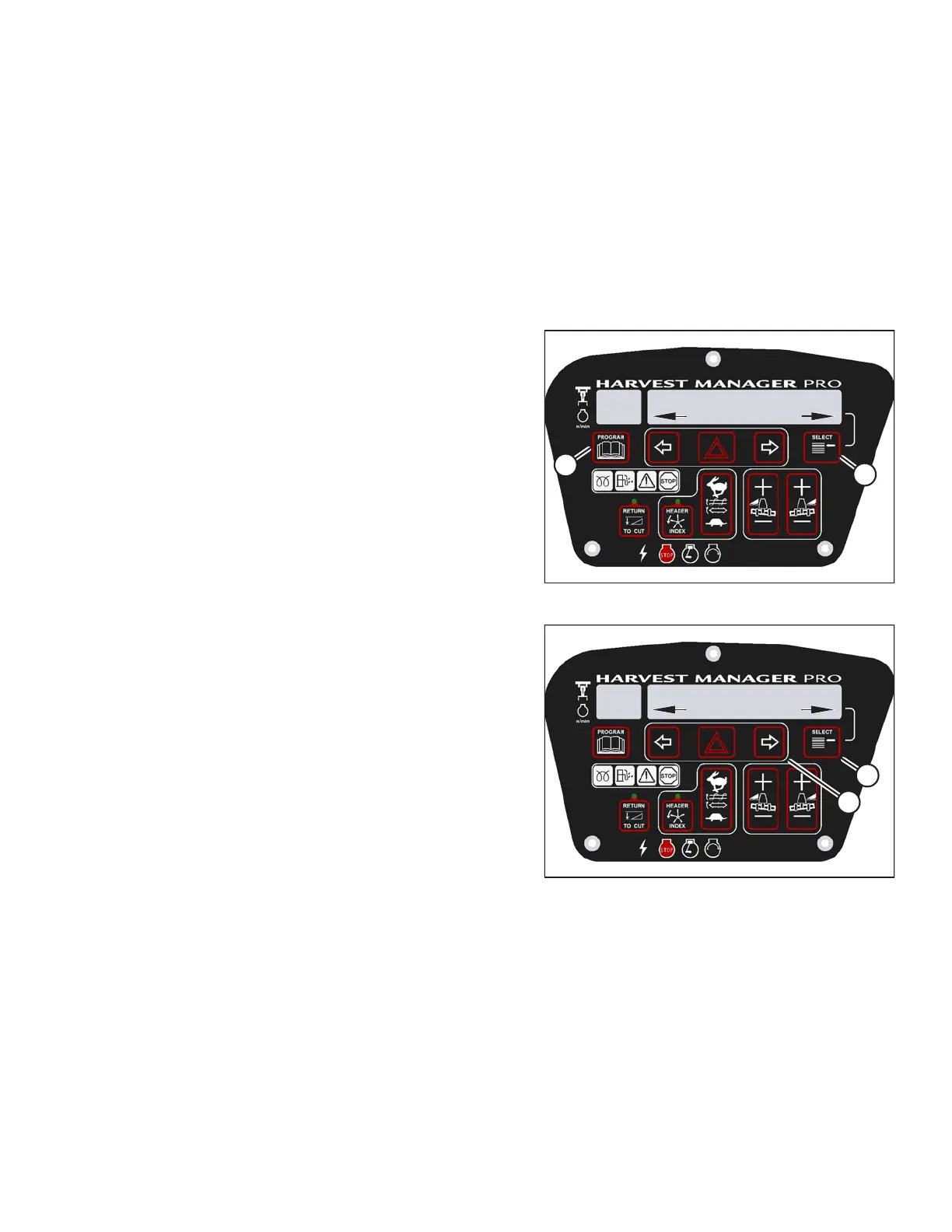

Figure 3.180: M205 CDM Programming Buttons
1. Start the engine.
2. Press PROGRAM (A) and SELECT (B) on cab display
module (CDM) to enter programming mode. Press
SELECT (B).
• WINDROWER SETUP? is displayed on the
upper line.
1010019
DIAGNOSTIC MODE?
NO/YES
C###
X###
A
B
Figure 3.181: M205 Diagnostic Functions
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right arrow (A) to select YES. Press SELECT (B).
