MacDon M205 - Installing Secondary Fuel Filter

214603 327 Revision A
1007572
A
B

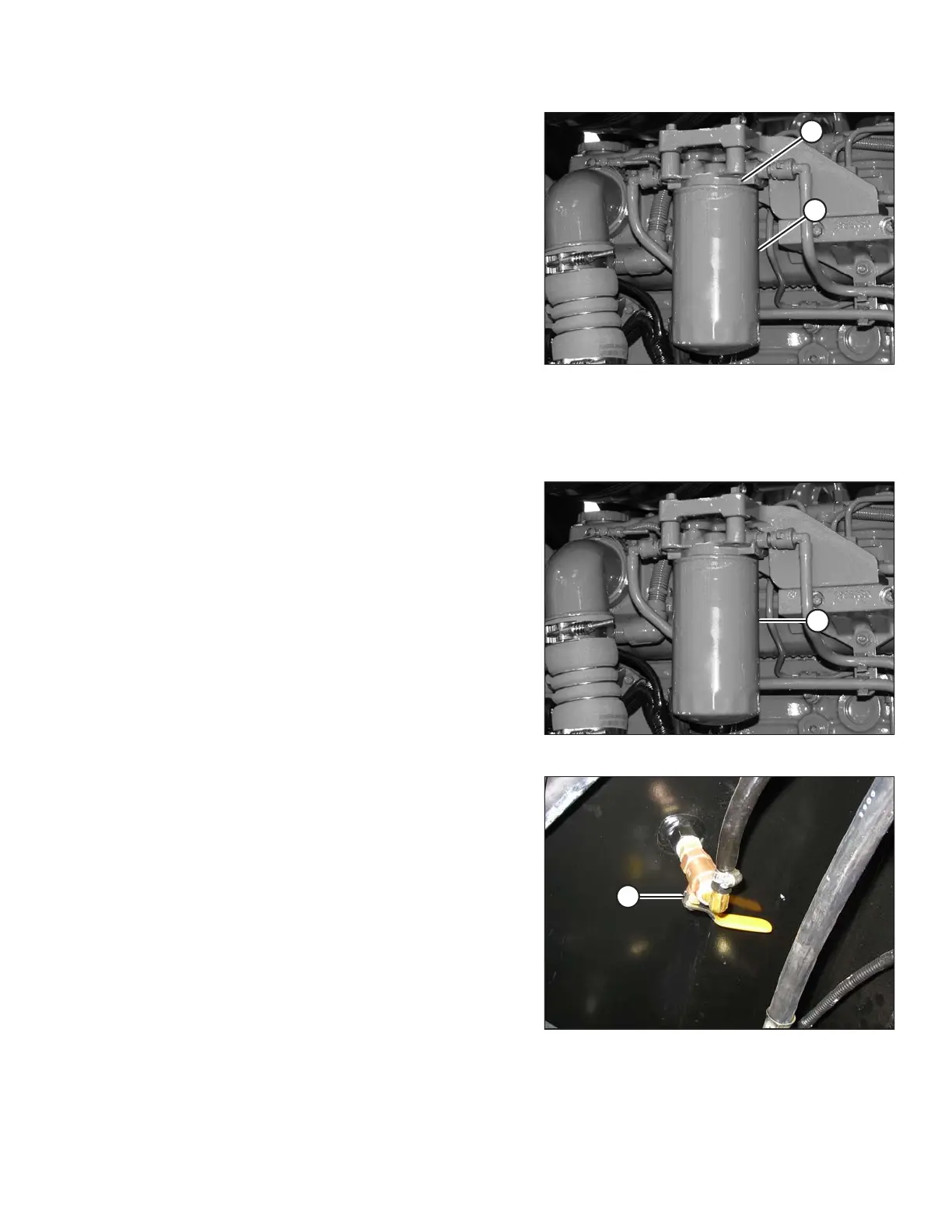

Figure 5.72: Secondary Fuel Filter
3. Clean around secondary filter head (A).
4. Place a container under the filter to catch spilled fluid.
5. Remove filter (B) with a filter wrench.
6. Clean gasket mating surface.
Installing Secondary Fuel Filter
For secondary fuel filter replacement part number, refer to 8.2.4 Filter Part Numbers, page 462.
1022762
A
Figure 5.73: Secondary Fuel Filter
1. Screw the new secondary filter (A) onto the filter mount
until the gasket contacts the filter head.
2. Tighten the filter an additional 1/2 to 3/4 turn by hand.
IMPORTANT:
Do NOT use a filter wrench to install the filter.
Overtightening can damage the gasket and filter.
1000112
A
Figure 5.74: Fuel Shut-off Valve
3. Open fuel valve (A) under fuel tank.
4. Prime the fuel system. Refer to Priming Fuel System,
page 330.
