MacDon M205 - Display Selector Switch; Reel Position Switches

214603 72 Revision A
Display Selector Switch
1009342
A

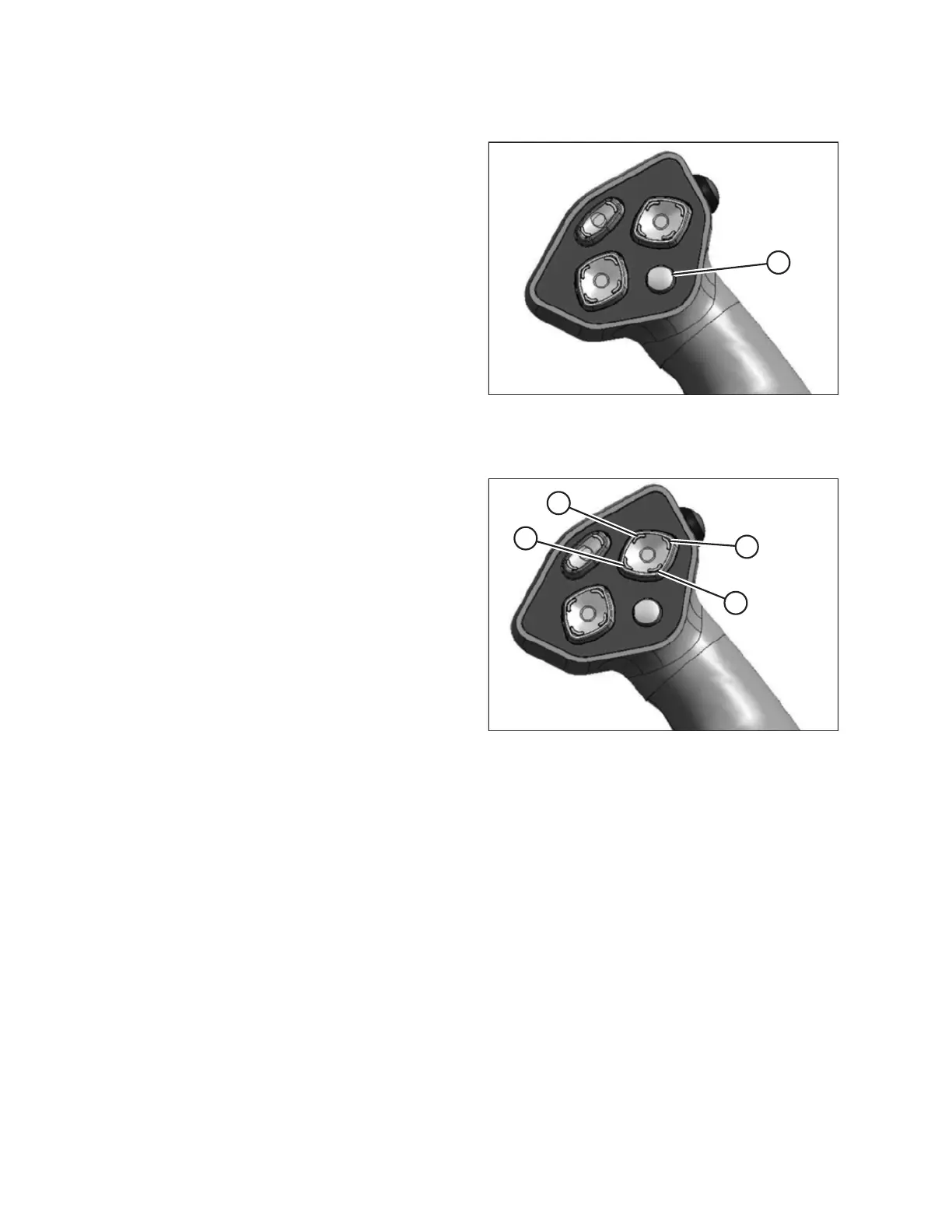

Figure 3.61: Ground Speed Lever
Pressing the display selector switch (A) selects and
displays the settings on the cab display module (CDM) top
line read-out for each of the header controls.
Press switch (A) to scroll through settings.
Reel Position Switches
1009534
A
B
C
D
Figure 3.62: Ground Speed Selector
A - Reel Down B - Reel Forward
C - Reel Up D - Reel Aft
The functions performed by the reel position switches
depend on which header is attached and the cab display
module (CDM) programming.
• For functions related to double windrow attachment
(DWA) position, refer to:
– 4.4.10 Using the Double Windrowing Attachment,
page 213
• For functions related to reel fore-aft position and height
on draper headers, refer to:
– 4.6.2 Adjusting the Reel Fore-Aft Position, page
264
– 4.6.3 Adjusting the Reel Height, page 264
• For the center-link assist cylinder, refer to the section
appropriate for your header:
– 4.5.4 Attaching an A Series Header, page 232
– 4.5.2 Attaching a D Series or D1 SP Series Header, page 218
– 4.5.6 Attaching an R Series Header, page 248
NOTE:
For detailed switch operating modes, refer to the section in this manual, specific to your header.
