MacDon M205 - Installing Primary Air Filter

214603 320 Revision A
• Press on the fresh gasket to see if it springs back.
• Check the gasket for correct sizing. On a radial seal element, the gasket surface is the inside diameter of
the open end cap.
• Make sure the gasket is seating evenly. If the gasket is not forming a perfect seal, you will NOT have
protection.
• Ensure the sealing surface in the housing is clean, and the filter element is the correct model number. It may
be too short for the housing.
• Identify and rectify the cause of any leaks before replacing the filter element.
Installing Primary Air Filter
NOTE:
If replacing air filter, refer to 8.2.4 Filter Part Numbers, page 462.
1000099
A

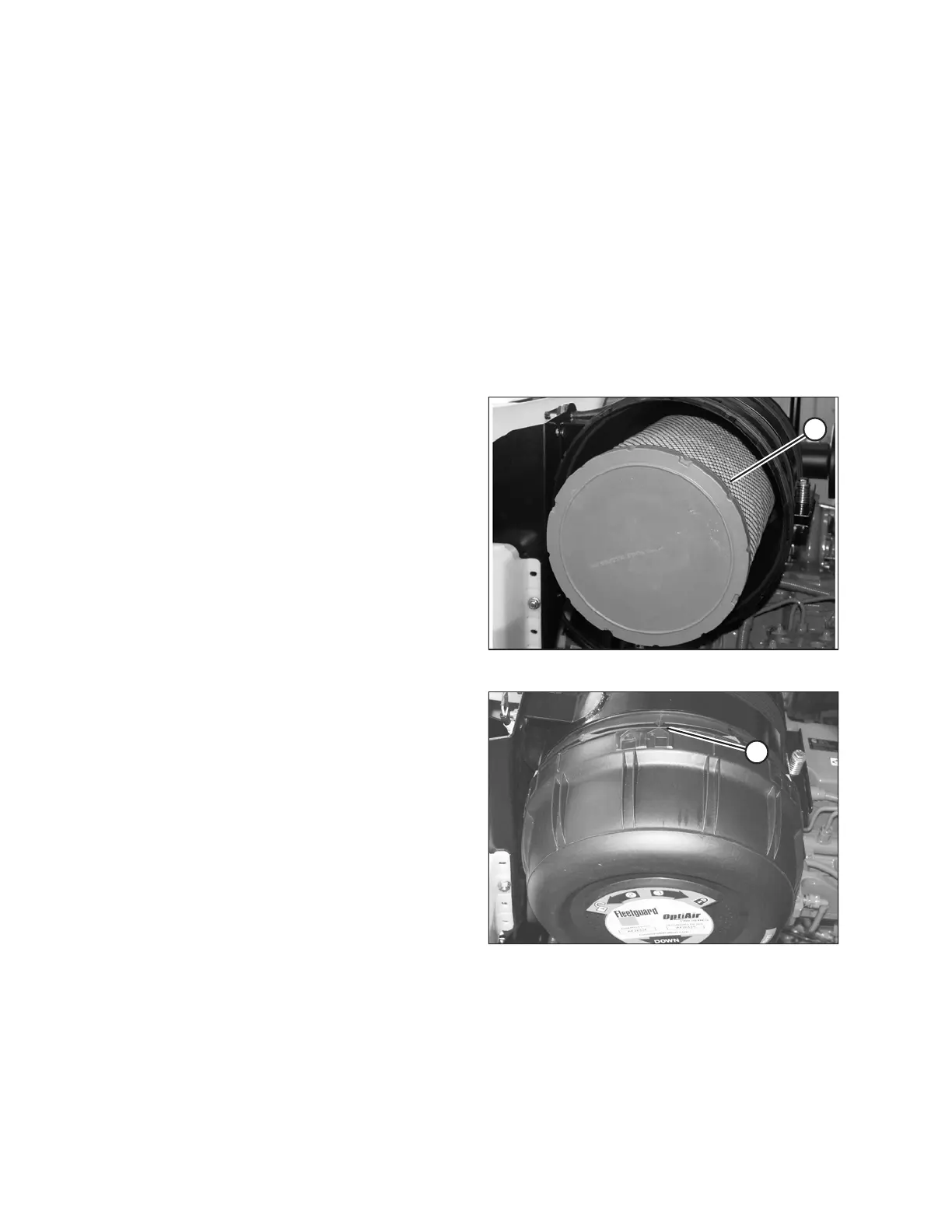

Figure 5.59: Primary Filter Element
1. Insert new primary filter element (A) into canister over
secondary element, and push into place, ensuring that
element is firmly seated in canister.
1000097
A
Figure 5.60: Engine Air Cleaner
2. Align arrow (A) with UNLOCK symbol on end cap, and
push end cap fully onto housing.
3. Rotate end cap clockwise until catch (A) engages
housing to prevent end cap from turning.
