5.4 Windrower Lubrication
WARNING
To avoid personal injury, before servicing windrower or opening drive covers, follow procedures in the
SAFETY chapter.

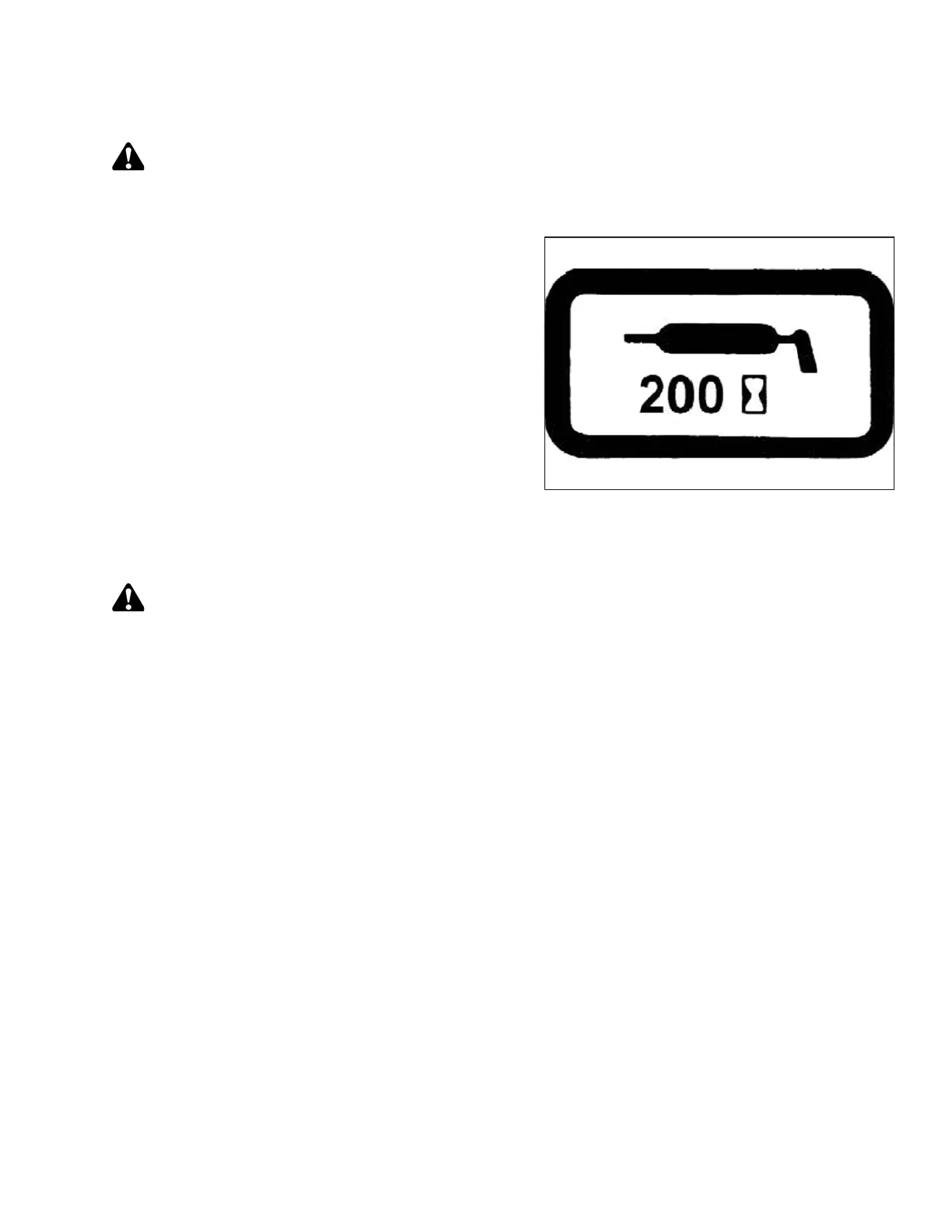

Figure 5.14: Lubrication Interval Decal
The greasing points are marked on the machine by decals
showing a grease gun and grease interval in hours of
operation.
Log hours of operation and use the Maintenance Checklist
provided to keep a record of scheduled maintenance. Refer
to 5.12.1 Maintenance Schedule/Record, page 415.
5.4.1 Lubricating the Windrower
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. To avoid injecting dirt and grit, wipe grease fitting with a clean cloth before greasing.
2. Inject grease through fitting with grease gun until grease overflows fitting, except where noted. Refer to 8.2.3
Lubricants, Fluids, and System Capacities, page 461.
3. Leave excess grease on fitting to keep out dirt.
4. Replace any loose or broken fittings immediately.
5. If fitting will NOT take grease, remove and clean thoroughly. Also clean lubricant passageway. Replace fitting
if necessary.
