MacDon M205 - Displaying Reel Speed

214603 104 Revision A
Displaying Reel Speed
NOTE:
• This procedure is for draper and auger headers. It does not apply to rotary disc headers.
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 217.
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

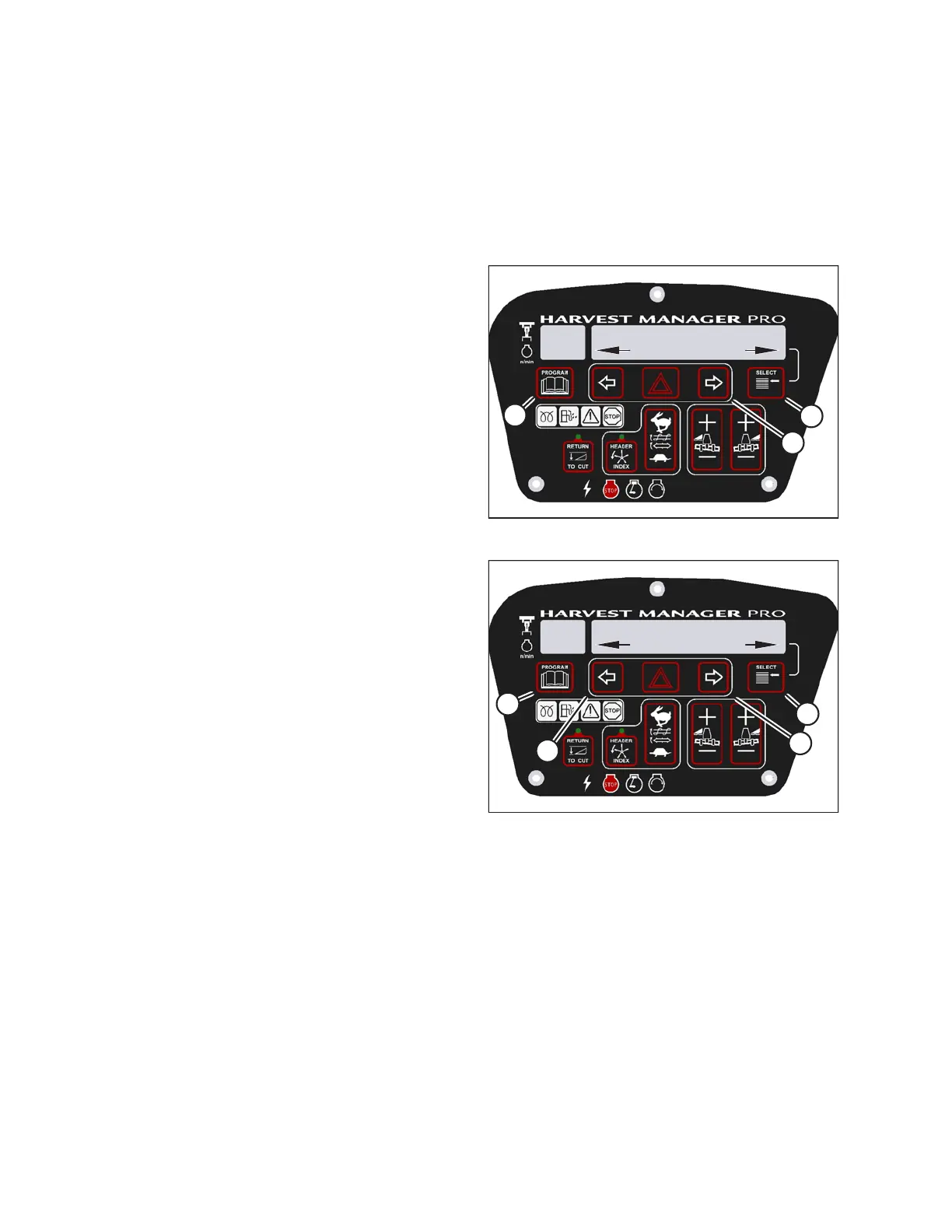

Figure 3.98: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on CDM to
enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1009999
HEADER REEL SPEED
RPM/MPH
C###
X###
D
C
B
A
Figure 3.99: M205 Reel Speed Display
4. Press SELECT (D) until HEADER REEL SPEED? is
displayed on the upper line.
• RPM/MPH or RPM/KPH is displayed on the
lower line.
5. Press left (B) or right (C) arrow to select either
IMPERIAL or METRIC units. Press SELECT (D).
6. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
OPERATOR’S STATION
