MacDon M205 - Setting Draper Speed Independent of Ground Speed

214603 270 Revision A
3. Press DISPLAY SELECTOR (E) on the ground speed lever (GSL) to display DRAPER INDX
22
at (A) on the cab
display module (CDM).
4. Press DRAPER FAST (C) or SLOW (D) on the CDM until display (A) shows ##.## ##.# DRAP IND with the
desired index value.
• The displayed value (##.##) = draper speed (mph or km/h
23
)
• The displayed value (##.#) = the index value
Examples:
• Windrower is operating at 13 km/h (8 mph) with header index ON and set at 1.5.
Display shows: 9.5 1.5 DRAP INDX where 9.5 (8 + 1.5) is the draper speed in mph and 1.5 is the header index
setting.
• Windrower speed drops to 12 km/h (7.5 mph) at same header index setting.
Display shows: 9.0 1.5 DRAP INDX where 9.0 (7.5 + 1.5) is the draper speed in mph and 1.5 is the header
index setting.
• Windrower is operating at 13 km/h (8 mph) with header index ON and set at 0.9.
Display shows: 8.9 0.9 DRAP INDX where 8.9 (8 + 0.9) is the draper speed in mph and 0.9 is the header index
setting.
Setting Draper Speed Independent of Ground Speed

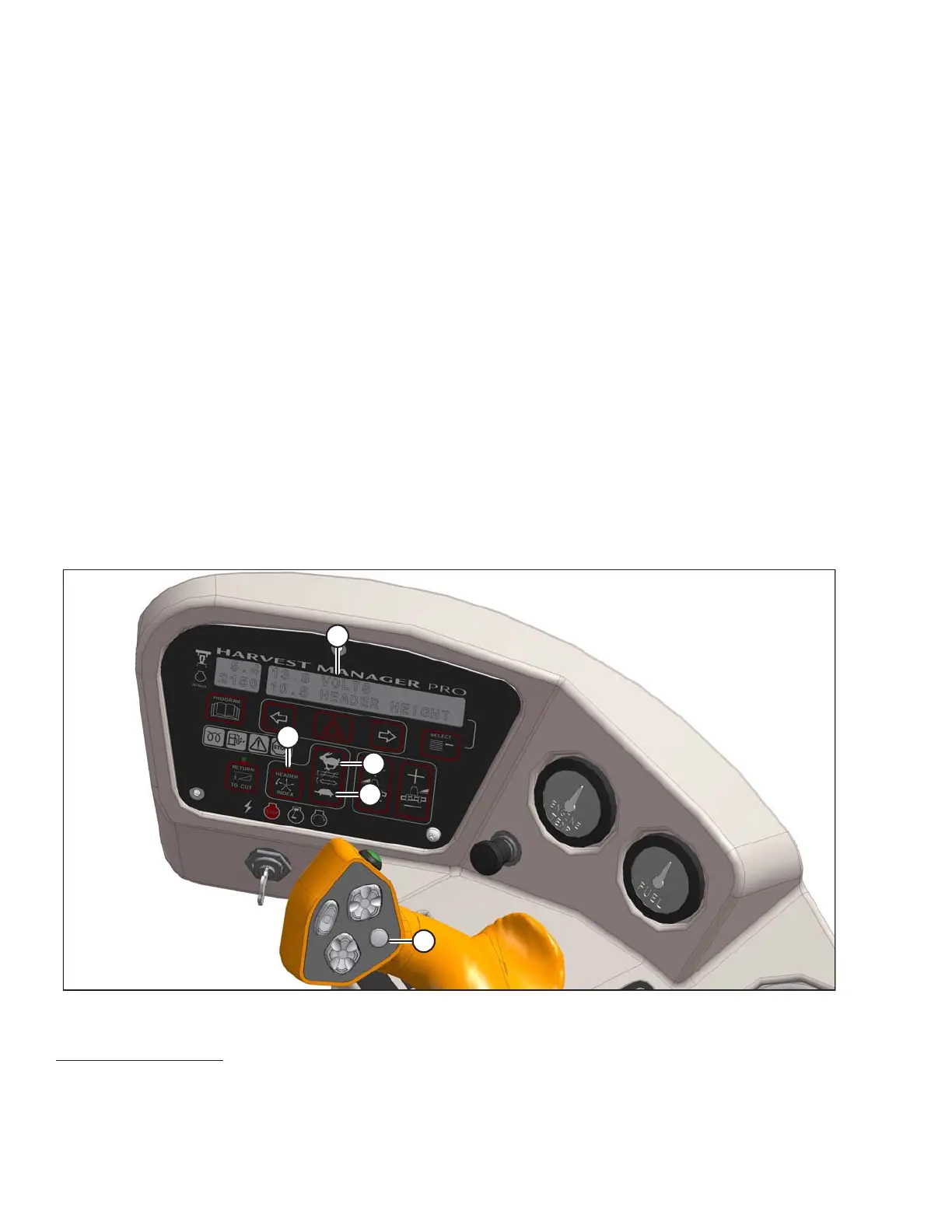

Figure 4.227: Operator Console
1000793
A
B
C
D
E
OPERATION
22. DRAPER INDX will only be displayed when operating at a ground speed faster than minimum draper speed
plus the header index value.
23. Depending on CDM programming.
