MacDon M205 - Setting the Windrowers Tire Size

214603 105 Revision A
Setting the Windrower’s Tire Size
1009974
C###
X###
WINDROWER SETUP?
NO/YES
A
B
C

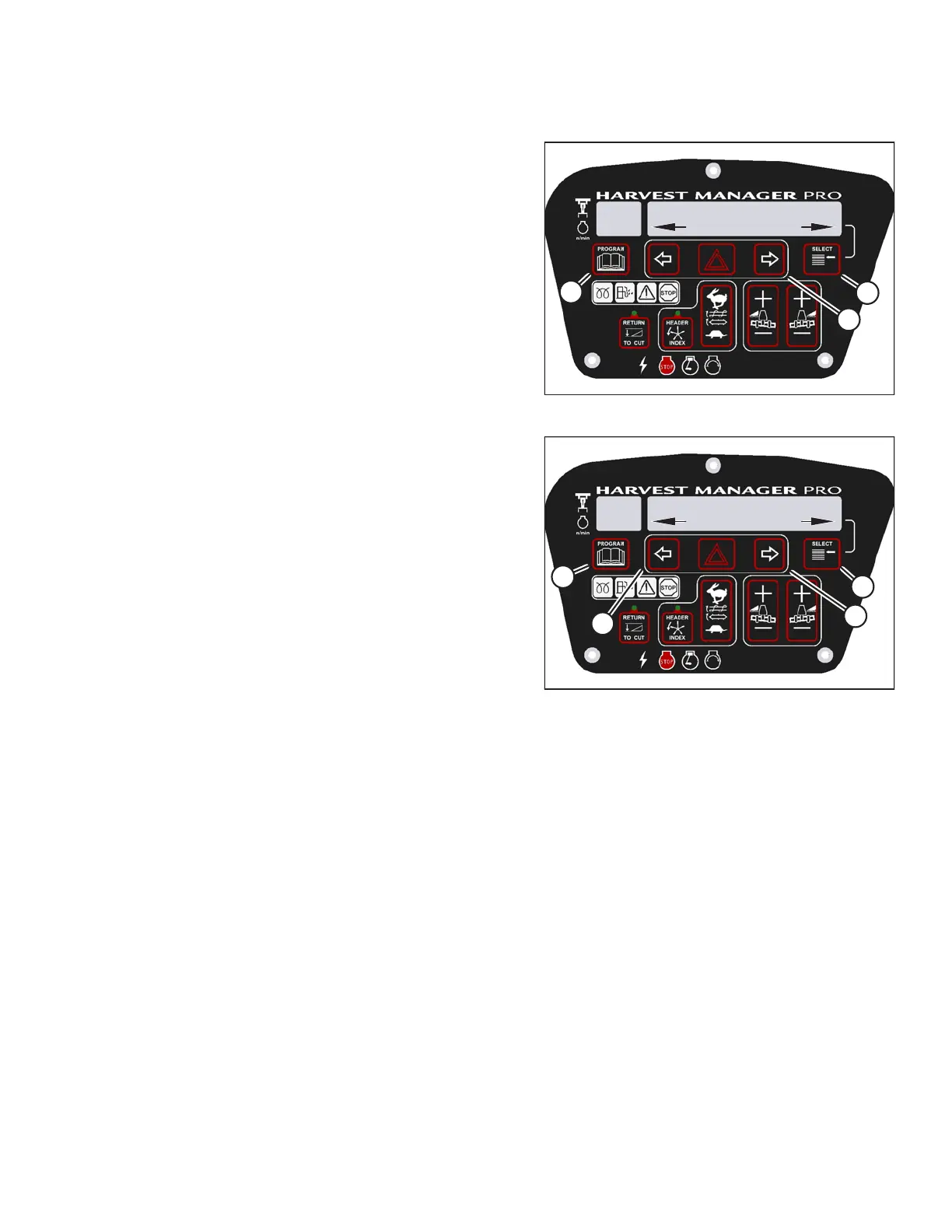

Figure 3.100: M205 CDM Programming Buttons
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter programming mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right arrow (B) to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
1010000
SET TIRE SIZE?
18.4 X 26 TURF
C###
X###
D
C
B
A
Figure 3.101: M205 Tire Size
4. Press SELECT (D) until SET TIRE SIZE? is displayed
on the upper line.
• Currently installed tire size is displayed on the
lower line.
NOTE:
The following tire sizes are available:
• 18.4 x 26 TURF
• 18.4 x 26 BAR
• 23.1 x 26 TURF
• 600 – 65 R28
5. Press left (B) or right (C) arrow and select tire size.
Press SELECT (D).
6. Press PROGRAM (A) to exit programming mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.
OPERATOR’S STATION
